ZTTO M1 148 BOOST Hub Ratchet 28 Hole 54T HG XD MS Body 110x15 148x12 Thru Axle 28h Center Rotor lock Disc Brake Hub

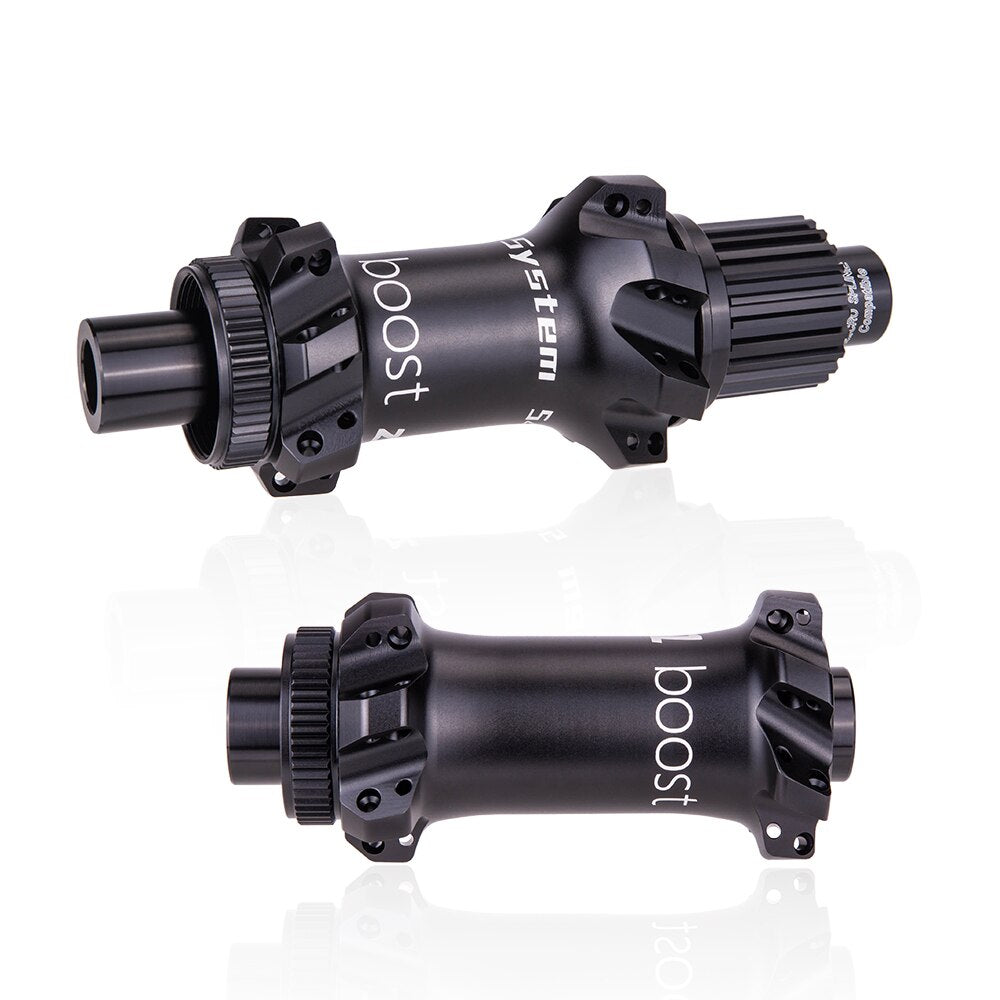

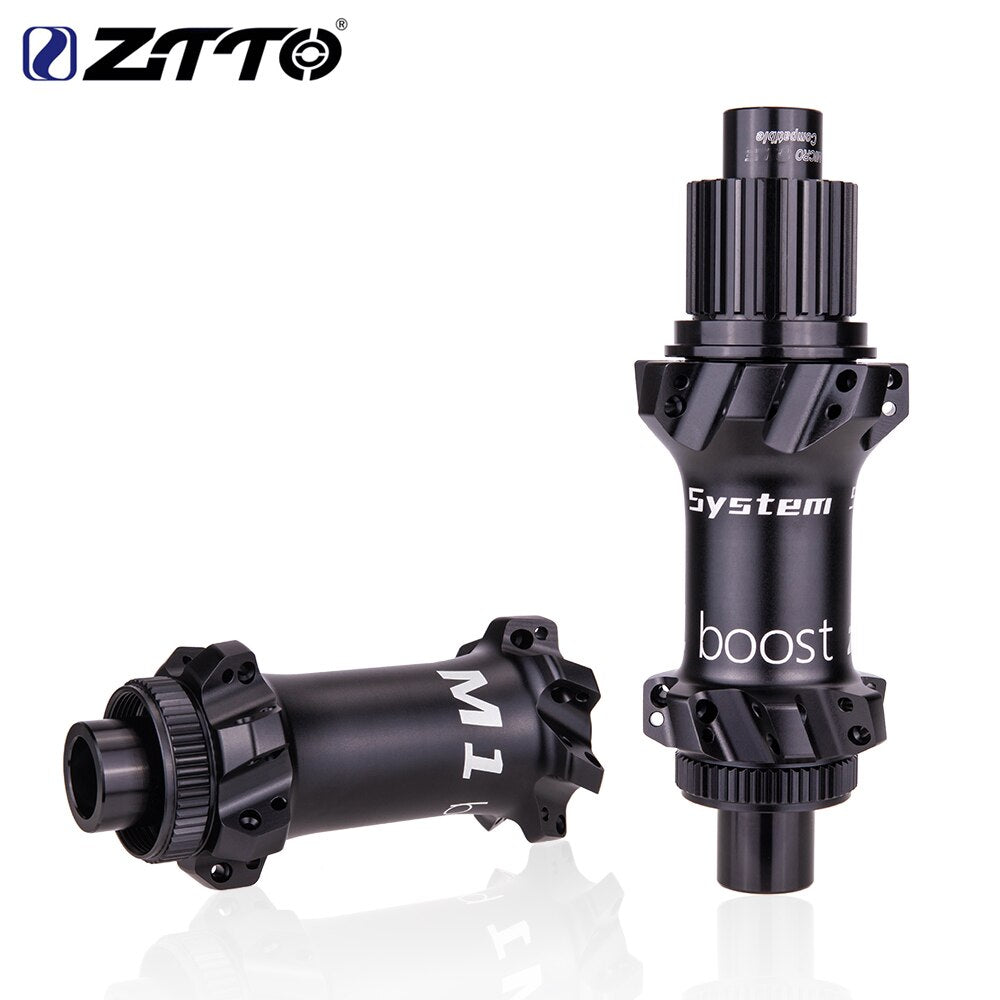

ZTTO M1 Ultralight BOOST Straightpull 28 hole MTB Hub

Ratchet system 54T
XD/ HG/ MS
28 holes , Max for 2.3mm spokes

Weight: Front-Hub 138g ;
Rear-Hub 250g(HG)/231g(XD) /239g(MS)

Material : Strengthen 7075 axle, Forging 6082 alloy shell CNC made

Quick Release NOT Included

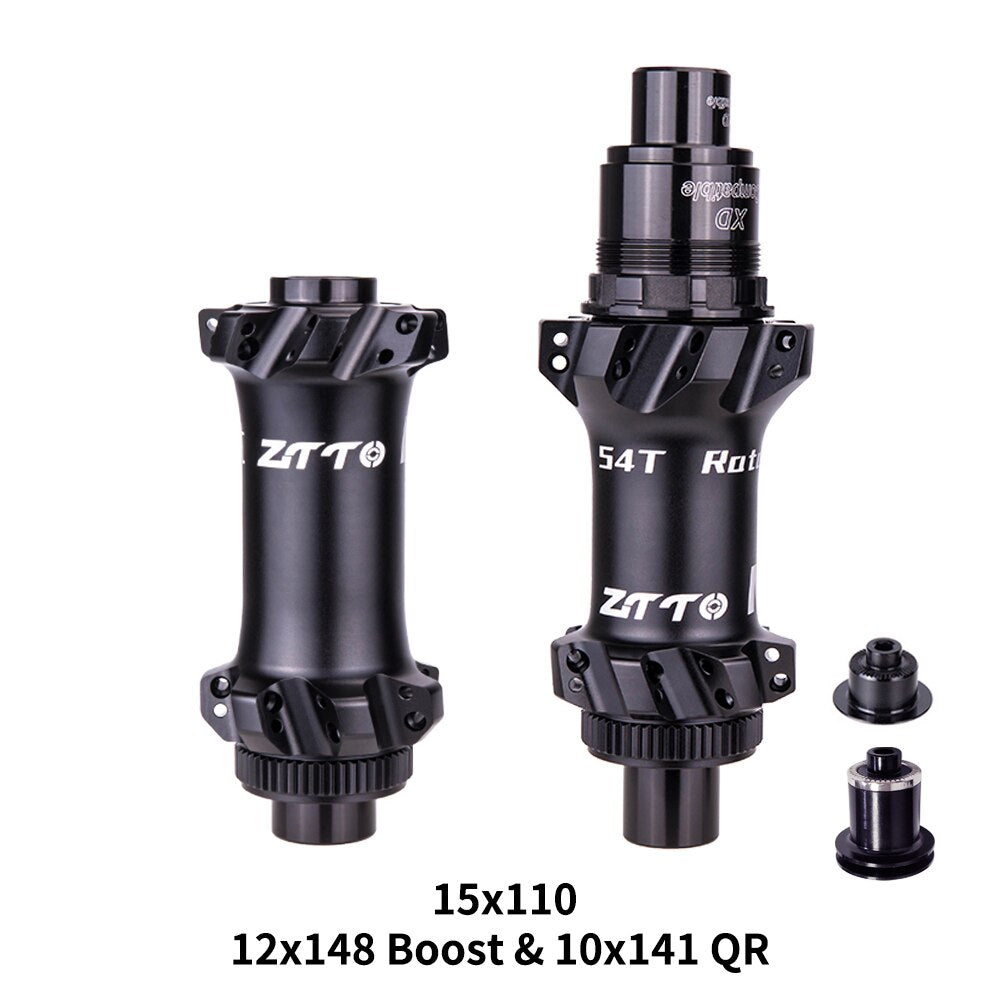

Front 15x110

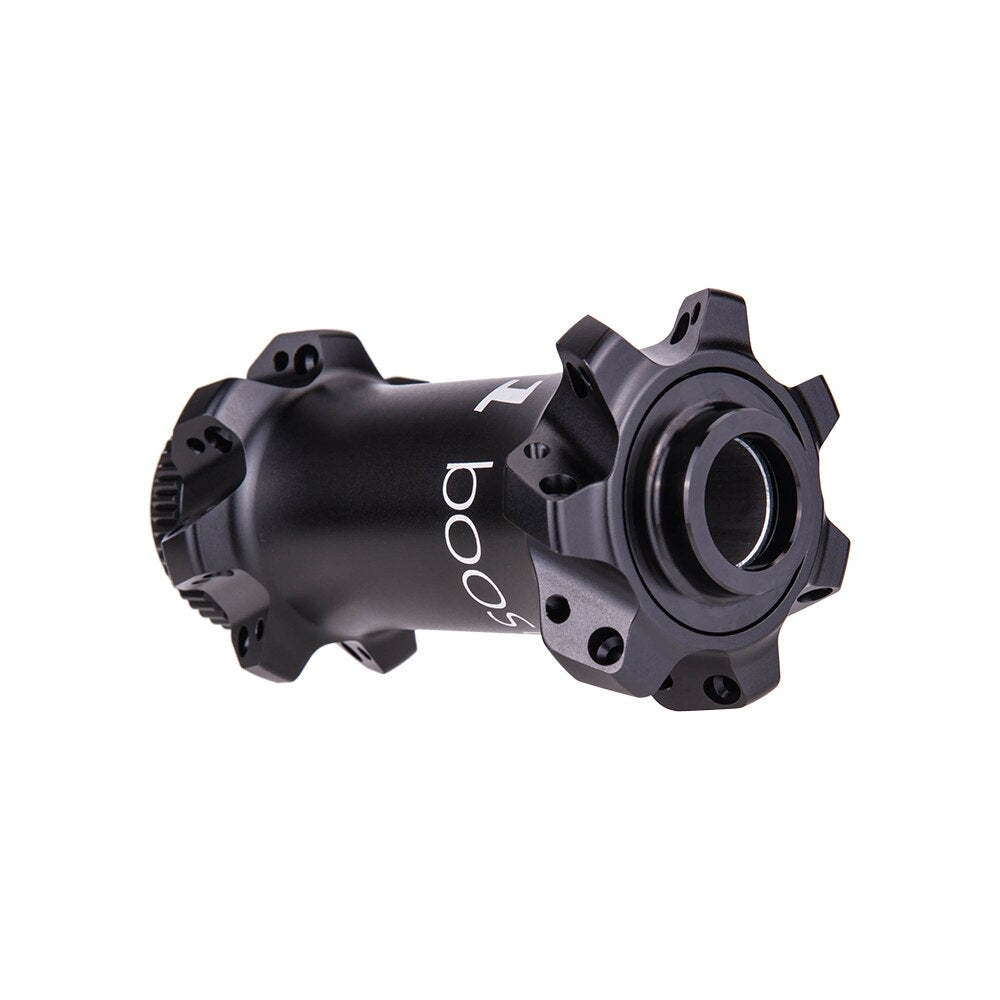

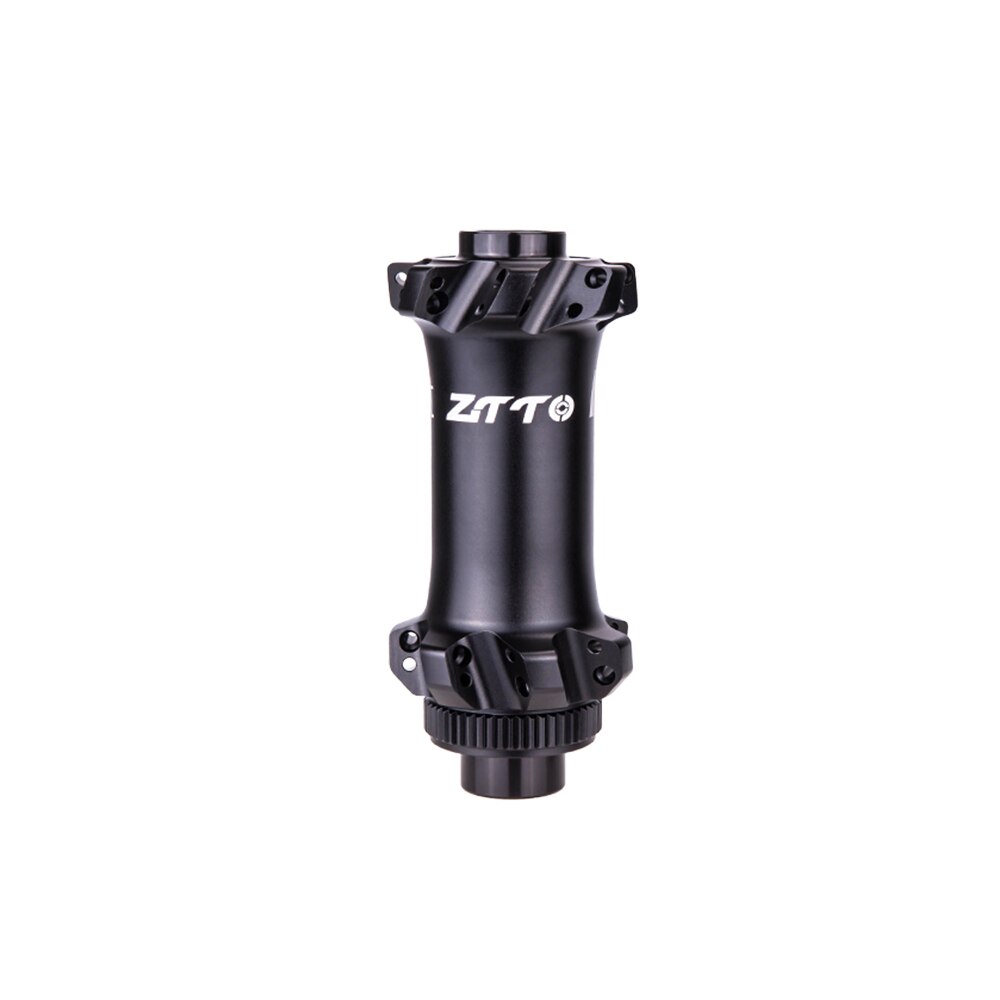

Front Hub for 15x110mm ONLY

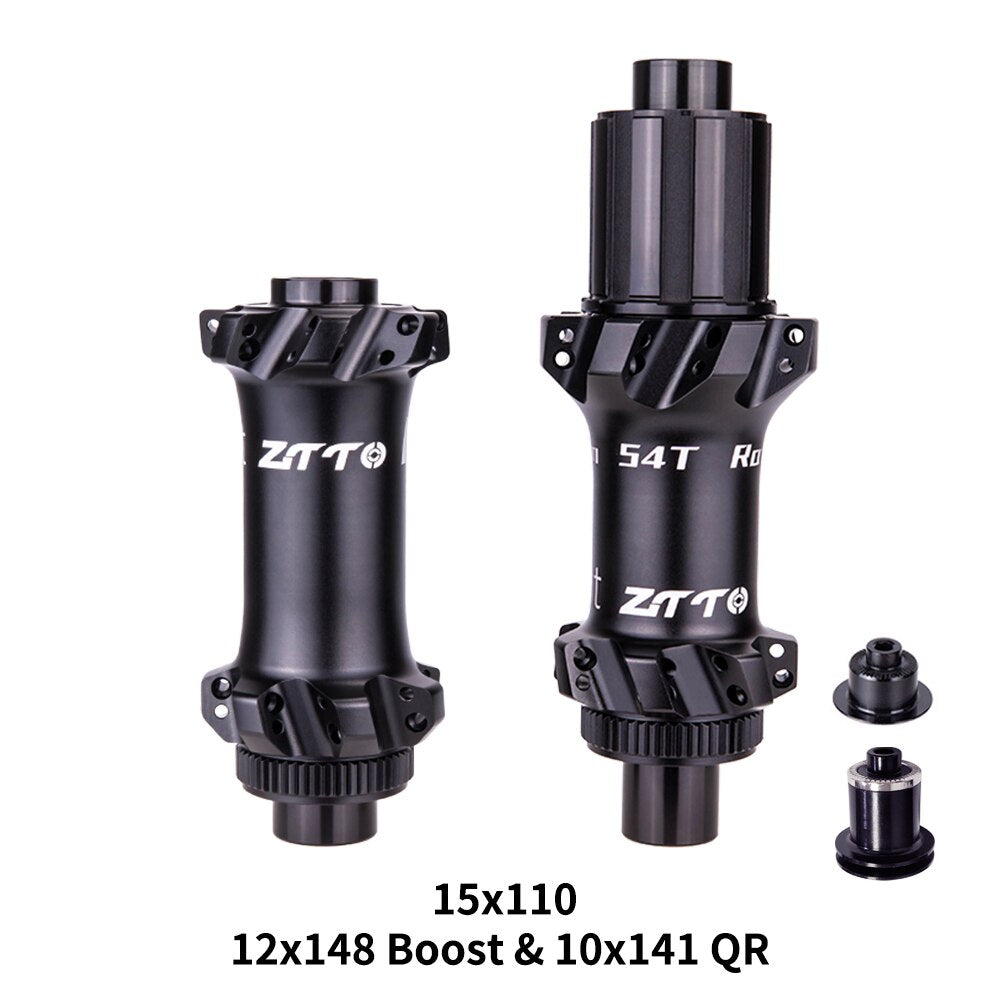

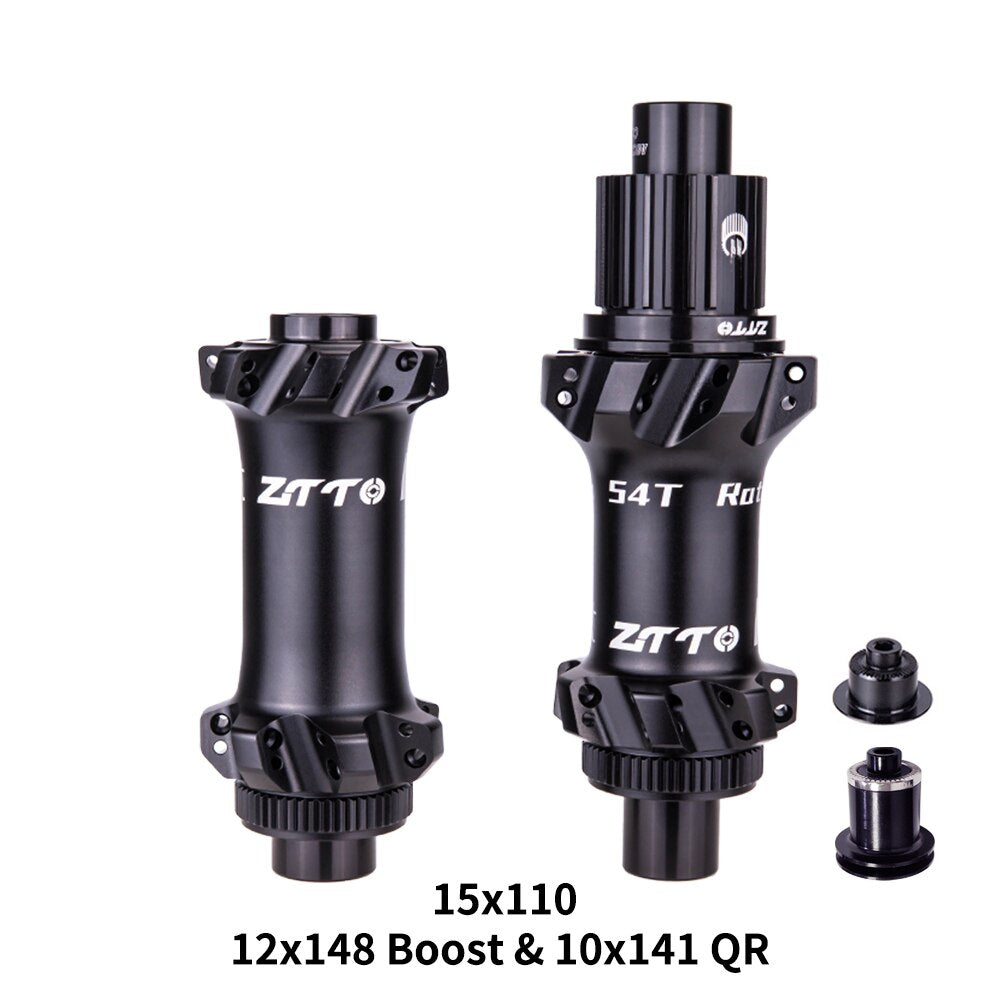

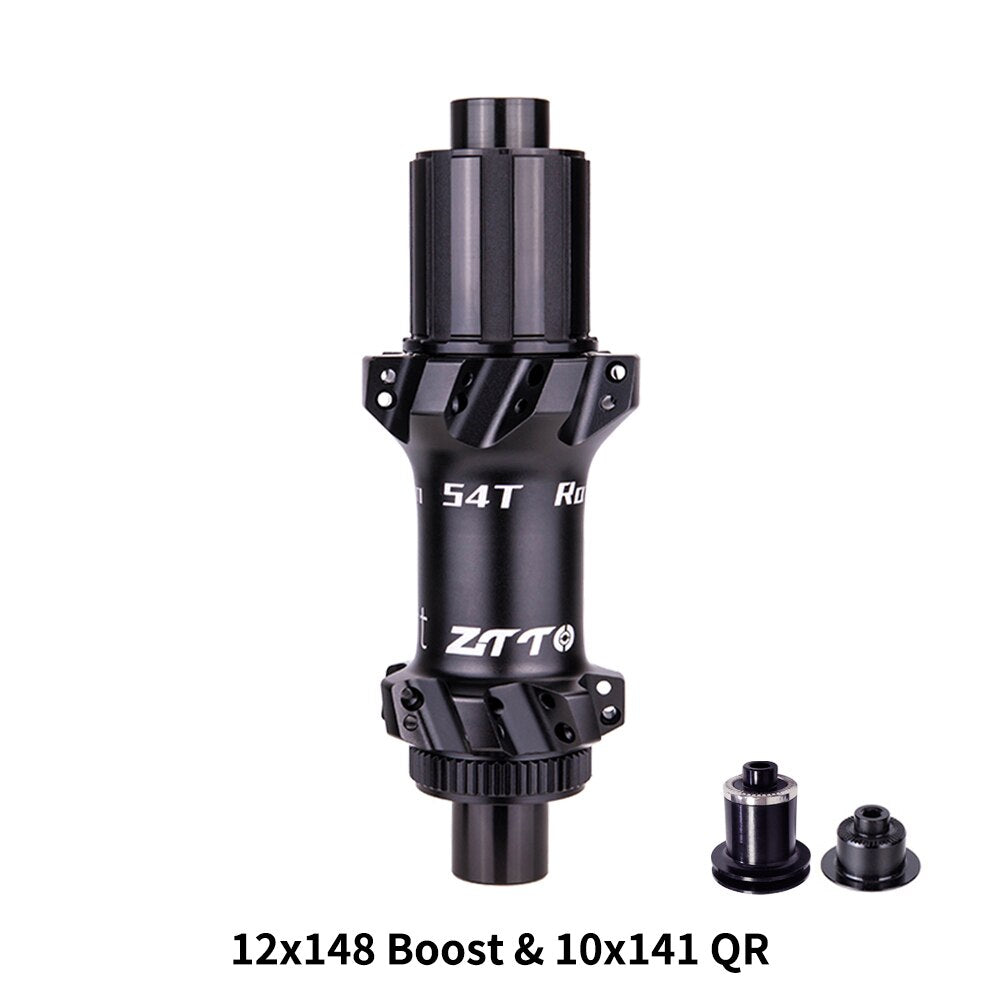

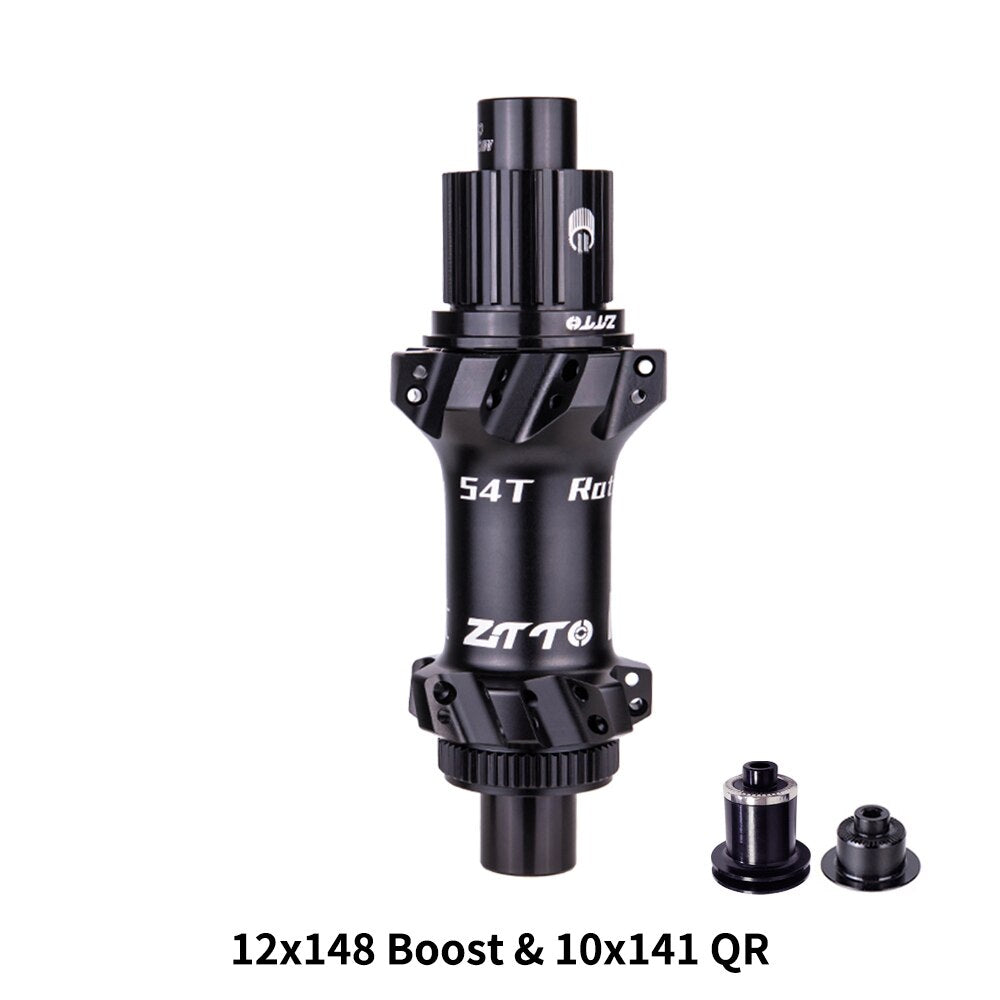

Rear 12x148/ 10x141

Rear Hub for 10x135mm / 12x142mm (you will get 1 hub and 4 plugs, 2 plugs for 10mm; 2 plugs for 12mm)

All cassette compatible

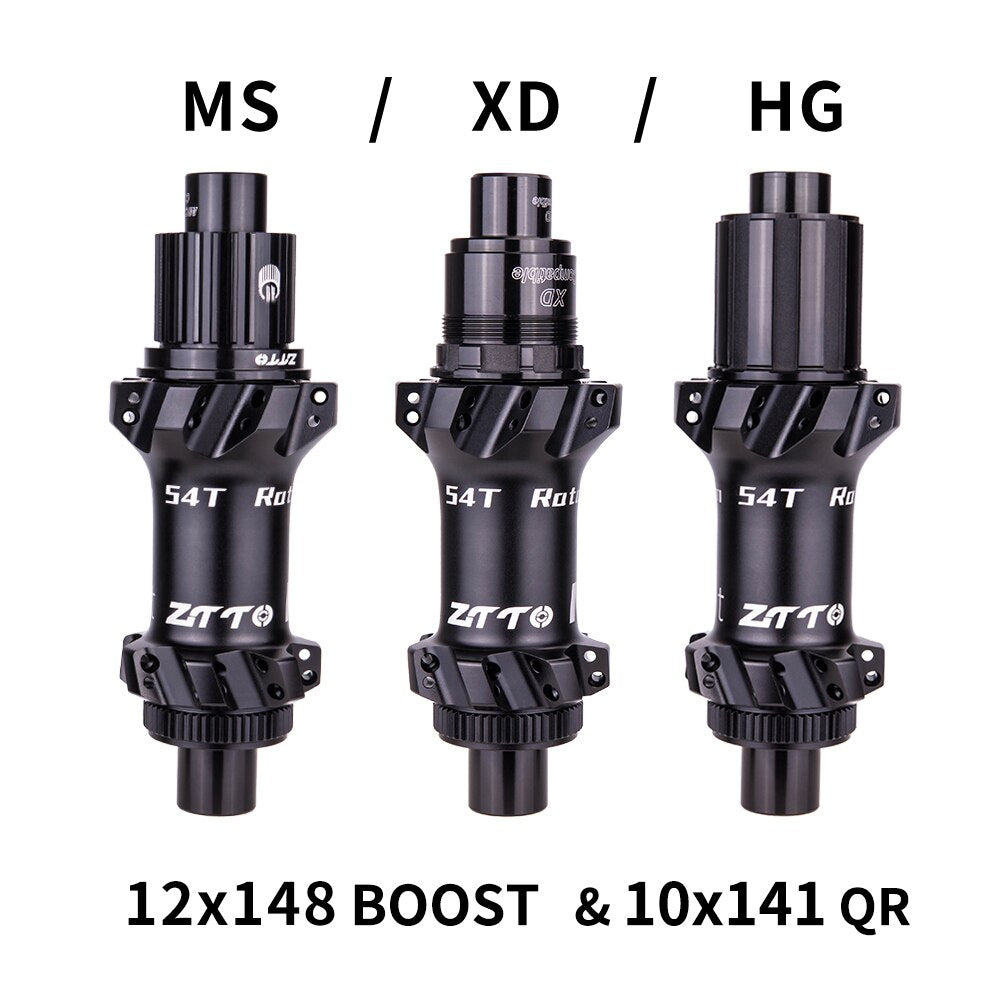

The rear hub has XD/HG/MS optional . you can install any MTB cassette with this hub. if you need road bike 11speed HG or CP hub body, please contact us and mark on your order.

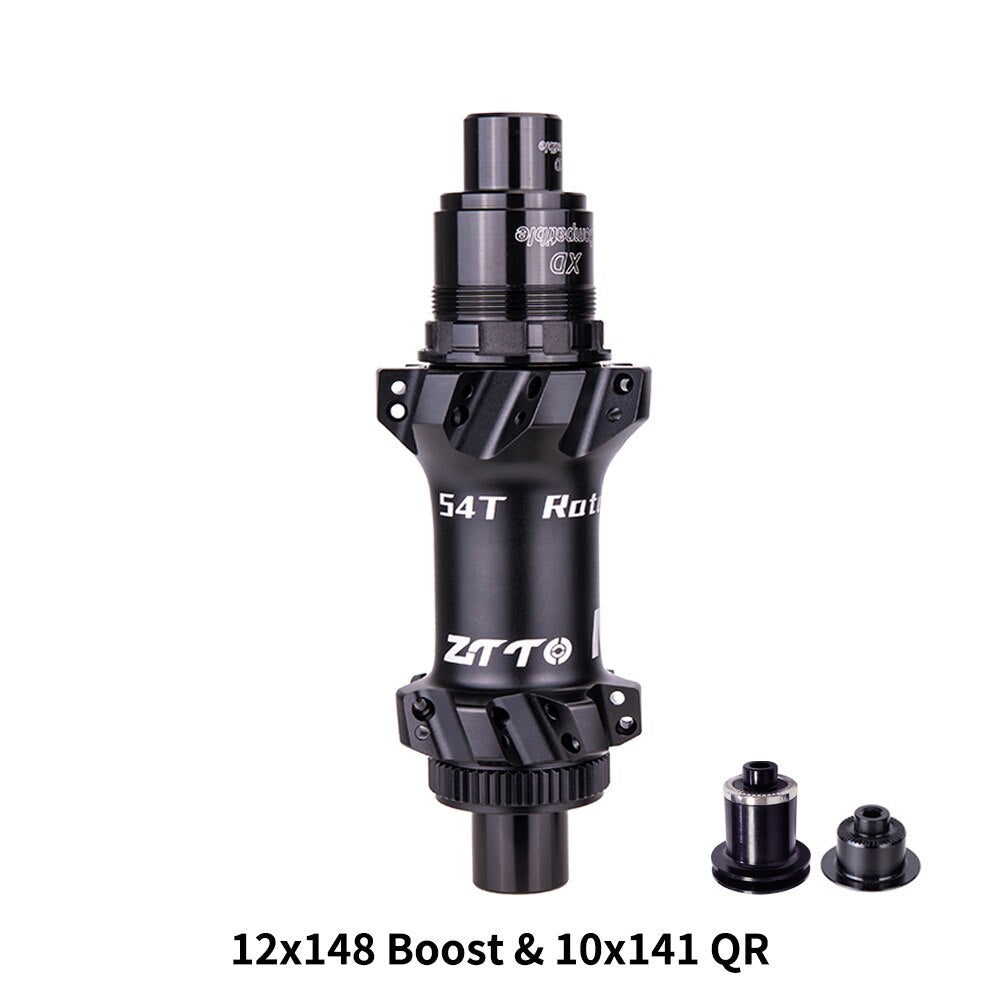

XD for 11 and 12s GX/XO1/XX1

Cassettes: CS-XG-1150-A1 / CS-XG-795-A1 / CS-XG-795-A1 / CS-XG-1195-A1 / CS-XG-1175-A1 / CS-XG-1295-A / CS-XG-1299-A1 / CS-XG-1199-A1 / CS-XG-1275-A1 / CS-XG-1295-A2 / CS-XG-1299-A2 / ZTTO 9-50T

HG for M6000/M7000/M8000/SX/NX

Most of MTB cassettes 7-11 speeds cassette.
11 speed cassettes : M6000~9000 series. CS-PG-1130-A1,
12 speed cassettes: CS-PG-1210-A1 / CS-PG-1230-A1.
(When using a 7-speed cassette, a 4.5mm spacer is required.)

MS for M9100/M8100/M7100/M6100

Cassettes: CS-M9100-12 / CS-M8100-12 / CS-M7100-12

54T Ratchet System

Ratchets The best system to transfer torque at the lowest weight.

54 T / 6.6° engagement

Spoke length for reference

M1 with ERD 596
Front brake side:300 other side:302
Rear brake side:302 driver side:300

M1 with ERD 562
Front brake side: 283 other side: 285
Rear brake side: 285 driver side: 283

M1 with ERD 583
Front brake side: 294 other side: 296
Rear brake side: 296 driver side: 294

M1 with ERD 589
Front brake side: 297 other side: 299
Rear brake side: 299 driver side: 297

M1 with ERD 559
Front brake side: 282 other side: 284
Rear brake side: 284 driver side: 282

M1 with ERD 602
Front brake side:303 other side:305
Rear brake side:305 driver side:303

Ultralight

about 380g for pair. Alloy rotor bodies Lightweight and anodized. Super smooth surface finish of the contact area for the high precision, low friction rotary seal
