ZTTO MTB 4 Piston Hydraulic Disc Brake M840 With Cooling Full Meatal Pad CNC Tech Mineral Oil For AM Enduro Bicycle E4 ZEE M8120
ZTTO MTB 4 Piston Hydraulic Disc Brake M840 With Cooling Full Meatal Pad CNC Tech Mineral Oil For AM Enduro Bicycle E4 ZEE M8120

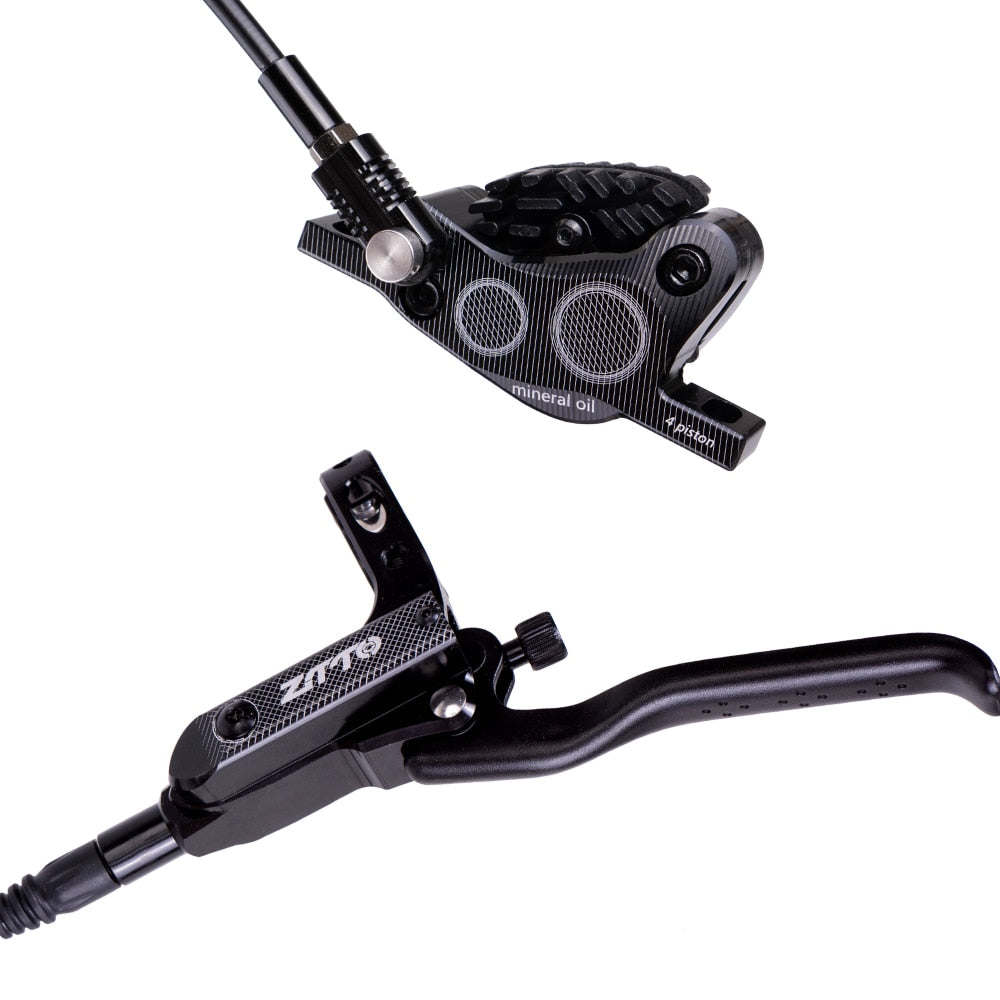

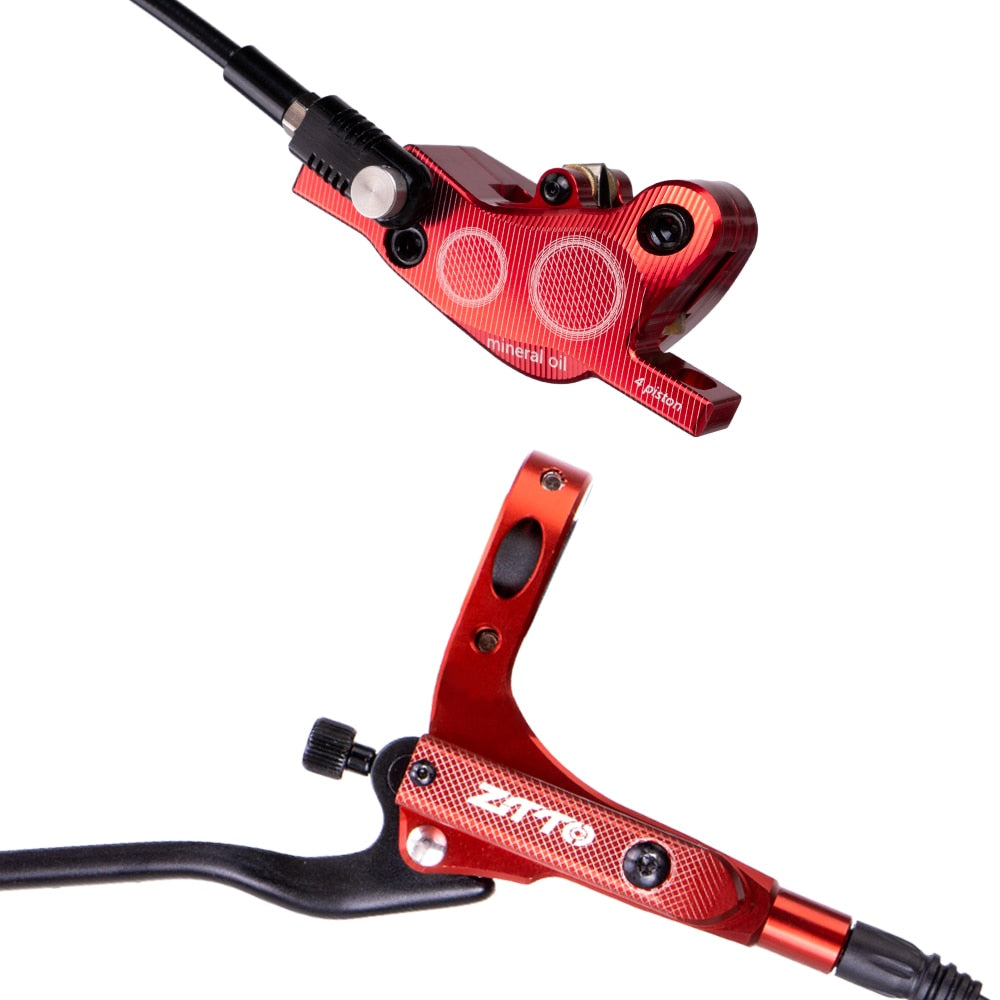

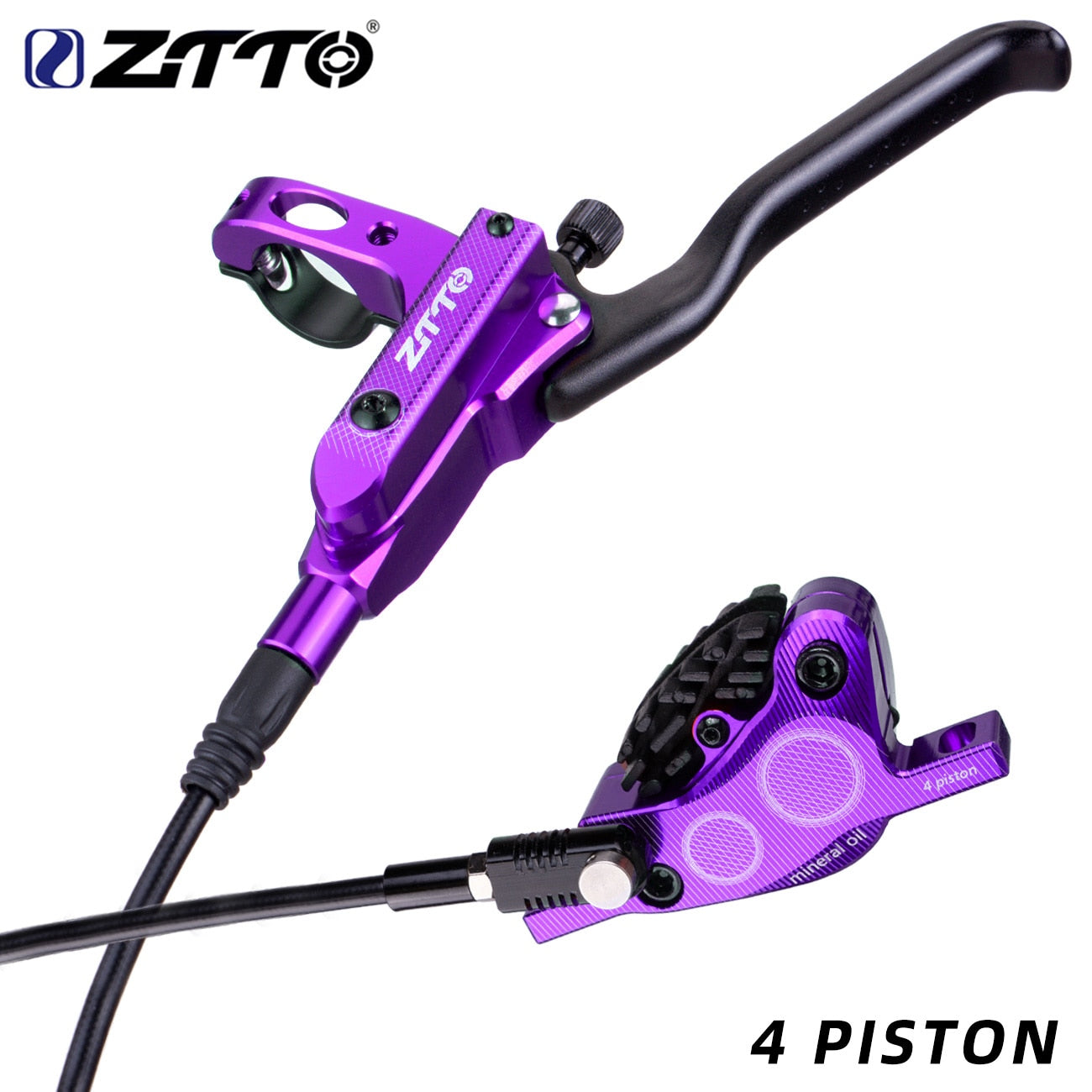

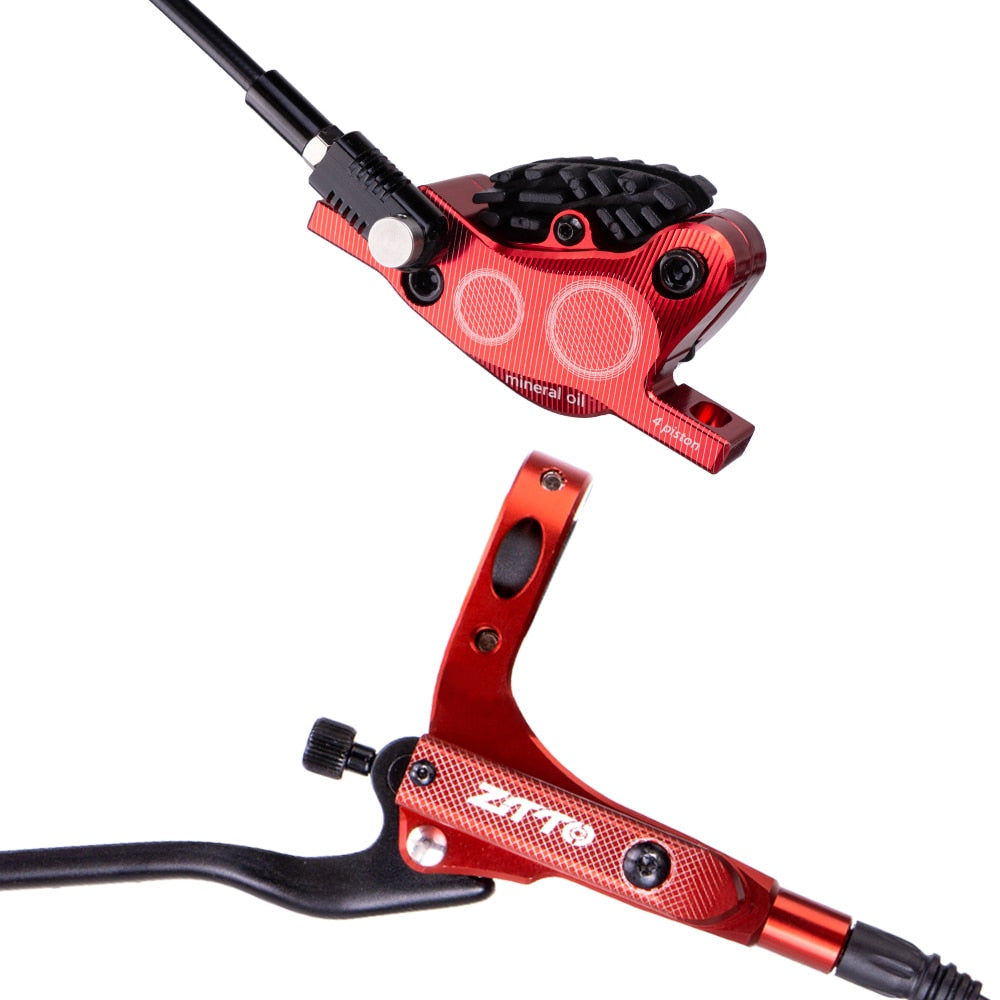

ZTTO CNC Tech MTB 4 Piston Hydraulic Disc Brake M840
Left for front / Right for Rear
weight : Front about 263g, Rear about 279g , 542g/pair
package included
Brake + IS to PM 160 Adapter + spare Bh59 Needle + Screws
if you want brake rotors, please buy the rotor option together.
Oil/oil needle: mineral oil
Bh59
Fit 51 mm IS & 74mm post mounting

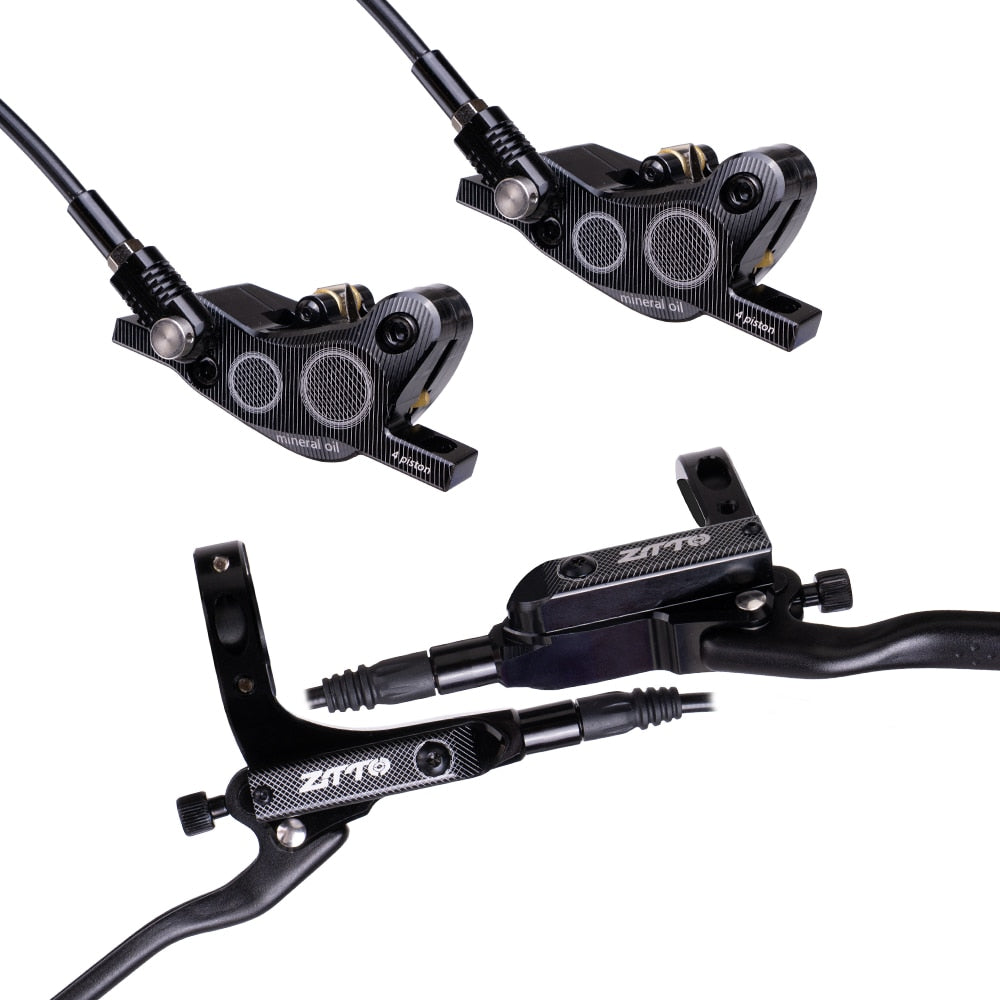

Left lever for front wheel. Right lever for rear wheel.
Left lever for front wheel.
Right lever for rear wheel.
Front brake hose length :800mm
Rear brake hose length:1450mm
2022/05 New Upgrade:
1. Adjusted the angle of the brake lever, it is now more comfortable to hold.
2. The special model oil needle on the brake side is gone, replaced by the common BH59. So don't worry about the trouble of replacing the hose.and the oil cooler is still there :)
Since the above upgrades did not significantly change the appearance, so we did not change the picture yet, thank you for your understanding

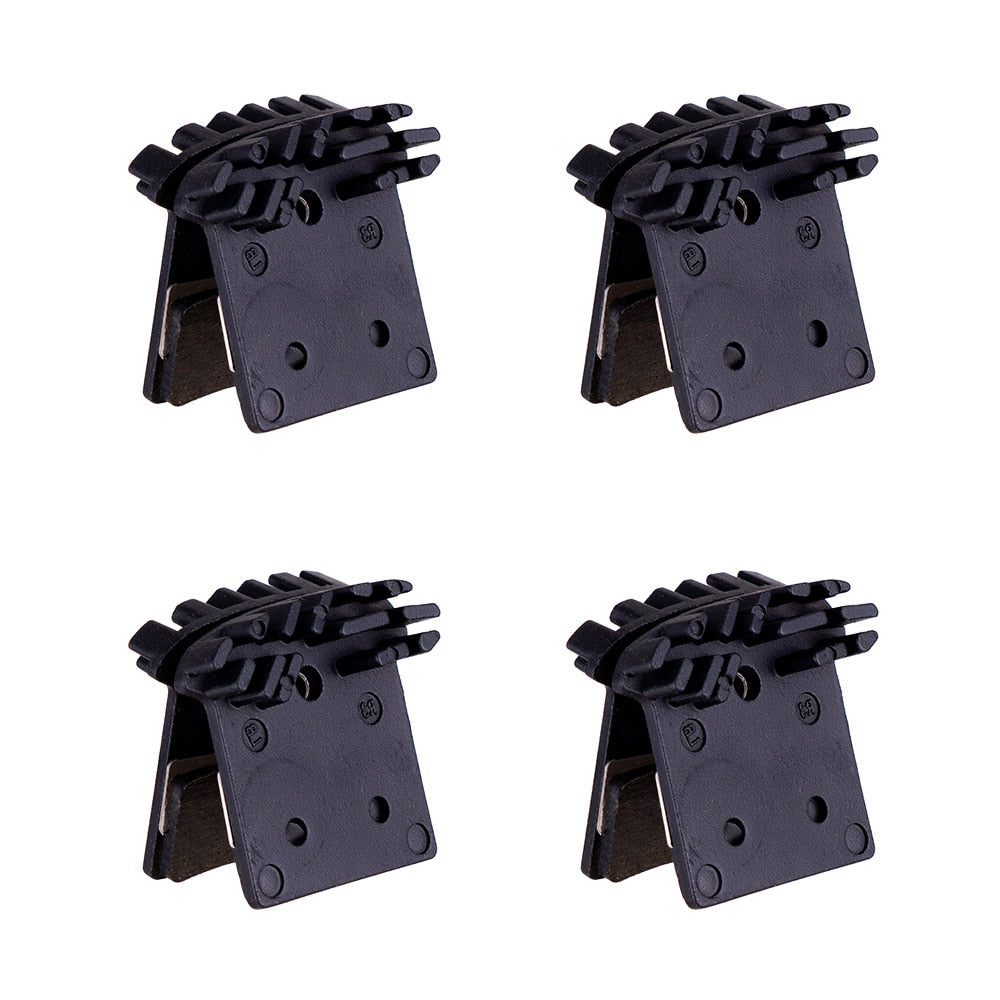

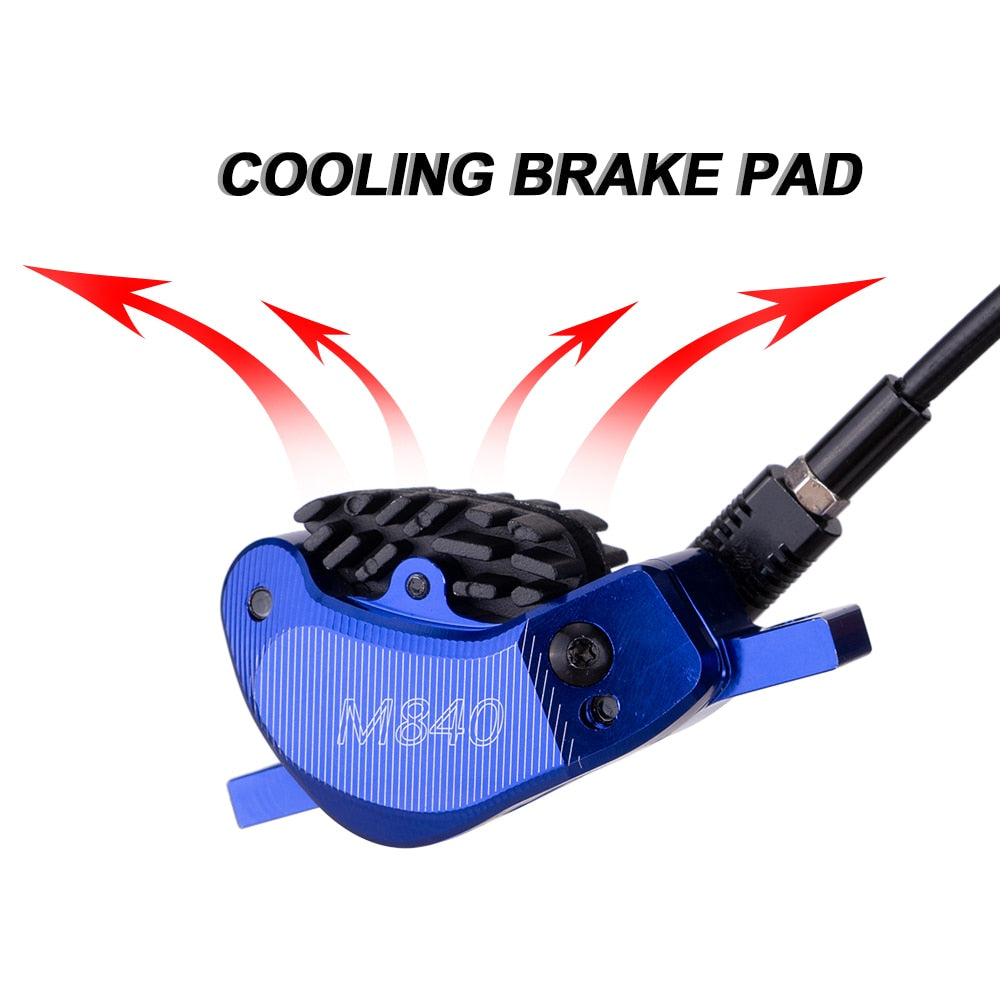

Cooling Brake Pad Available
We have cooling brake pad version can be choose, cooling brake pad was helpful for a long time brake use, cooling down faster than normal version, save brake life time and better performance

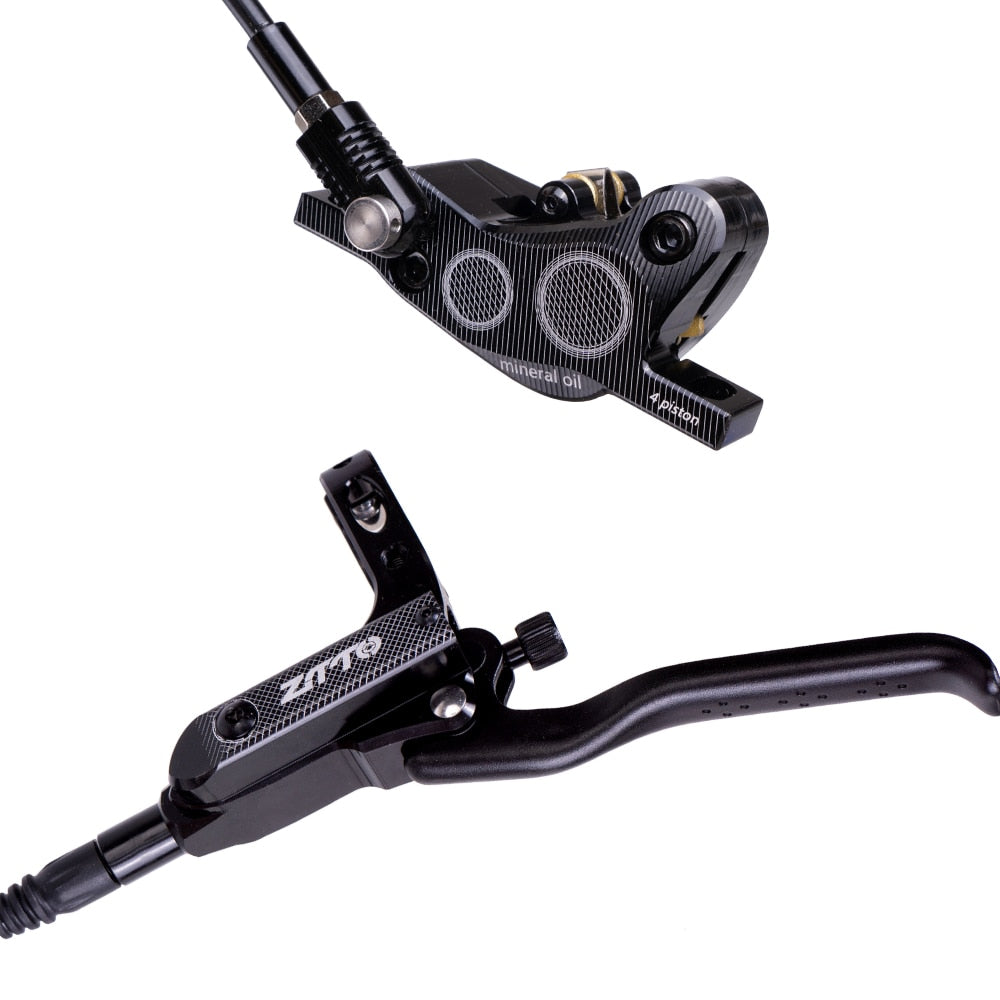

Original Full Metal Pads-same as XT pads- MJ-01F/ G01S/ J03A
There are many benefits of full metal pads, greater braking force, stronger heat resistance, stable braking force regardless of sunny or rainy days,But because it is harder, it takes a period of running-in before it can work normally. At the beginning, the braking force is small which is normal, it will get bigger and bigger. And a slight braking sound is normal for metal pads.

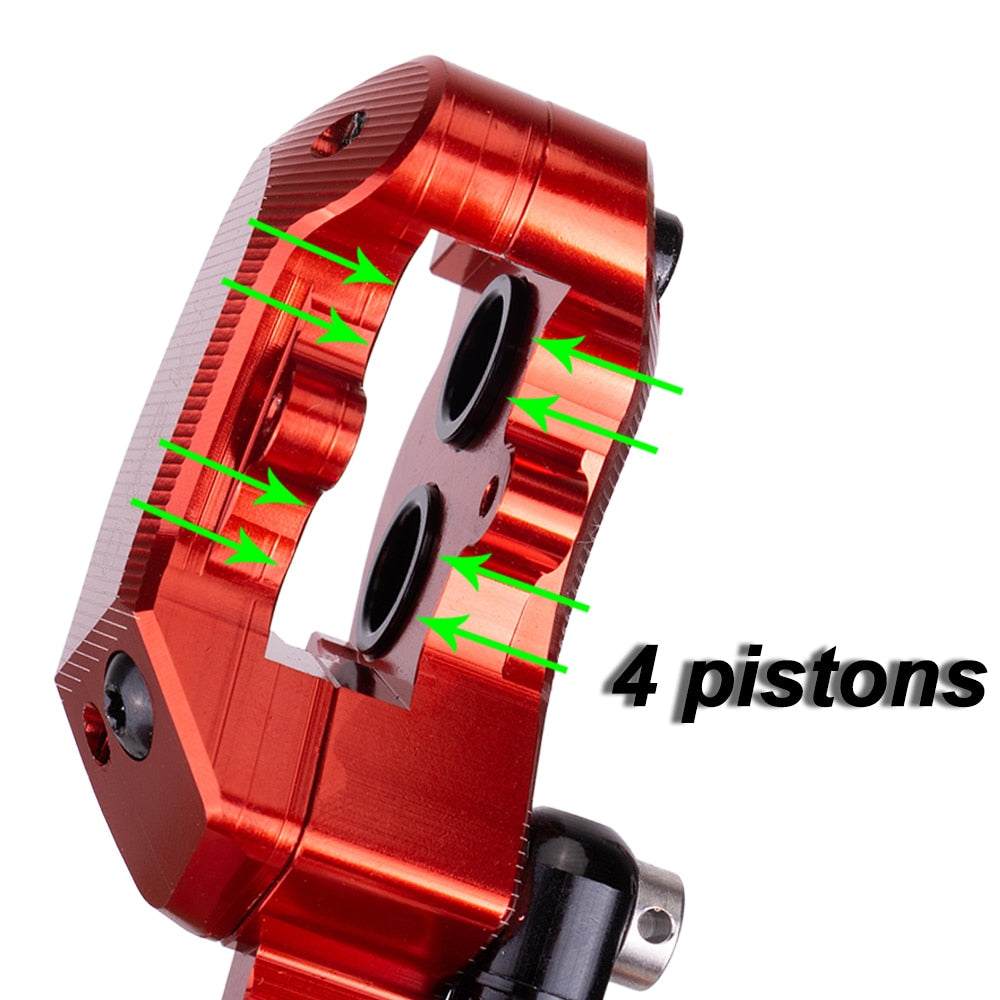

4 Metal Pistons
Upgrade 4x14mm pistons caliper structure, it's make the brake pads more balanced and create more brake force. The piston is made of aluminum alloy, it's strong and has excellent heat resistance.
Cooling Connecter
Heat control is very important for stable performance, after using all-aluminum brake and heat sink pads , we even made a cooling fins for the tubing! This is a great invention. these fin will cooling the oil directly!

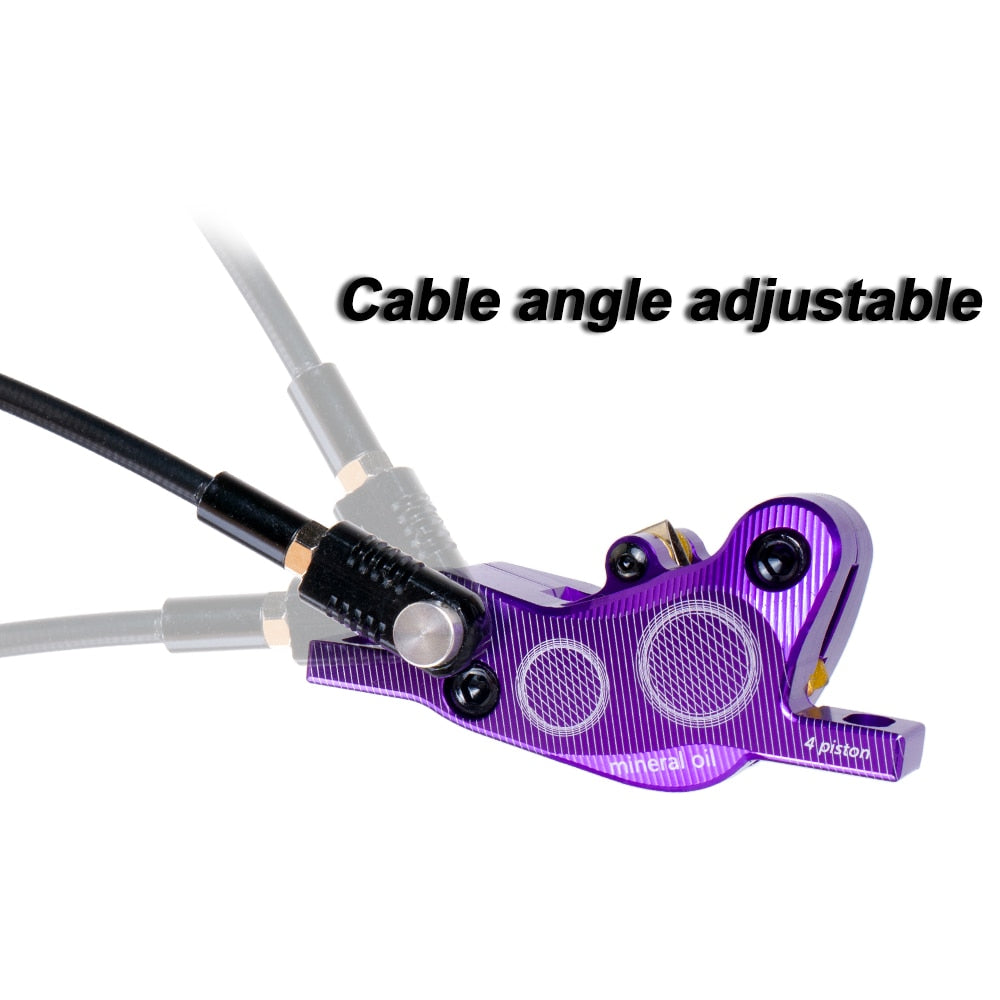

Cable Angle adjustable
Caliper hose connecter was rotatable, there is no repression like fixed cable.
Pad Contact Point Adjustment
An advanced feature, you may have to spend hundreds of dollars to get it in other brands. but we made it in this price :)
Required small fingers strength, but big brake force, feel relaxed in the long downhill, Brake performance is not affected by weather changes, still stable, not easy to be affected by soil or rain.
ZTTO Cylinder Ratio and Brake Linearity
The brake equired strength is small, in the long downhill, fingers and arms are not easy to feel tired.Brake performance is not affected by weather changes, still stable, not easy to be affected by soil or rain.

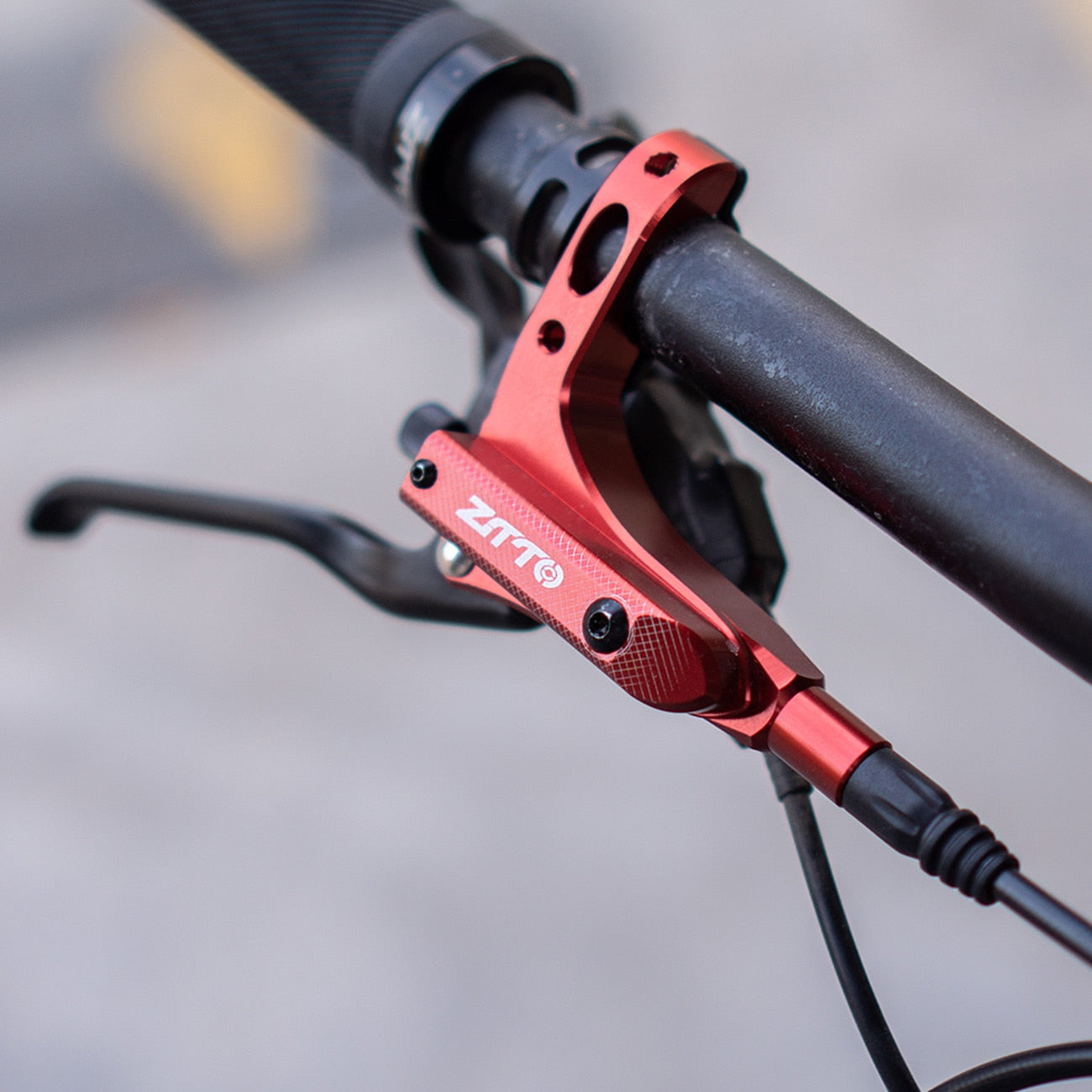

Quickly Install Clamp
so you don't need to remove the grips and shifter befroe install the brake.
Left lever for front wheel. Right lever for rear wheel.

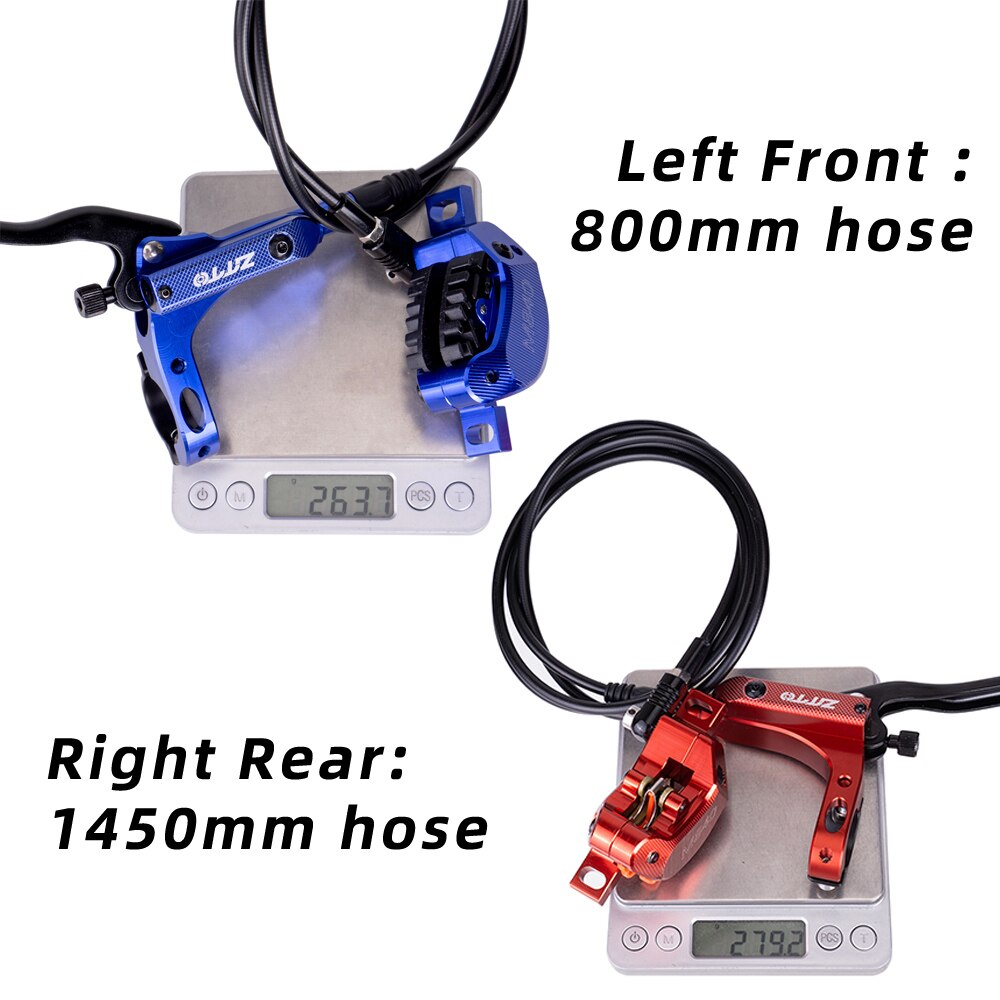

Left front brake hose length :800mm
Right rear brake hose length:1450mm
due to there is a part of hose inside the brake , so ±30mm is normal.
For 51 mm IS & 74mm post mounting
stock included IS-PM160 adapter
Rotor: Caliper compatible φ 140/160/180/203mm rotor. calipers original fit for 160mm rotor, if you want use for 180mm or 203mm rotor, need use brake adapter(brake not include 180mm and 203mm adapter)
(Random screw color)

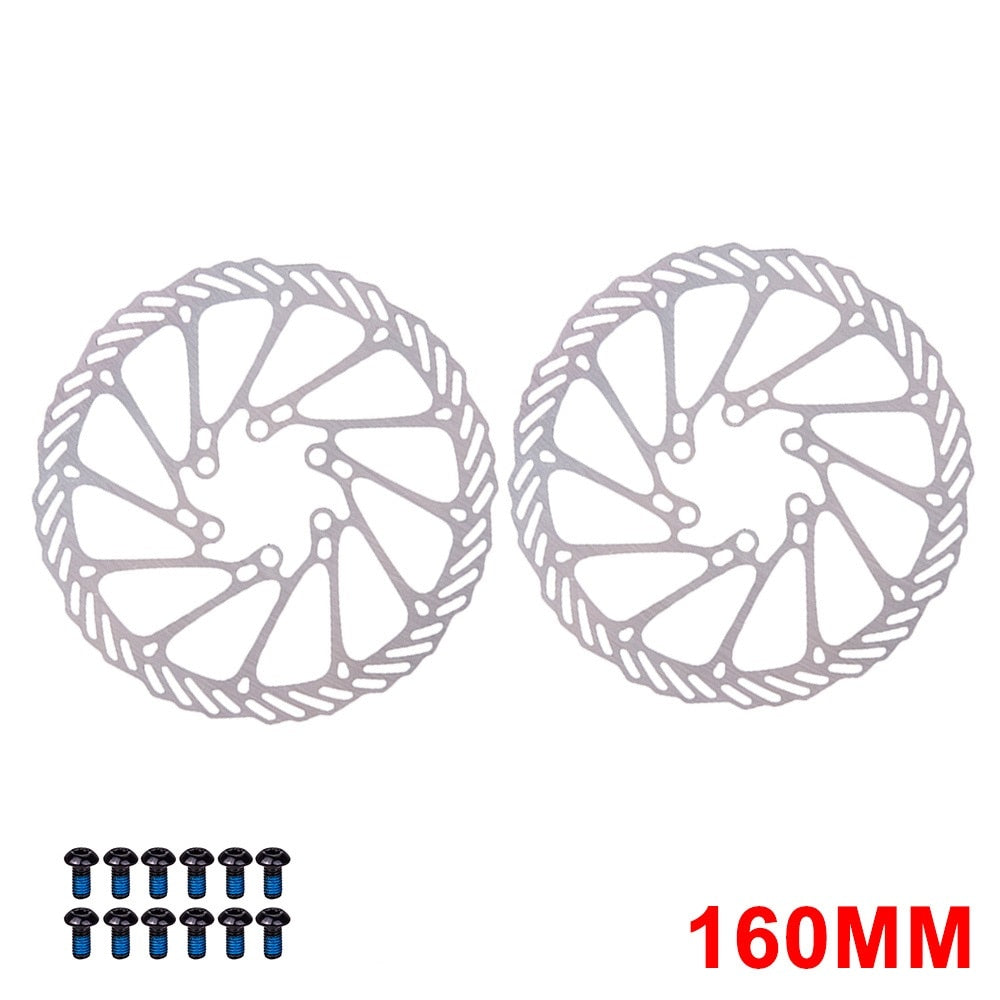

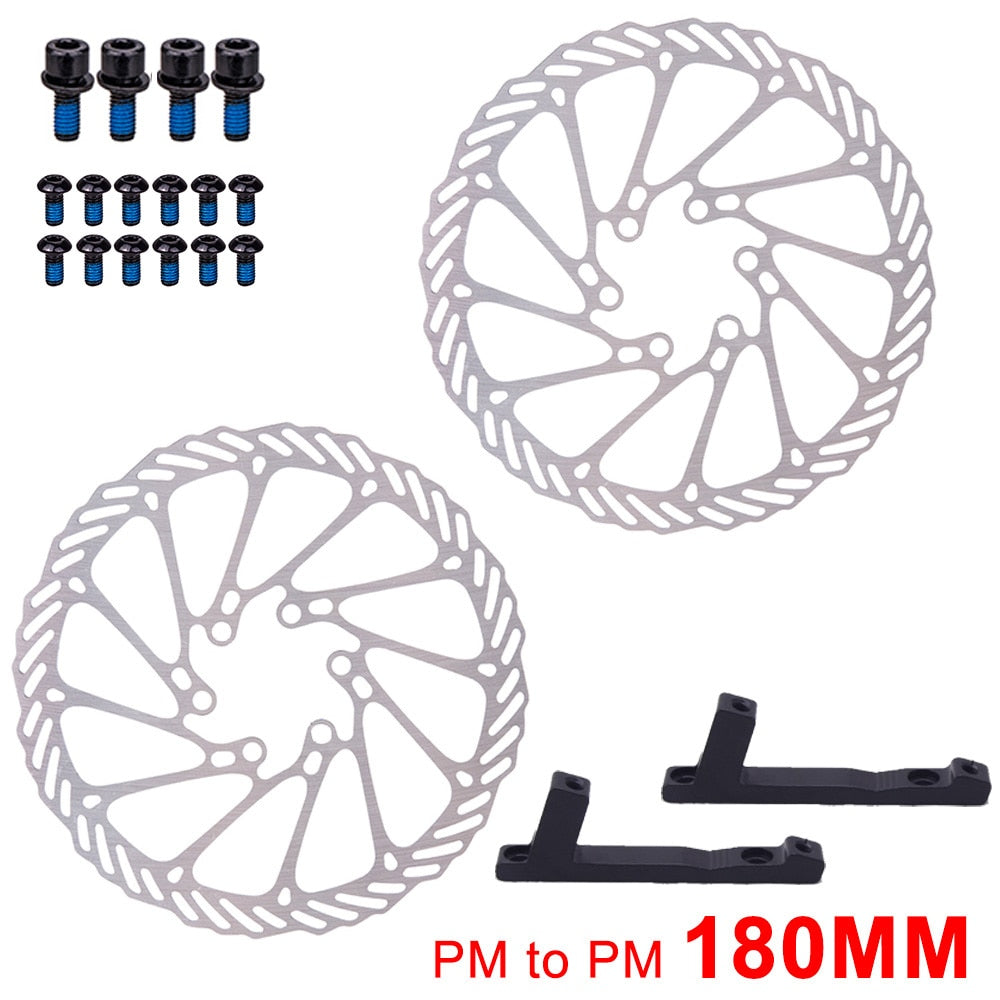

160mm 180mm Rotor Available
Accessory pack including
Fix screws, BH59, IS to PM adapter
this pack is for the buyer who bought pair.
If purchase front or rear only, then there is front or rear adapter only and 4 screws , no spare BH59 needle

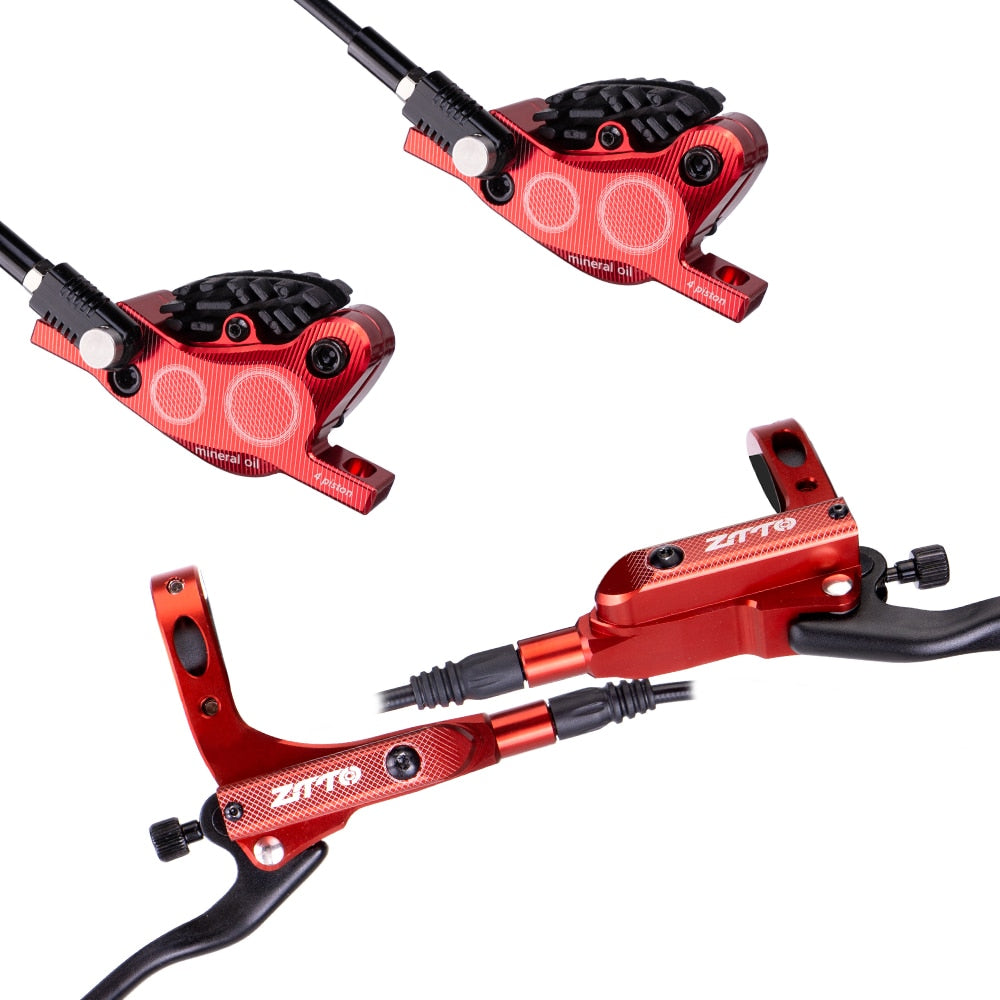

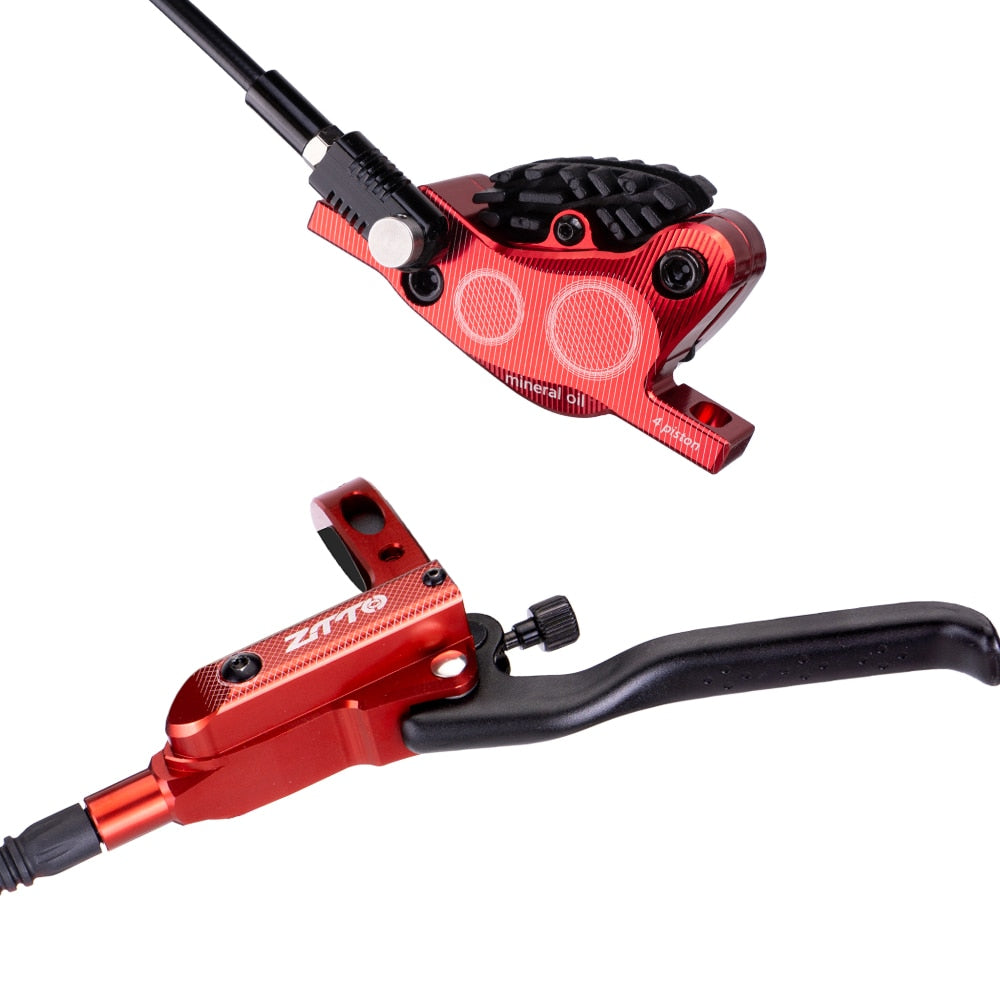

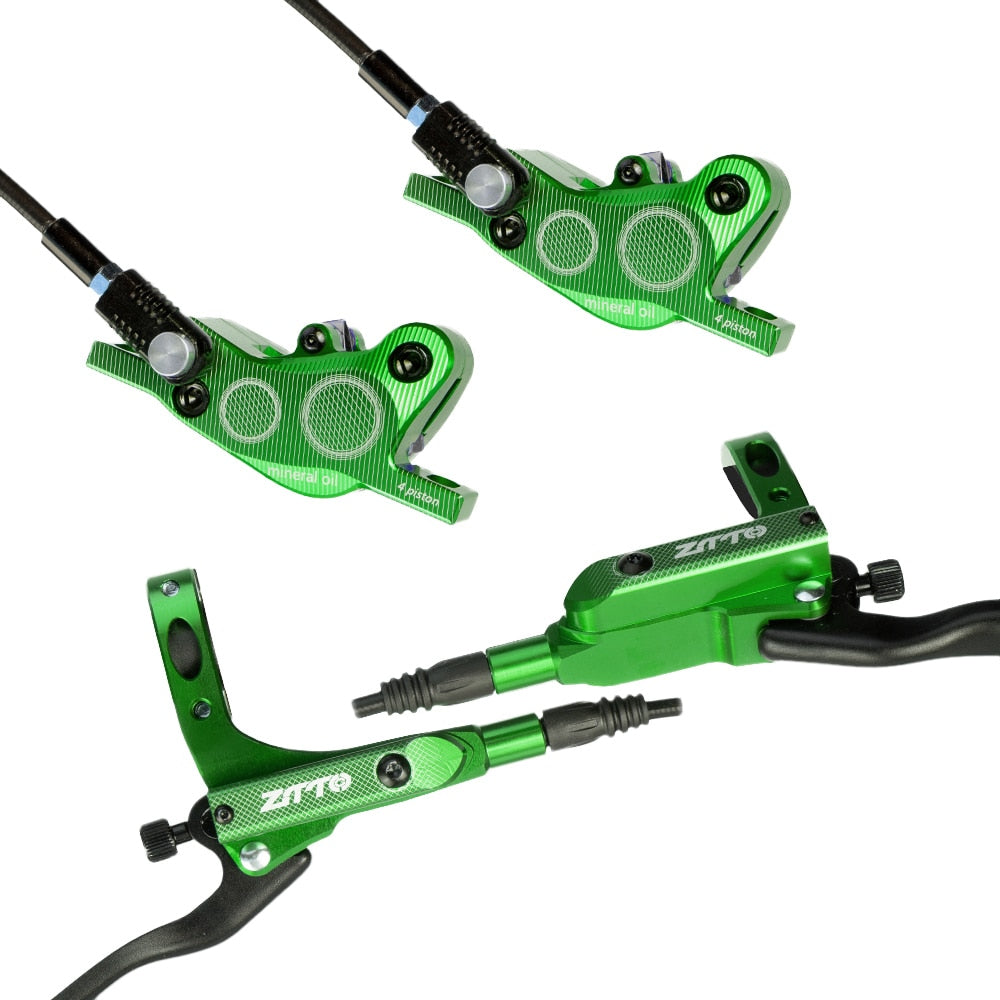

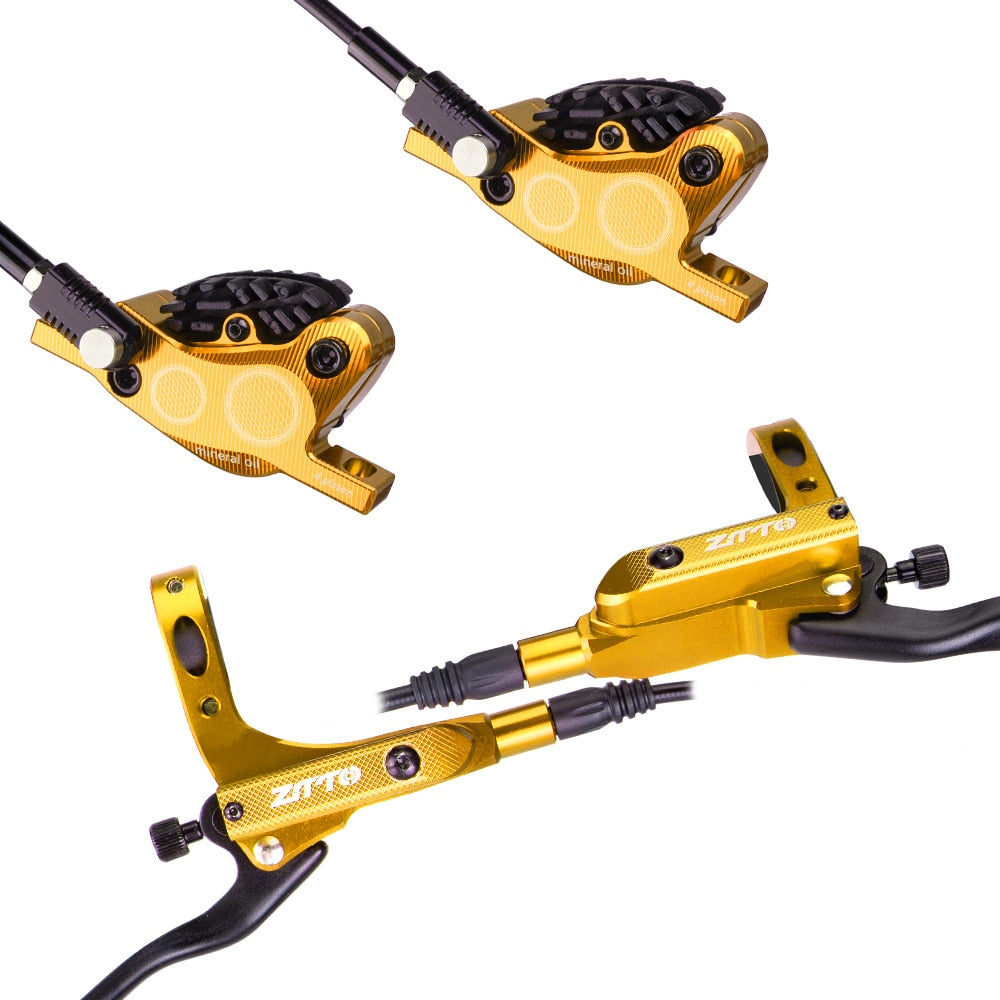

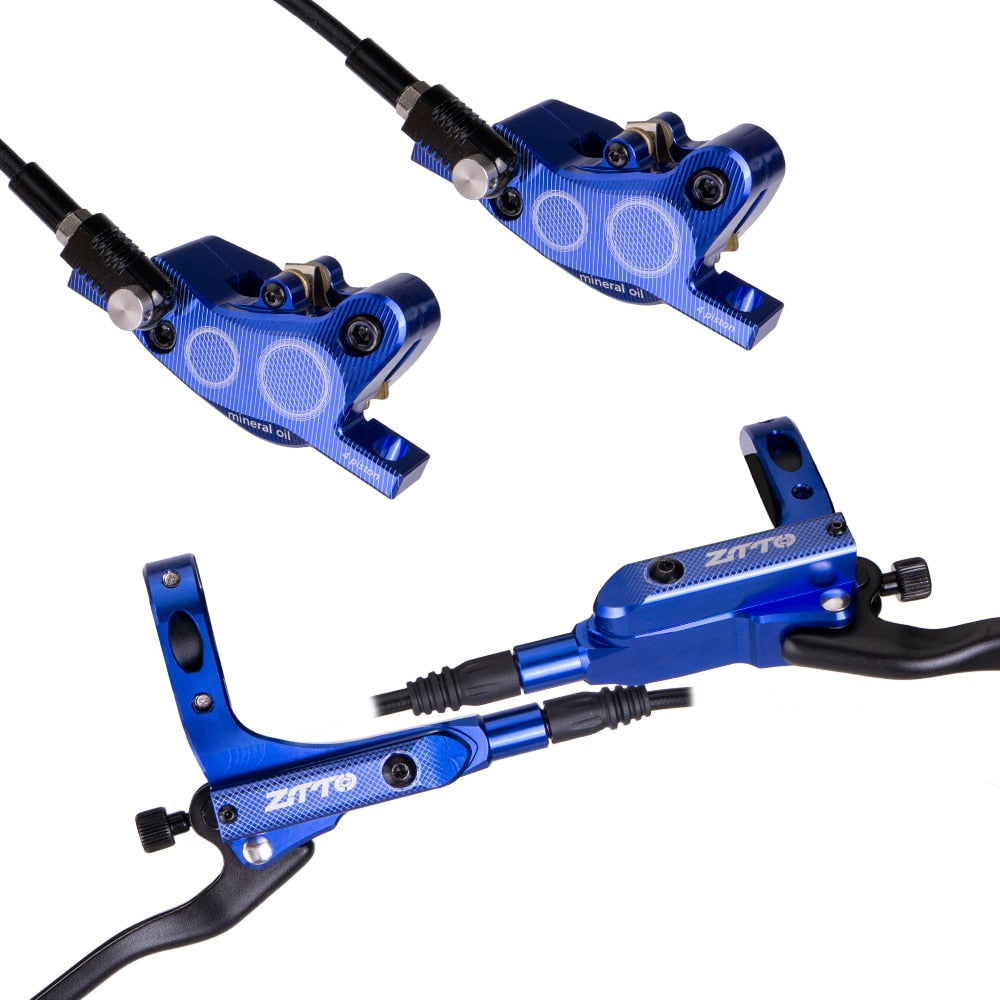

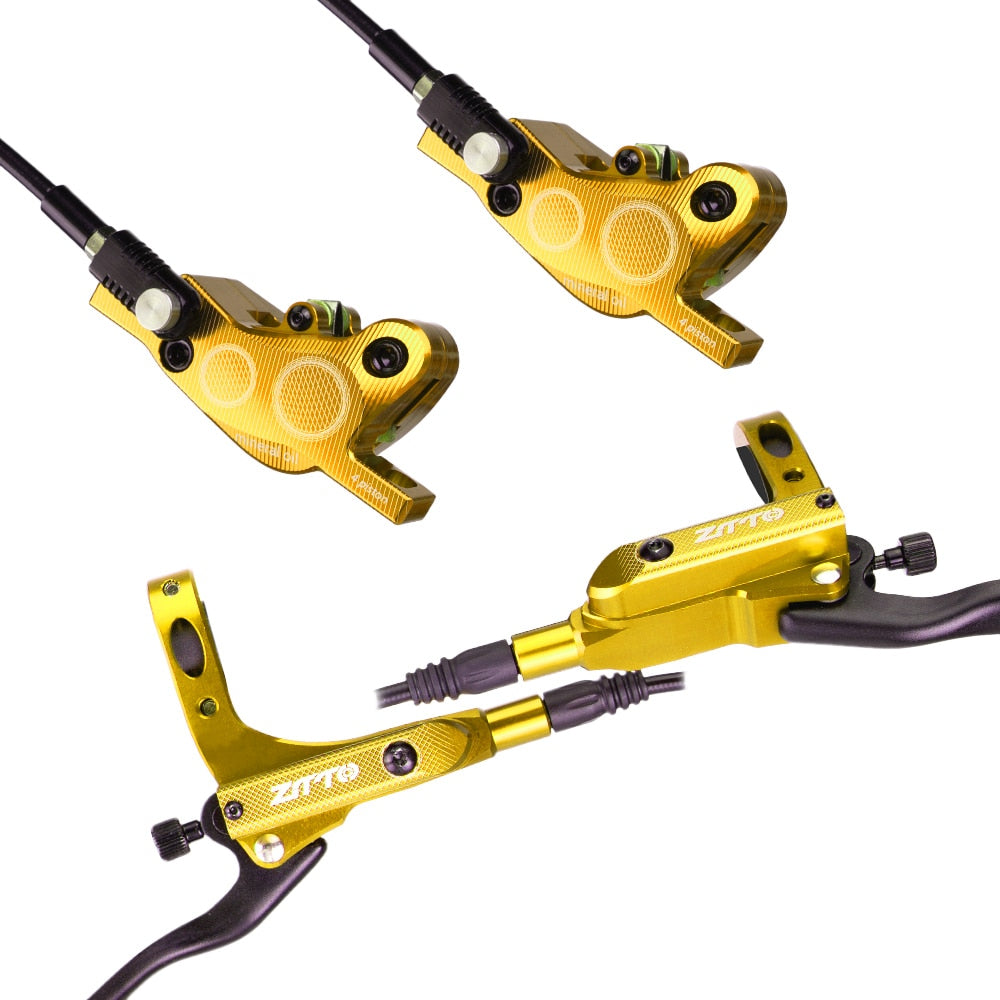

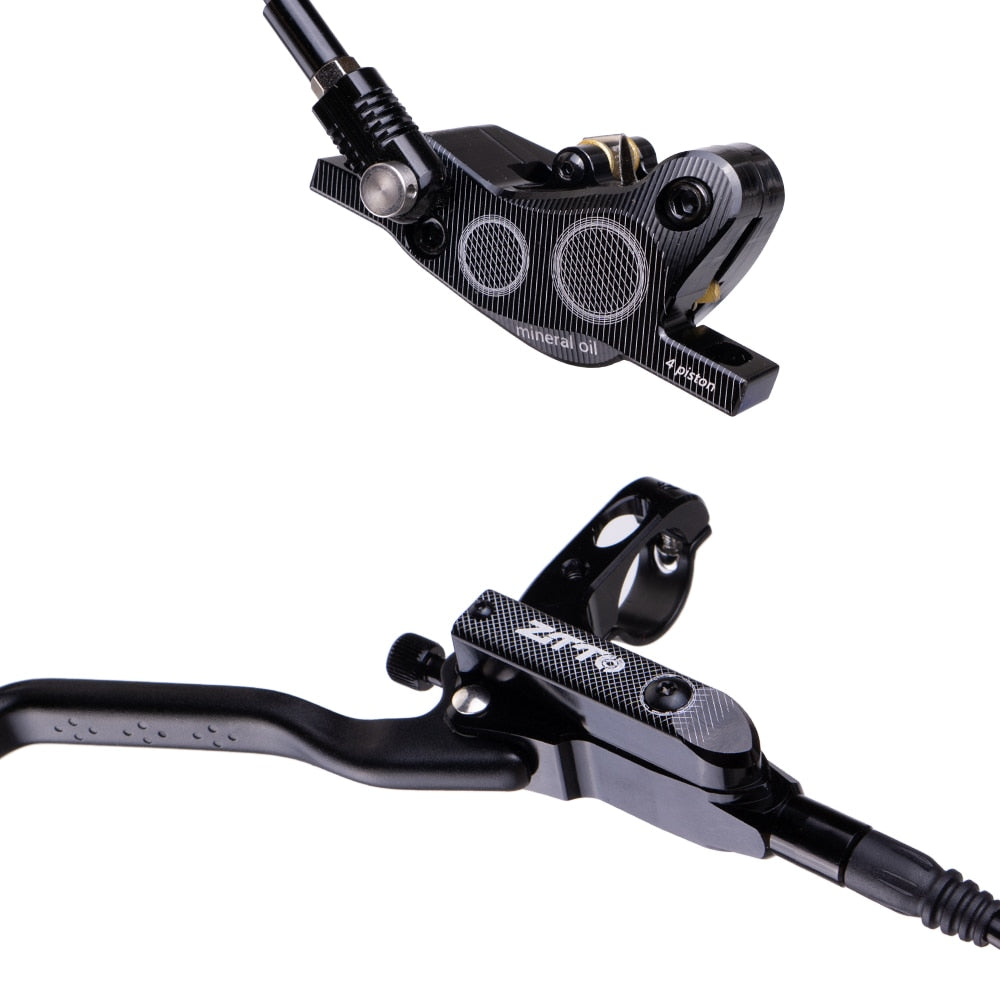

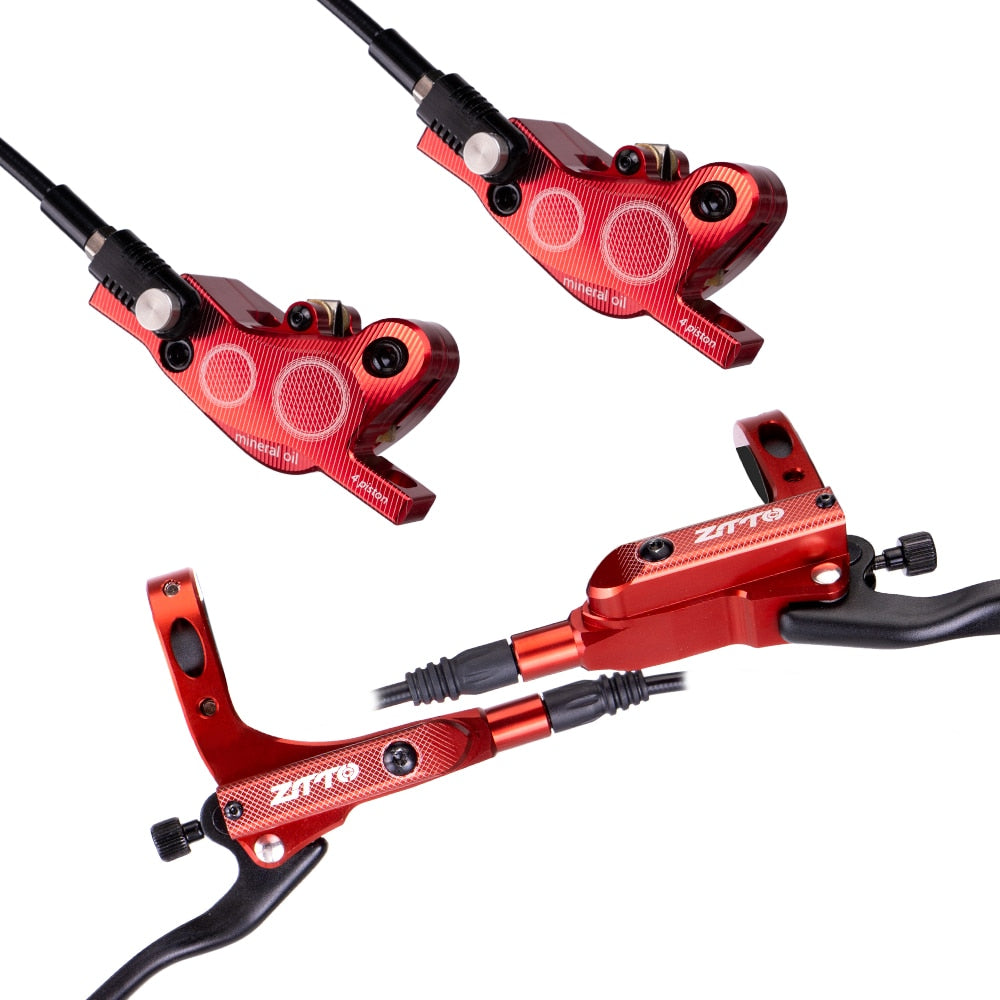

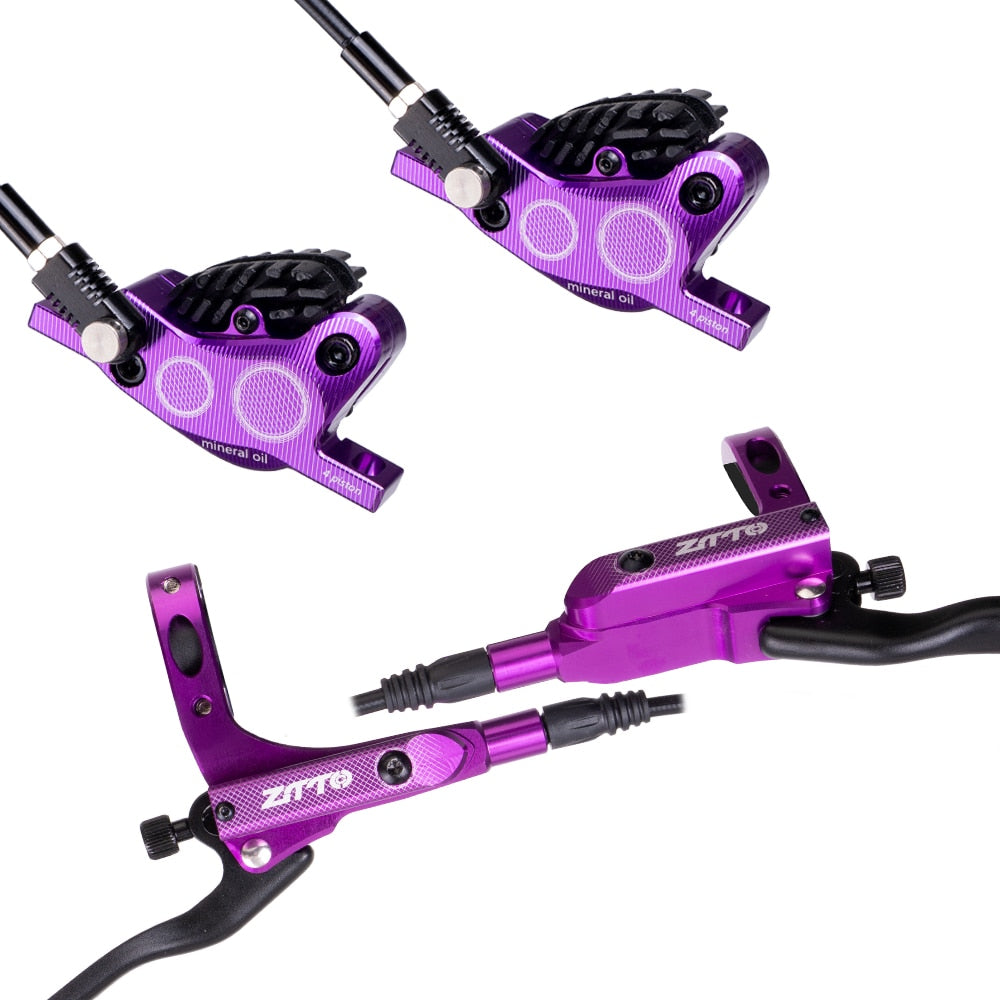

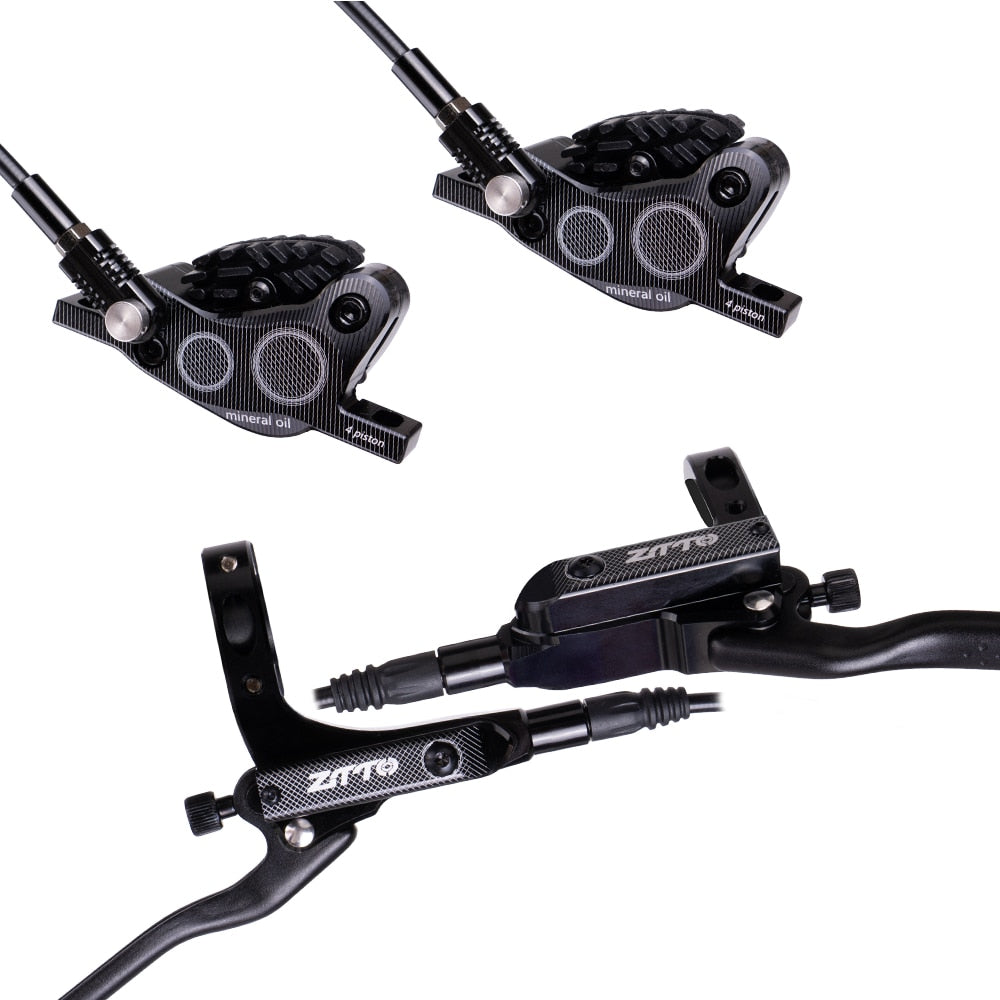

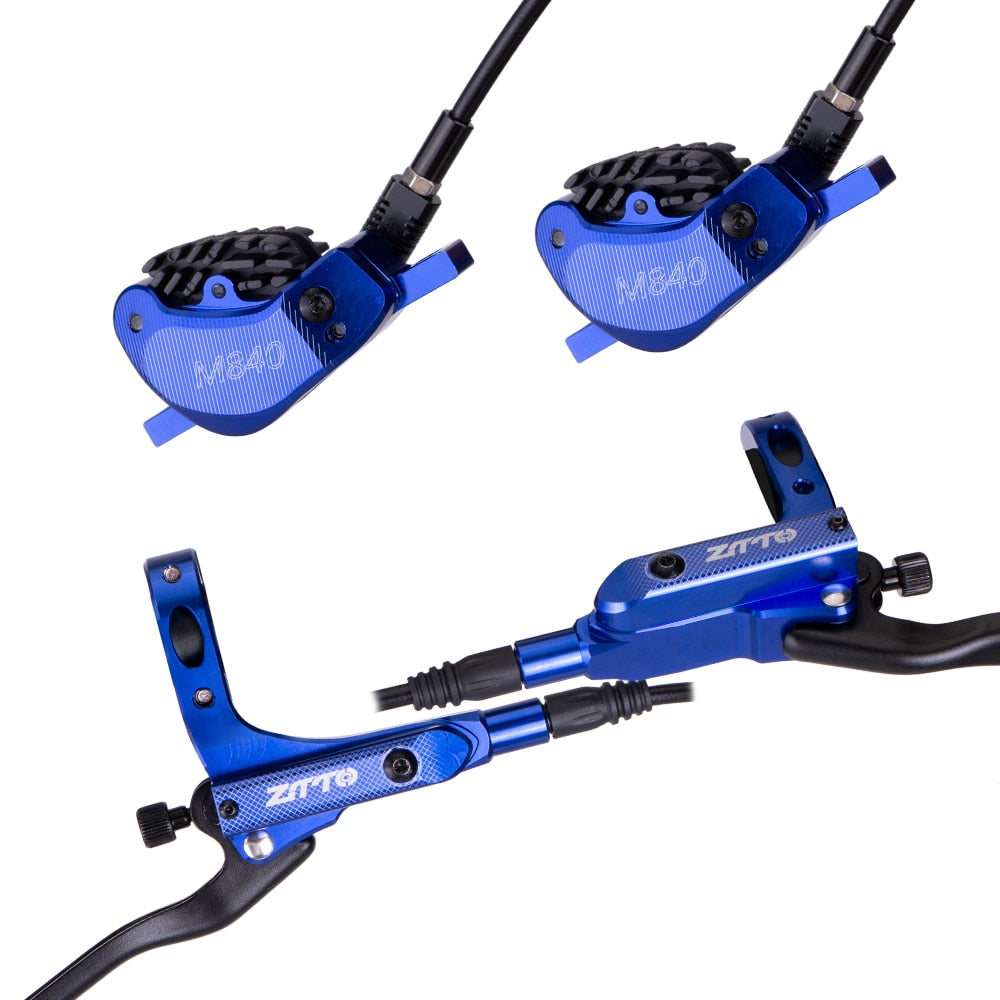

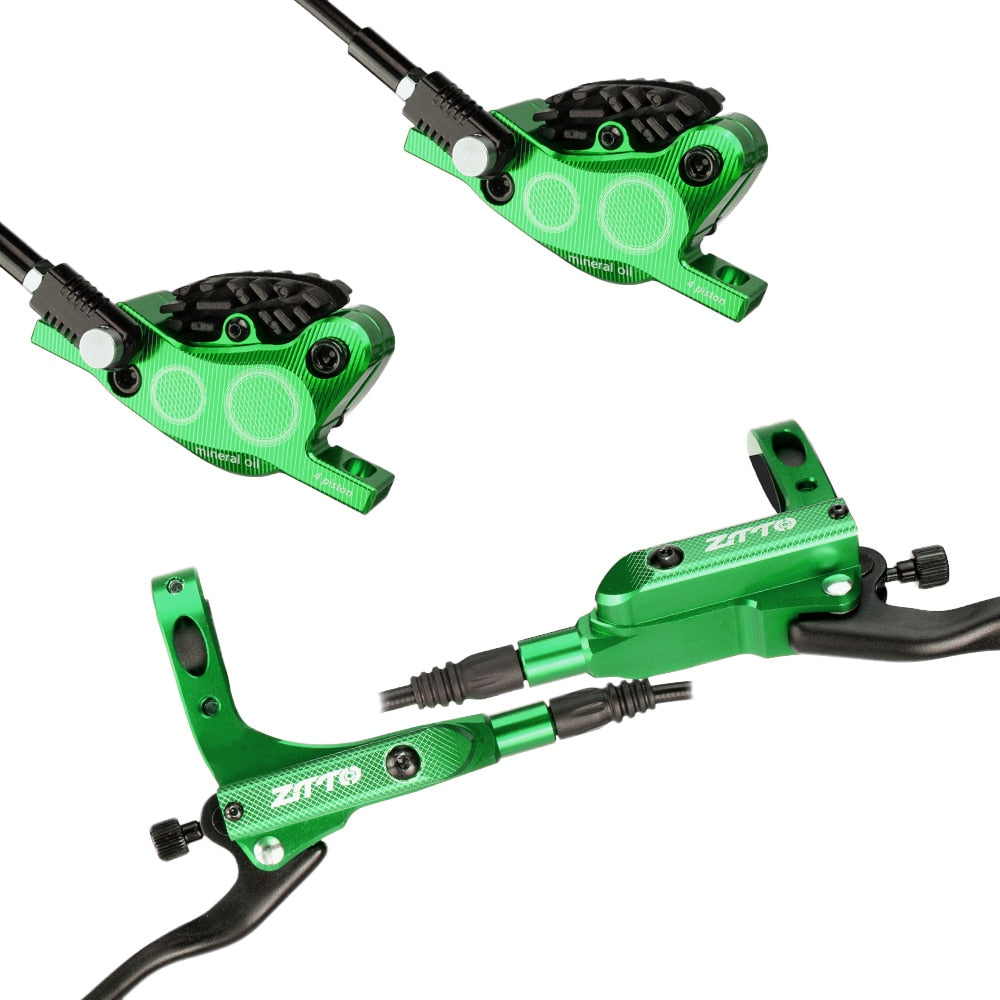

6 COLOR Available
BLACK / RED / BLUE/ GOLD/ PURPLE/ GREEN
