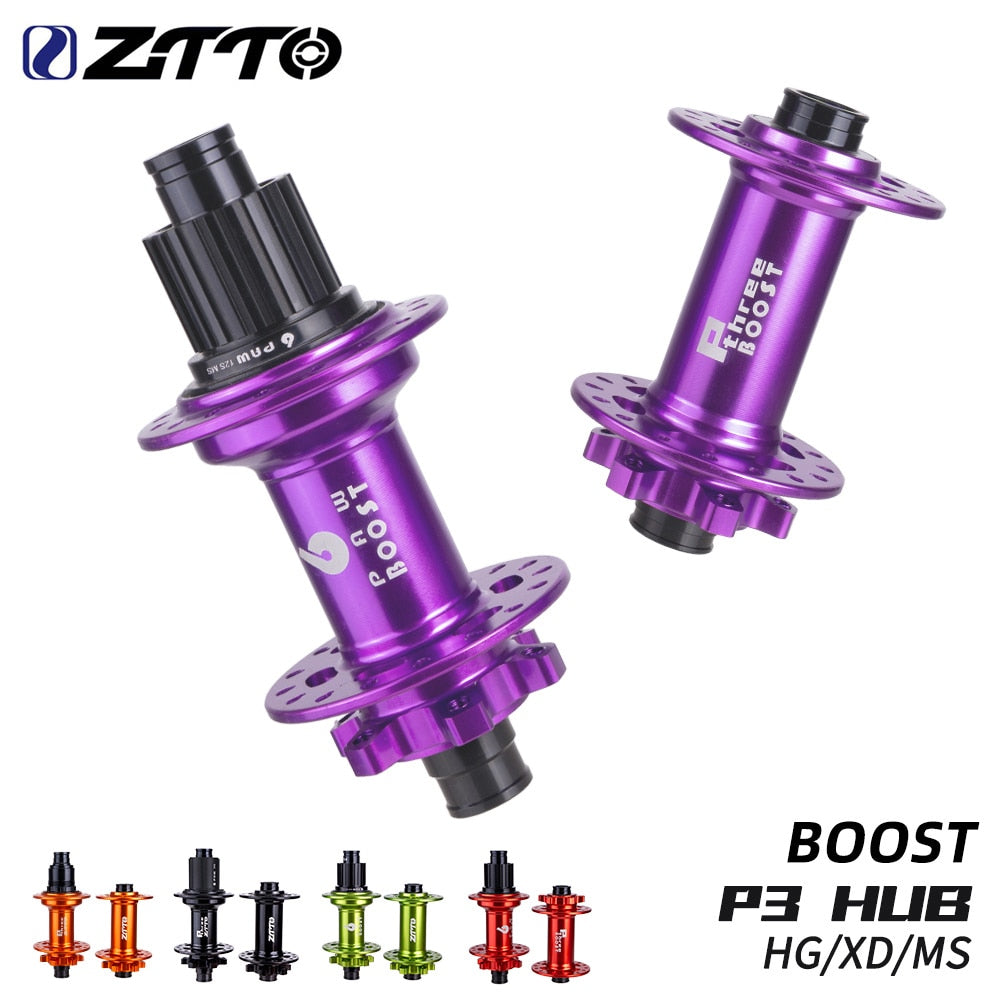

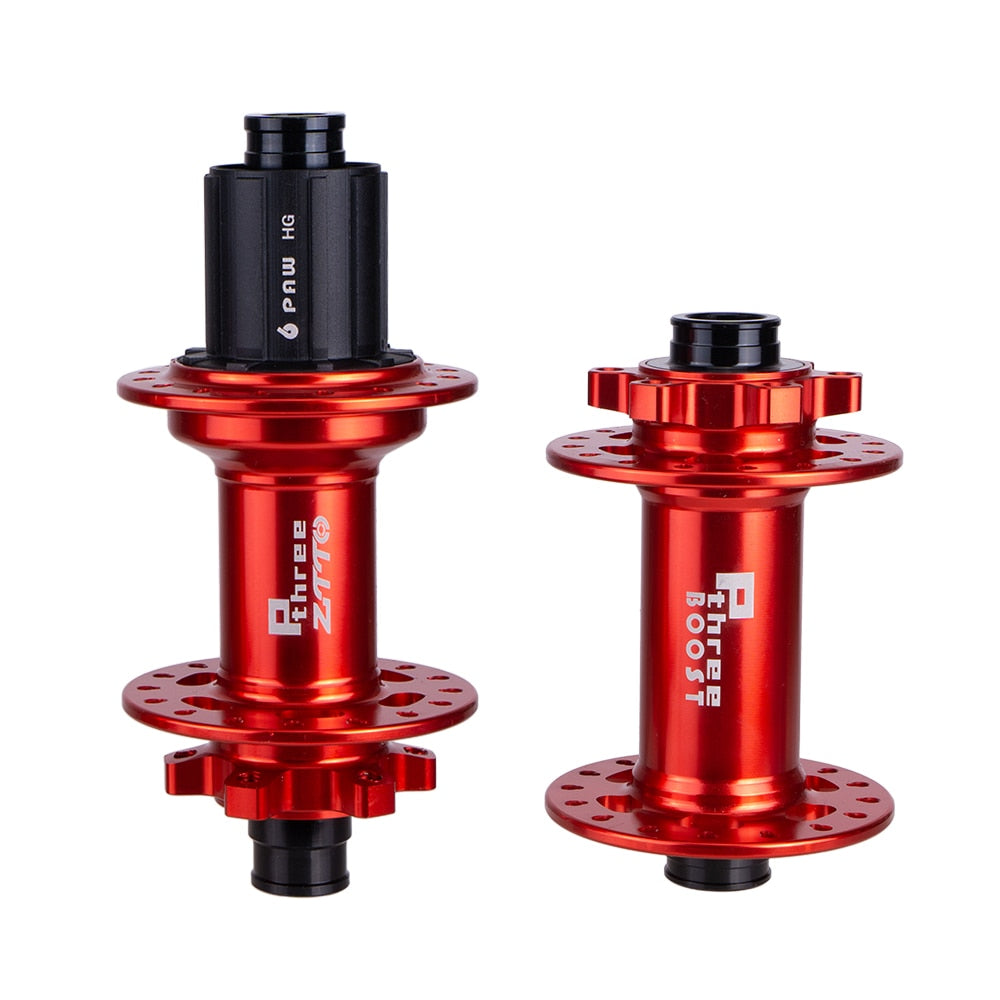

ZTTO P3 MTB 6 Pawls Disc Brake Hub- BOOST Version
The brand new hub of this year--- ZTTO P3 hub. You can find some good hubs on some of the finest bikes in the world. Such as D041SB/D042SB. But our new hub even better, it arguably worth every penny, and it can give you a stellar quality experience.
Excellent workmanship: P3 hub uses a forged aluminum shell that houses stainless steel bearings (balls and races)
BOOST Standard 12x148 / 15x110
this is the P3 hub BOOST version, The shell is extended, it's a Real boost , not just chnaging end caps. so it can't change to 142 or 135. the other parts is same as the ZTTO P3.
Rear hub QR 10x141 Available
Accessories: included rear hub QR cap 10x141 Quick release.
but the front hub is 15x110 only, please note.
6 Pawls System

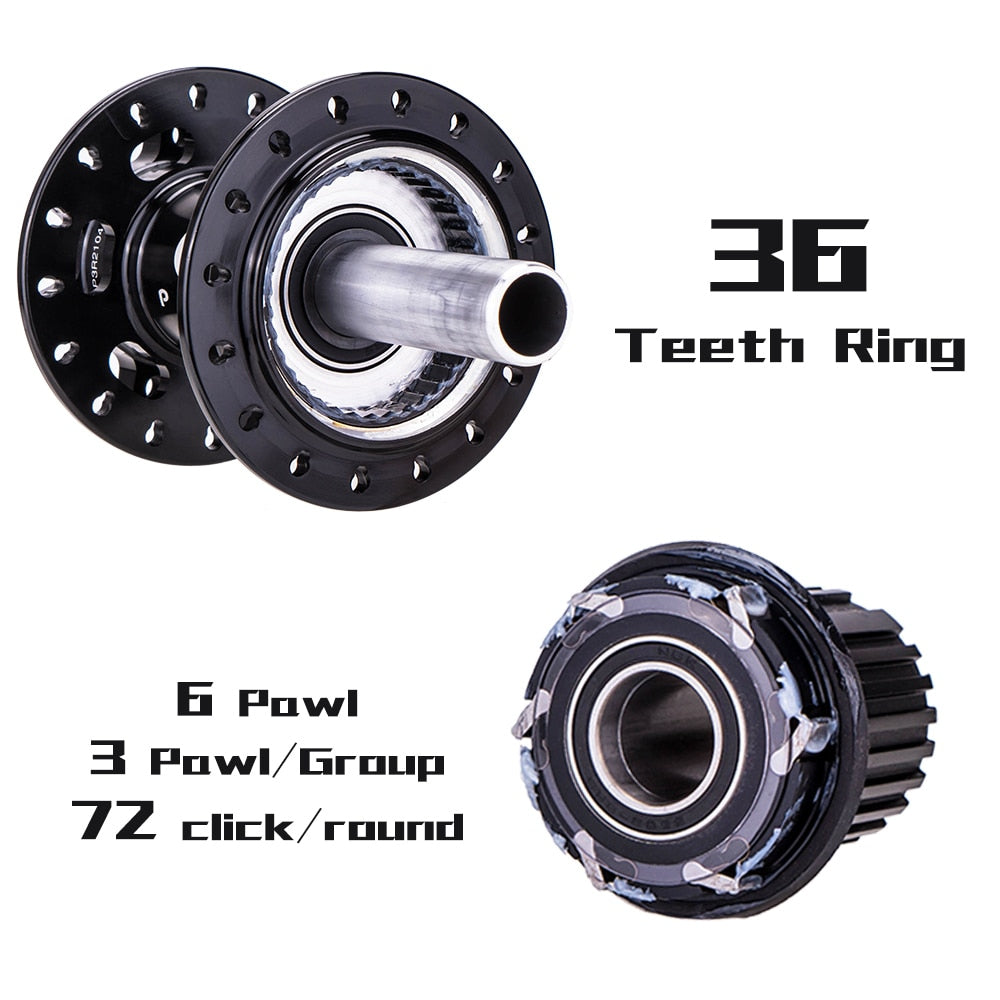

6 Pawls System: You can find 3 Pawls one team design of structure, The spring leaf of each pawl is independent. It is very reliable. Compared with the design of all pawl sharing a metal ring like DS042, our response speed is faster and the strength is more even. (Everyone who has used the shared design knows that due to the different deformation of the metal ring, each pawls has a different strength. ) During your ride, the force is uniformed. Your hub can carry magical reliability and smoothness over the long haul, virtually regardless of riding conditions.
72 Clicks/round
Those pawls are split into two trios with slightly offset timing, though, which yields a quick five-degree engagement speed for more immediate power transfer after coasting. (Compared with D042SB only has 24 clicks, 3 pawls, 15 degree)
P3 (72Clicks, 6pawls, 5degree)can instantly transfer your power. 3 times as many as DS042
About the sound: One round is 72 sound. Whether the hub is loud, depends on how much oil you put.
Color

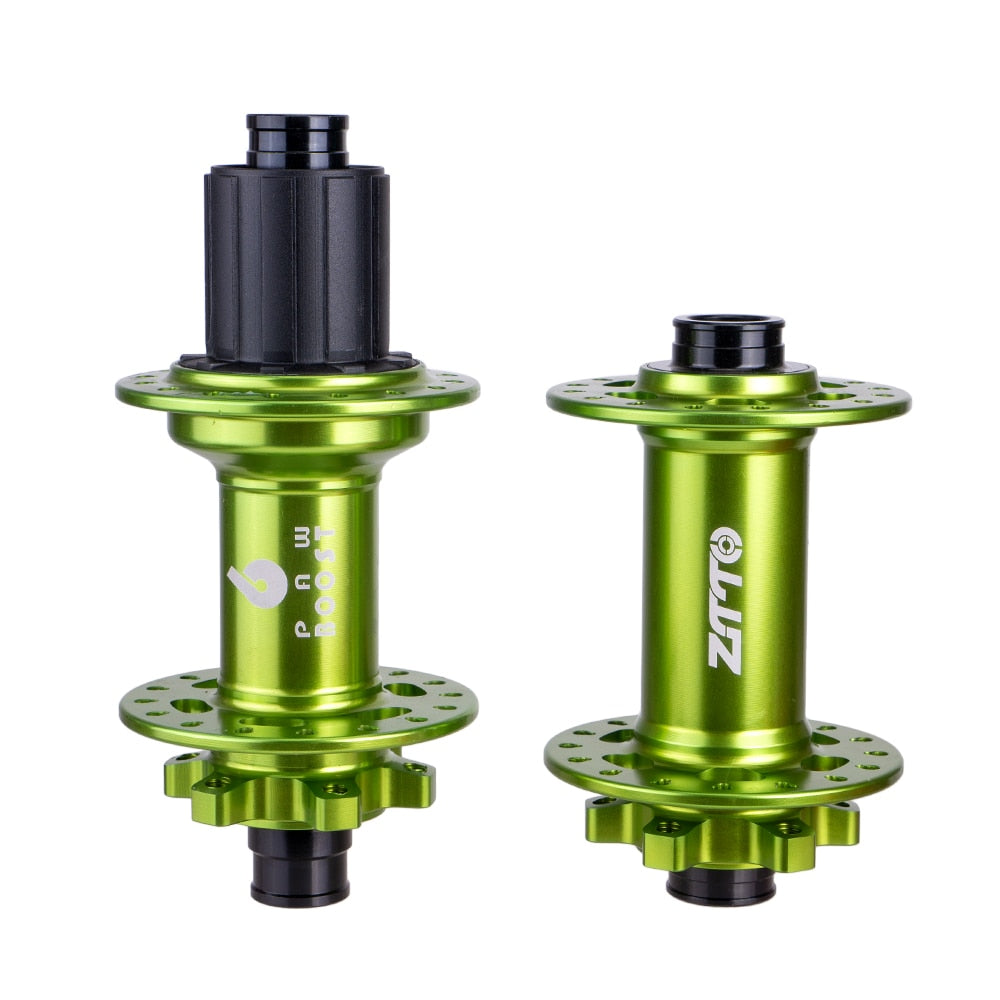

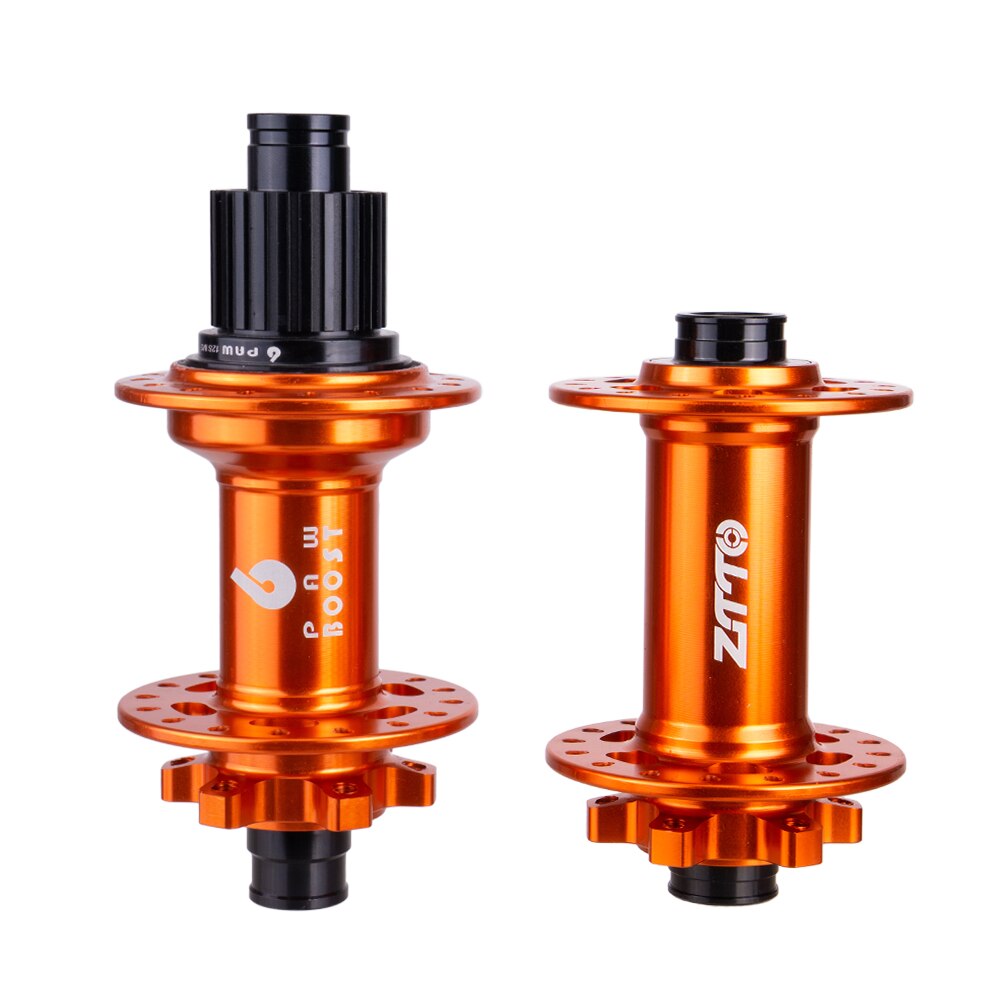

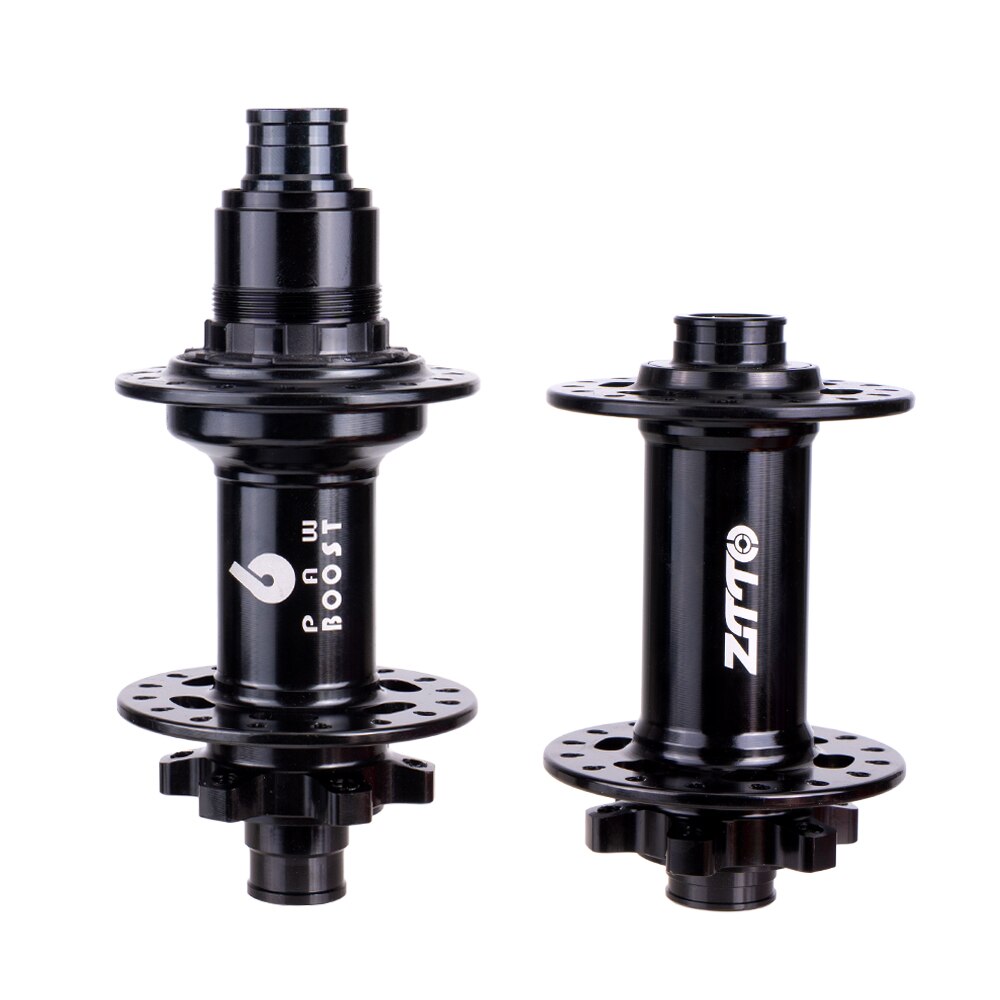

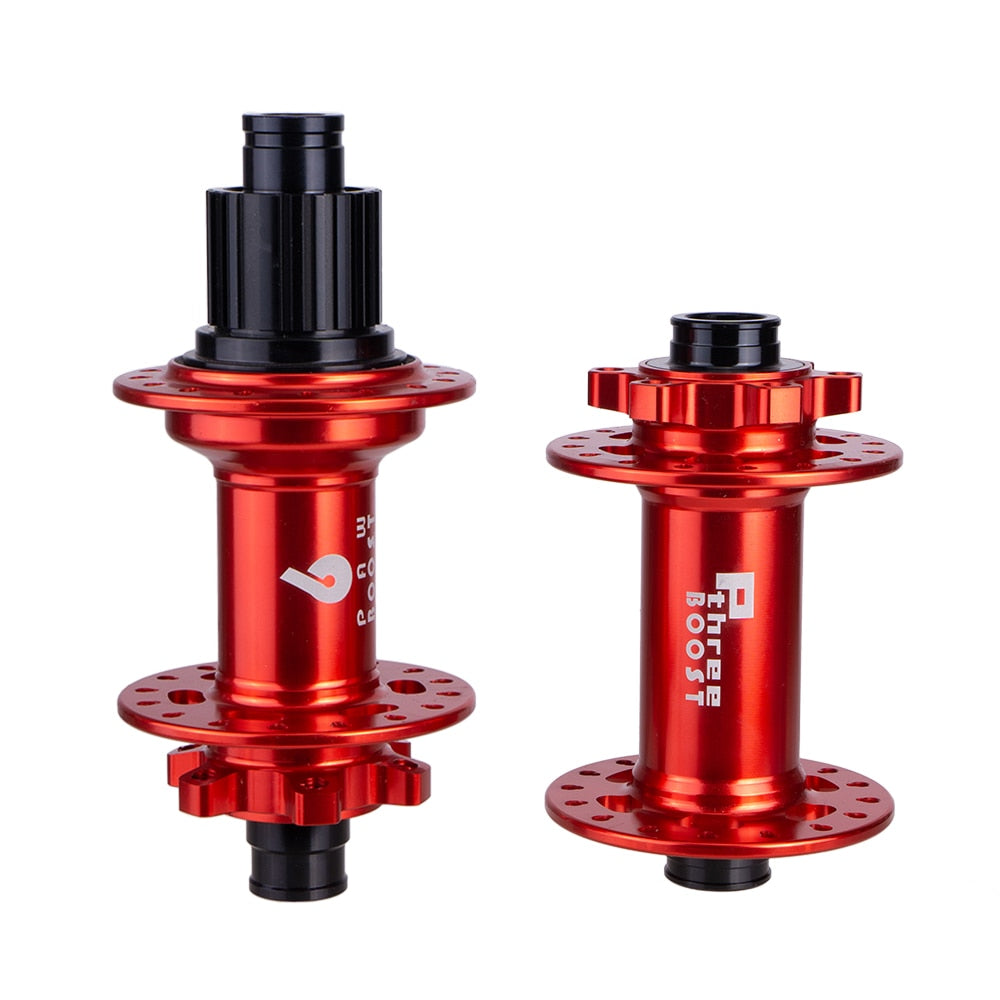

5 colors can select. Black, Orange, Red, Purple, Green.
Compatibility
Multiple hub body can be chosen that is compatible with HG/ XD/ MS standard cassette. (which is D042SB can't ). The excellent compatibility of P3 makes you don’t have to worry about changing groupset/cassette in the future.
Most of Cassette Compatible

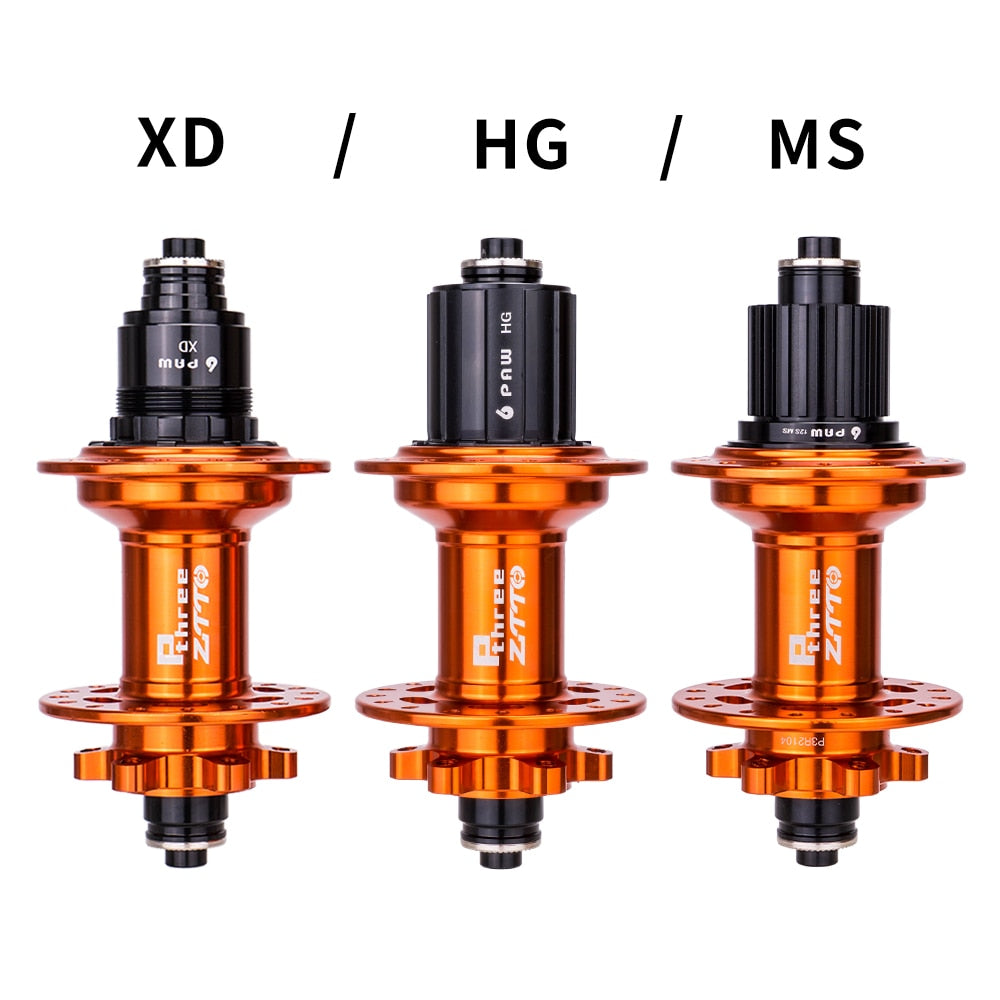

P3 hub has XD/HG/MS optional. please choose according to your cassette model.
XD
XD for 11 and 12s GX/XO1/XX1
Cassettes: CS-XG-1150-A1 / CS-XG-795-A1 / CS-XG-795-A1 / CS-XG-1195-A1 / CS-XG-1175-A1 / CS-XG-1295-A / CS-XG-1299-A1 / CS-XG-1199-A1 / CS-XG-1275-A1 / CS-XG-1295-A2 / CS-XG-1299-A2 / ZTTO 9-50T
HG
HG for M6000/M7000/M8000/SX/NX
Most MTB cassettes 7-11 speeds cassette. 11 speed cassettes: M6000~9000 series. CS-PG-1130-A1, 12 speed cassettes: CS-PG-1210-A1 / CS-PG-1230-A1. (When using a 7-speed cassette, a 4.5mm spacer is required.)
MS
MS for M9100/M8100/M7100/M6100
Cassettes: CS-M9100-12 / CS-M8100-12 / CS-M7100-12
Lightweight
Lightweight: The result is a featherweight hub that rolls with smoothness and can be counted on to last for enough miles.

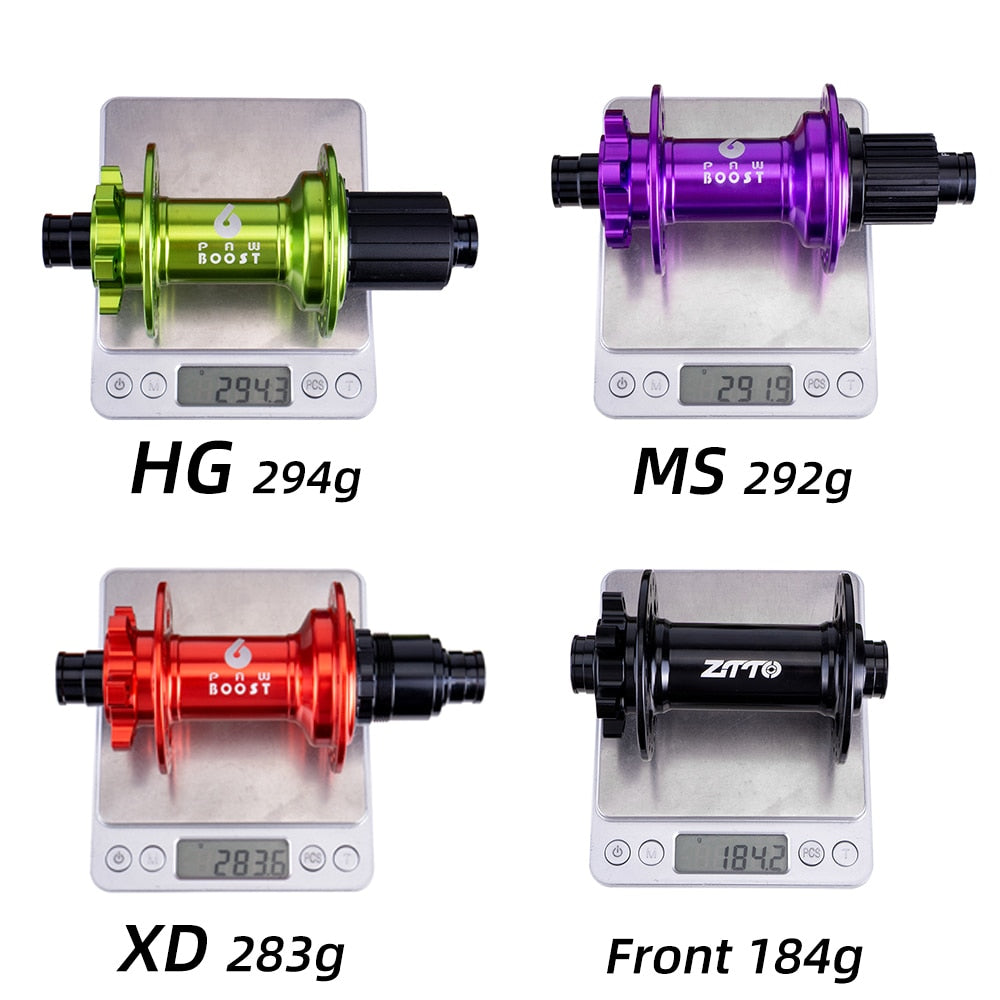

Front-Hub about 184g ;
Rear-Hub 294g(HG)/283g(XD) /292g(MS)
about 476g/pair.
About eccentric skewers
As more and more people using thru axle. the hub NOT including eccentric skewers, If you need it, we have several models, please search "Skewers" in our store. thank you for your understanding.
