ZTTO R1 Road Bike Disc Brake 72 Clicks Hub pawls12x142 Straightpull 24 Hole Ultralight Lock Center Bicycle Thru Axle 12x100

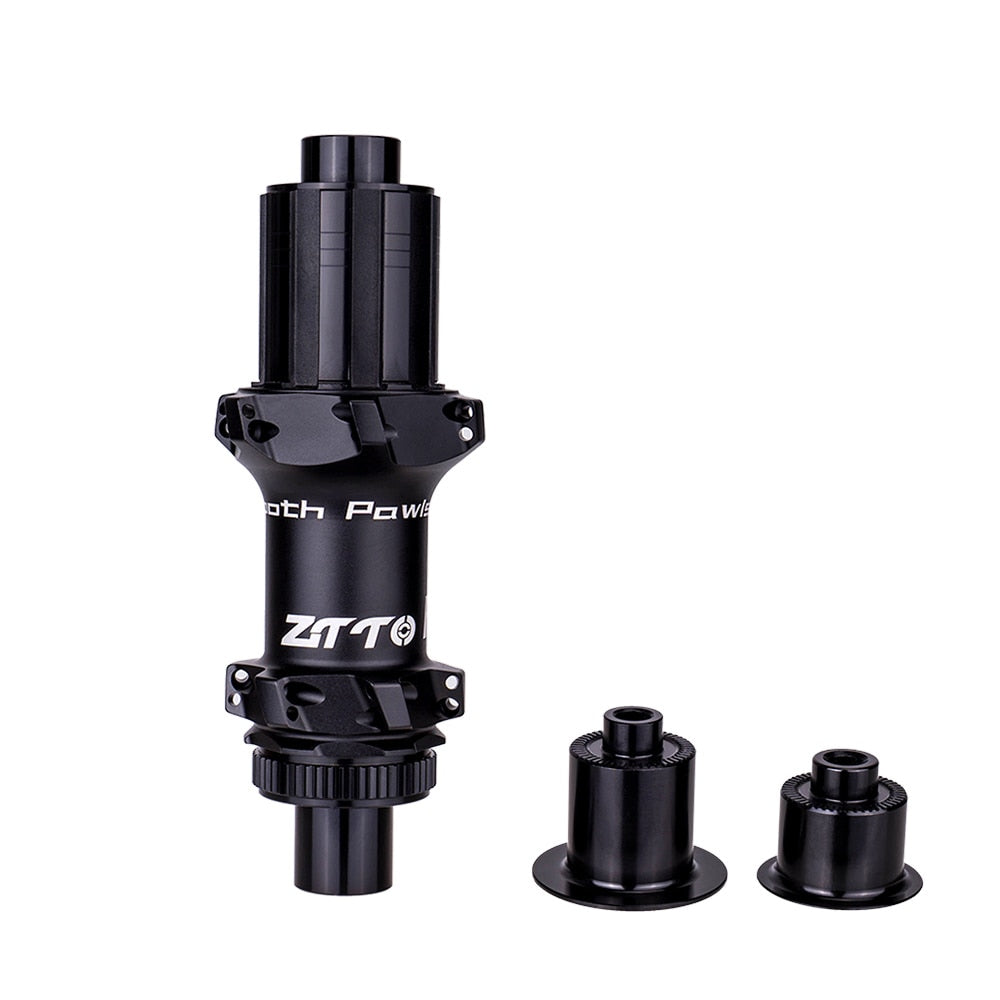

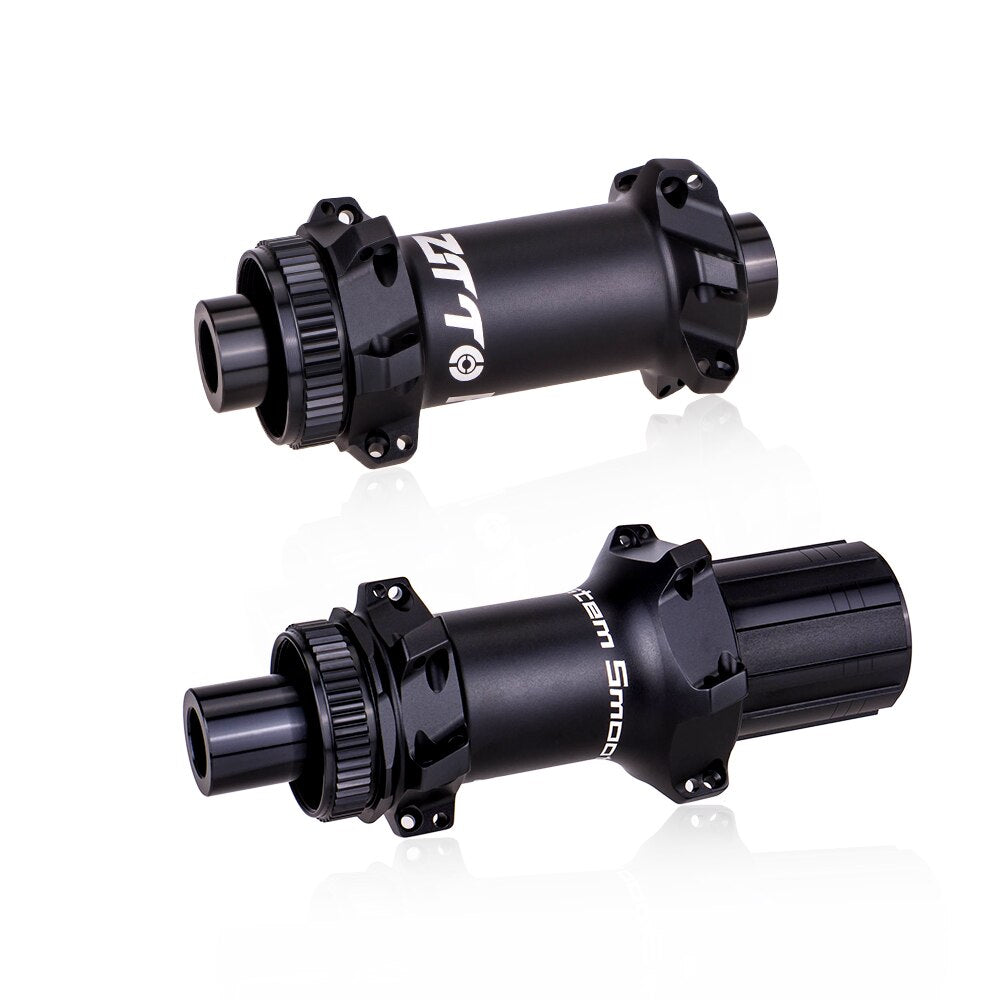

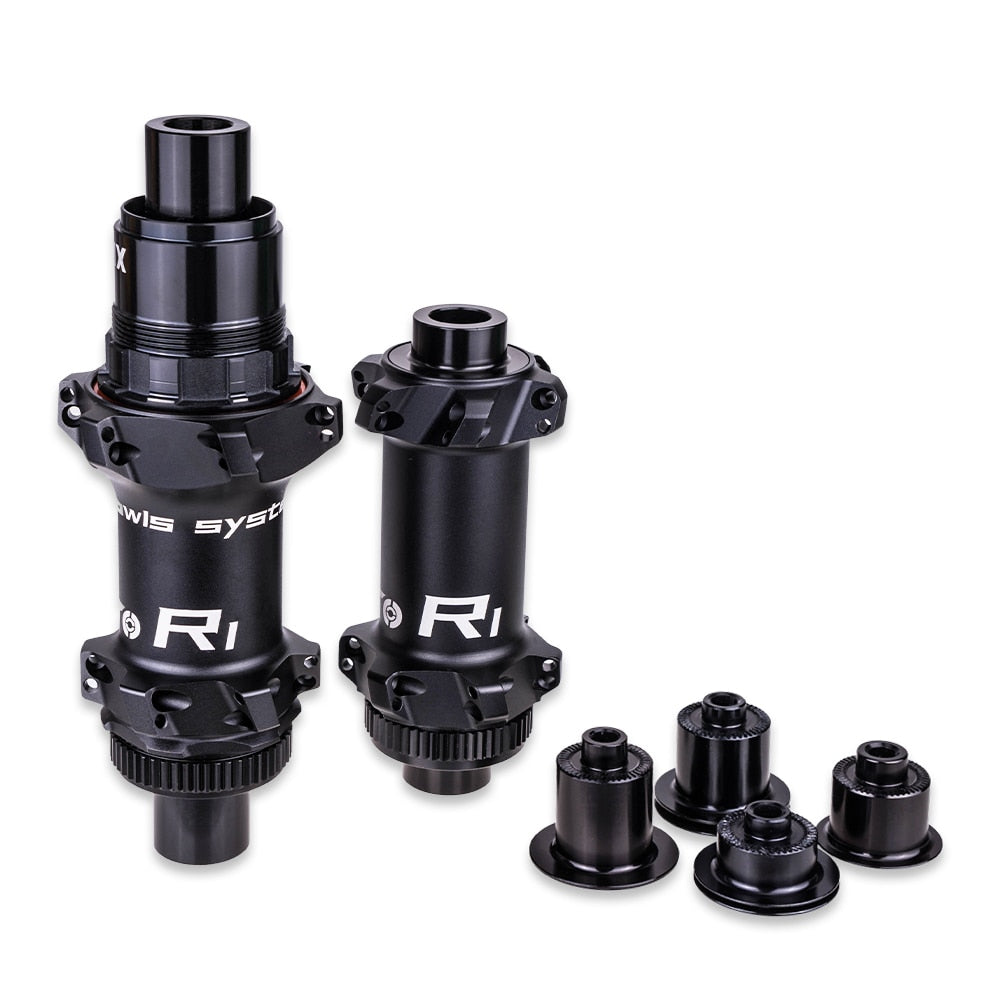

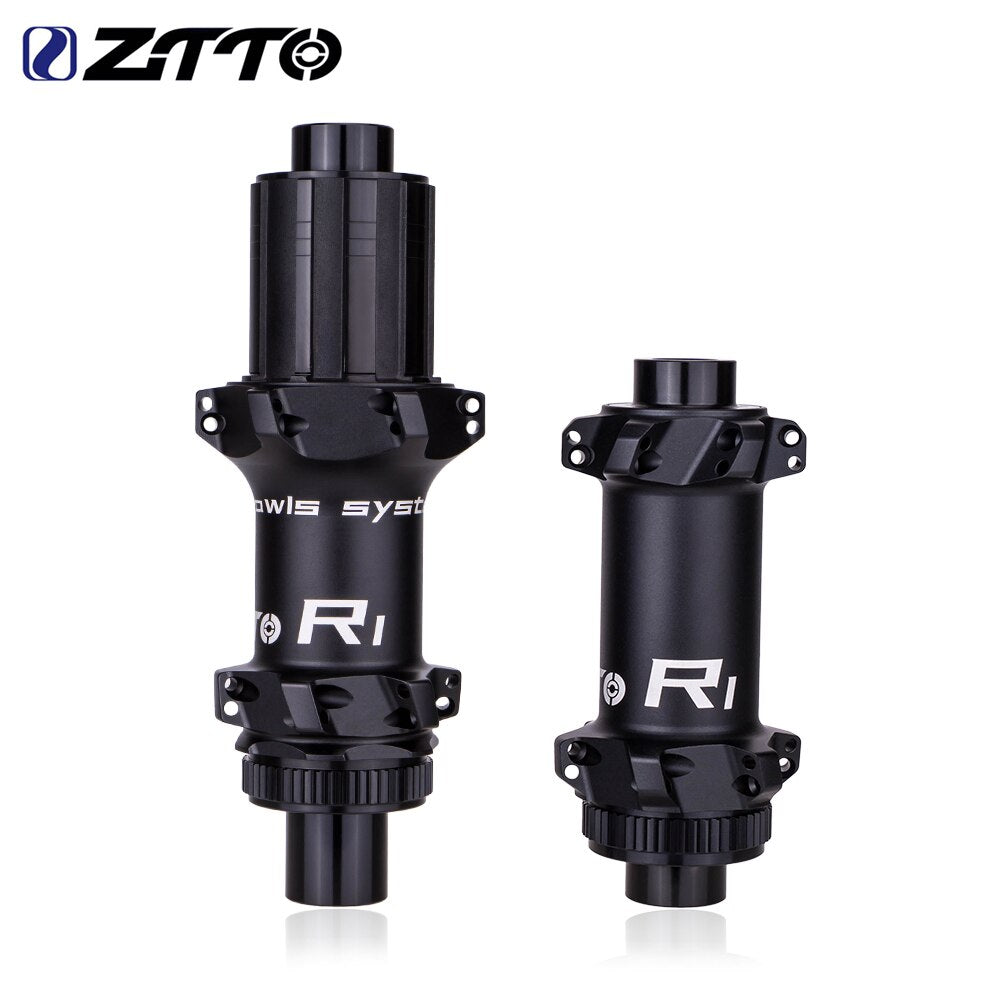

ZTTO R1 Ultralight Straightpull 24 hole Road Bike Hub

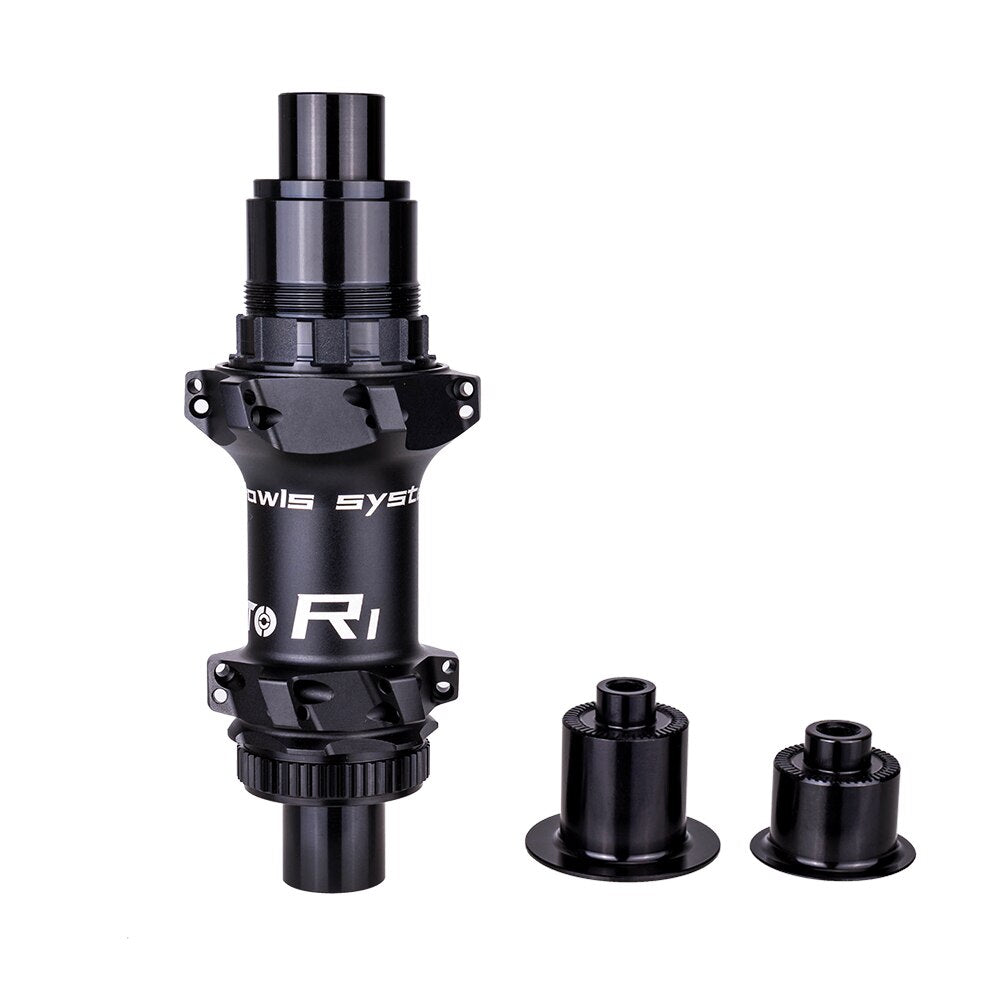

Hub body :XDR/ 11speed Road HG/ CP
24 holes , Max for 2.3mm spokes , 2 Cross
Disc Brake

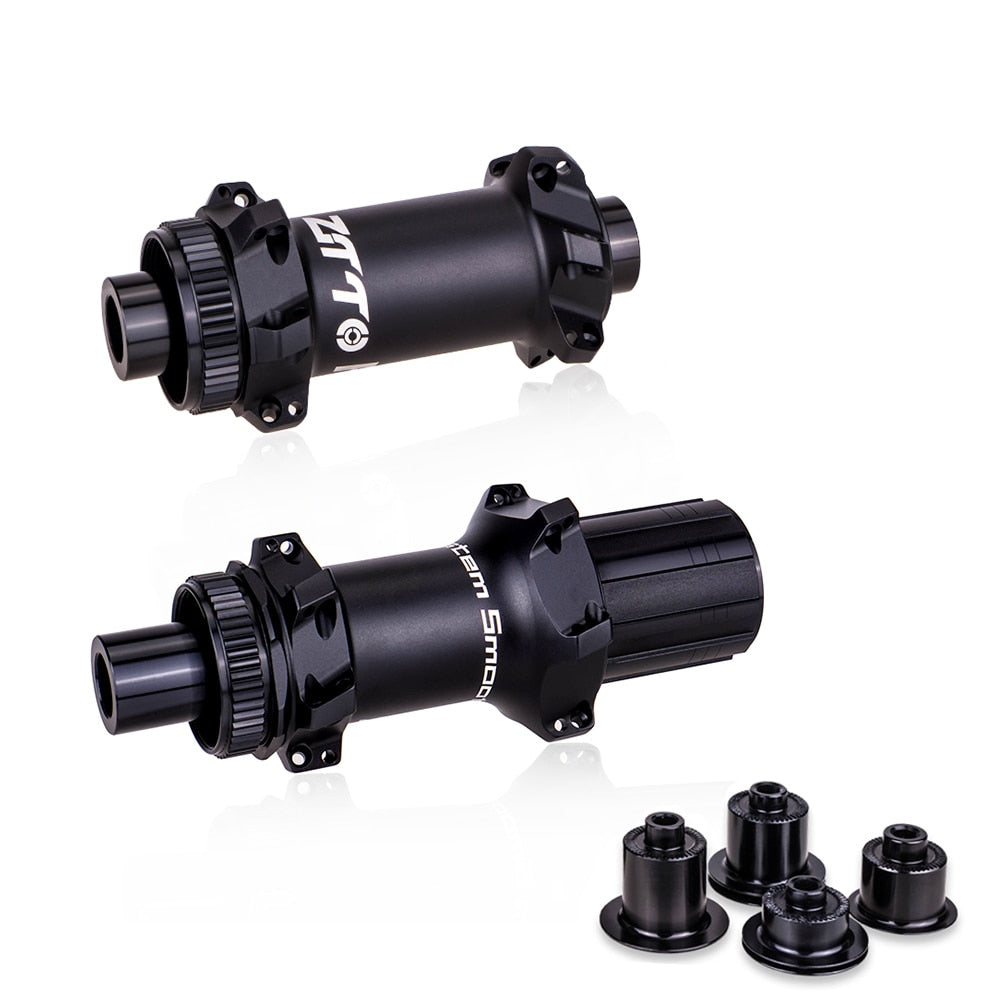

Front 12x100, Rear 12x142

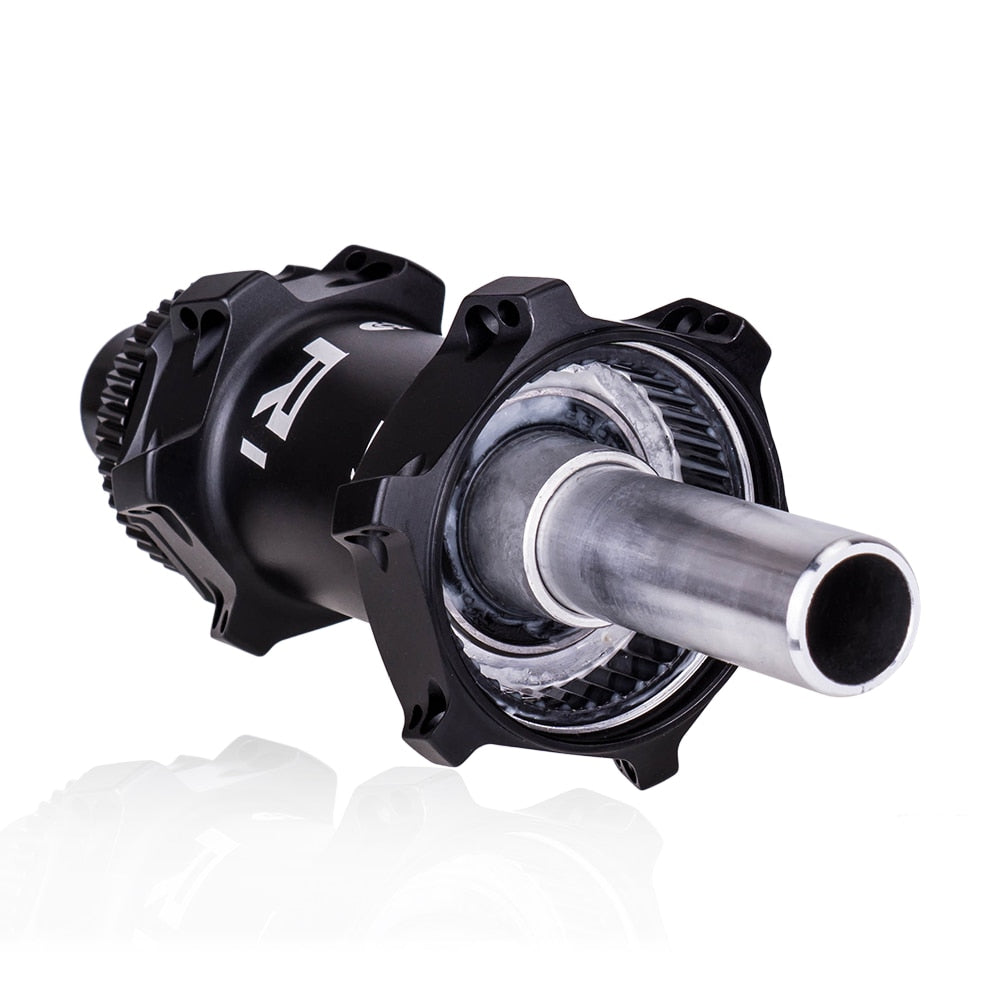

Material : Strengthen 7075 axle, Forging 6082 alloy shell CNC made

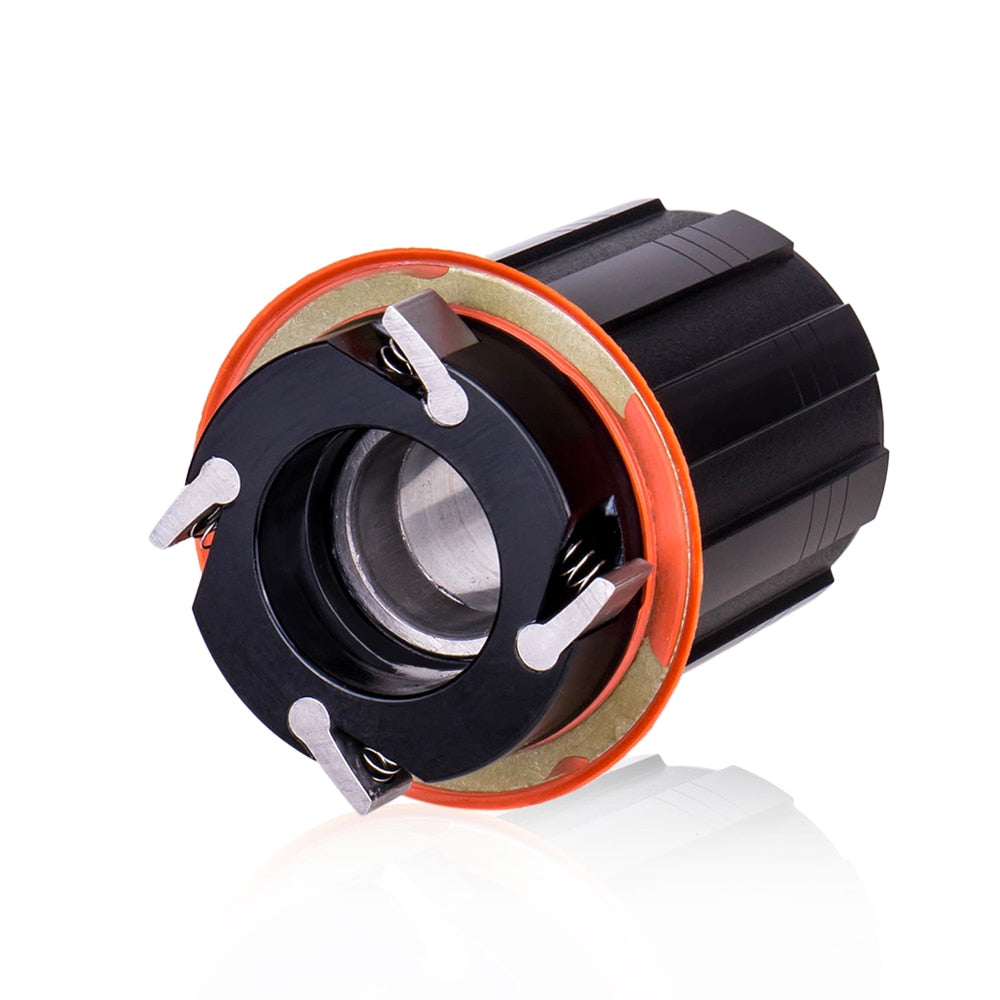

Super smooth pawls system

Why we chose the pawls system instead of the ratchet system? Please note that this is not an normal pawls system. According to our experimental results, The 36T ratchet system has approximately 1.47N rotation resistance, our new 4 pawls system as approximately 0.343N rotation resistance. This means that the running resistance of the hub body has dropped by 76.6%!

Not only smooth, but also fast

In the world of road bike, every watt of power waste is unacceptable, so we decisively chose the new system, and we also divided them into two groups to make it reach 72 click/round. (36T x 2 Group)

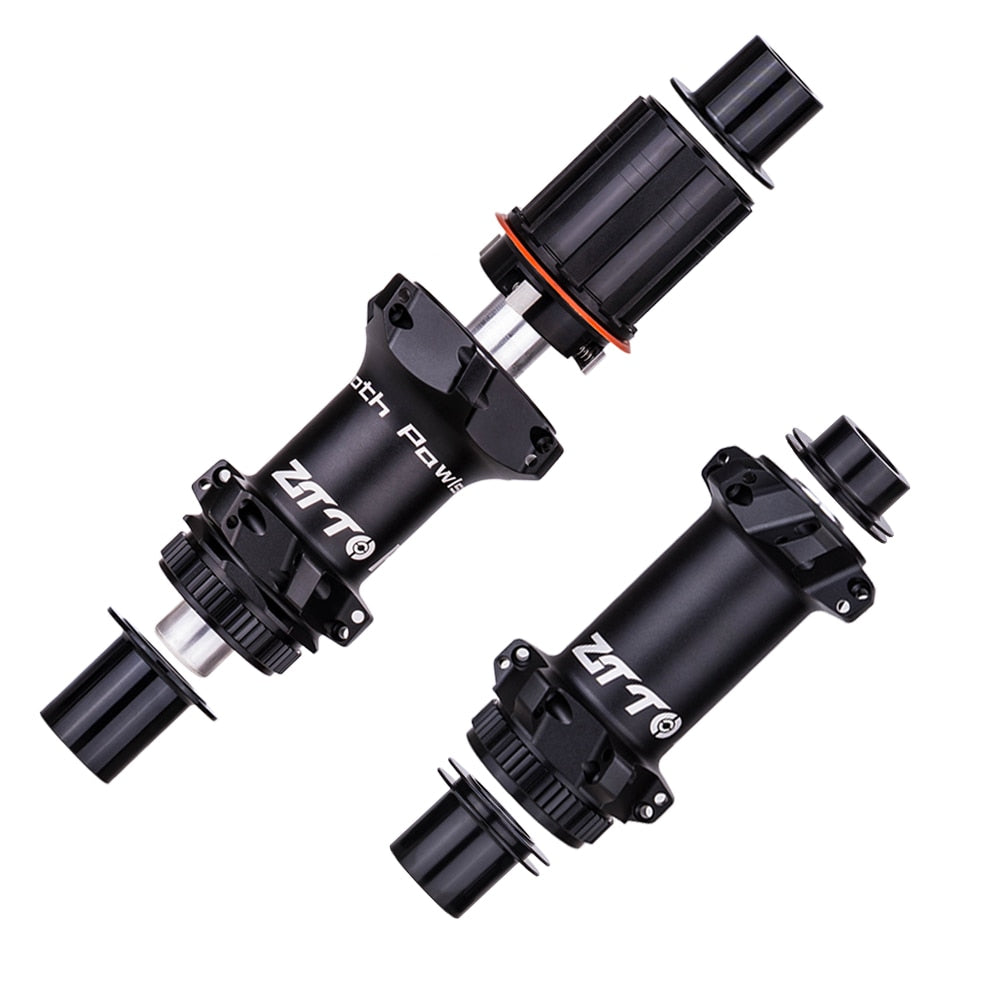

XDR/ HG-11/ CP compatible

You can install any Road bike Cassette with this hub.

if you need to install 8/9/10 speed HG standard cassette, you need add a 1.8mm spacer.

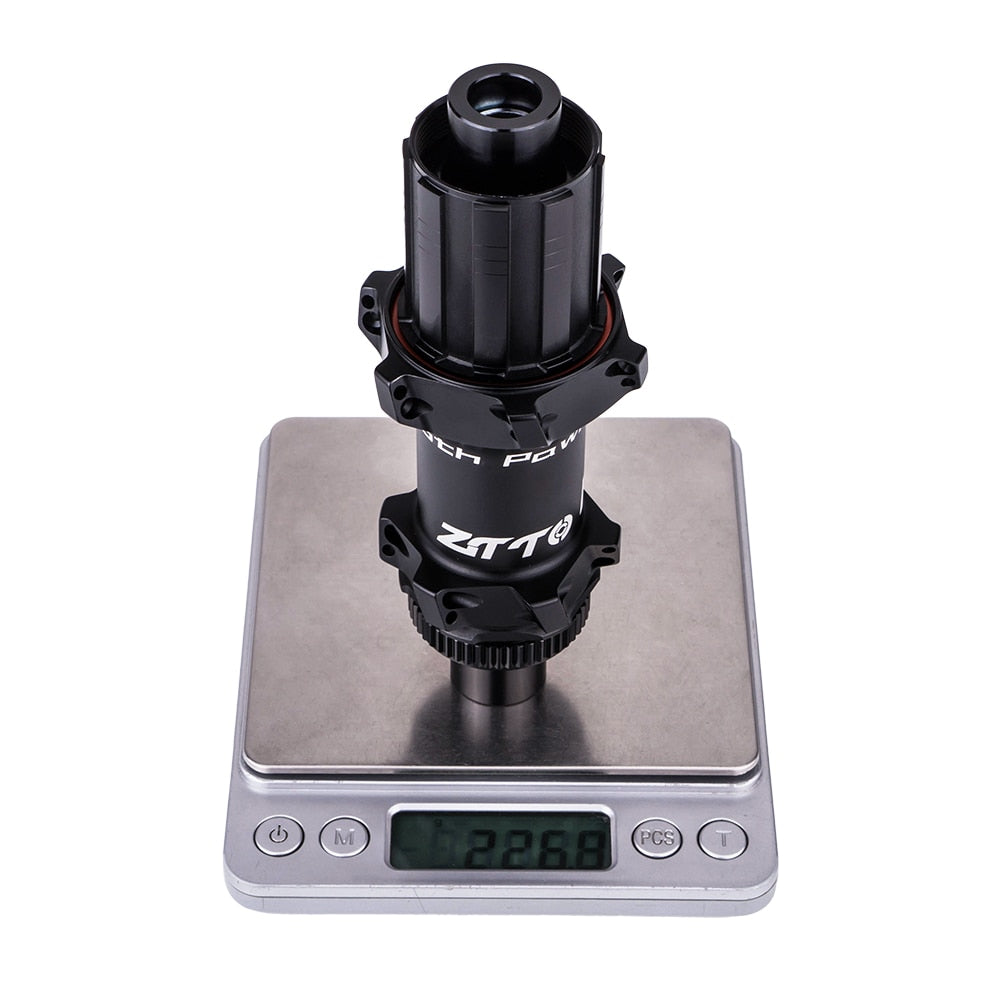

Weight:

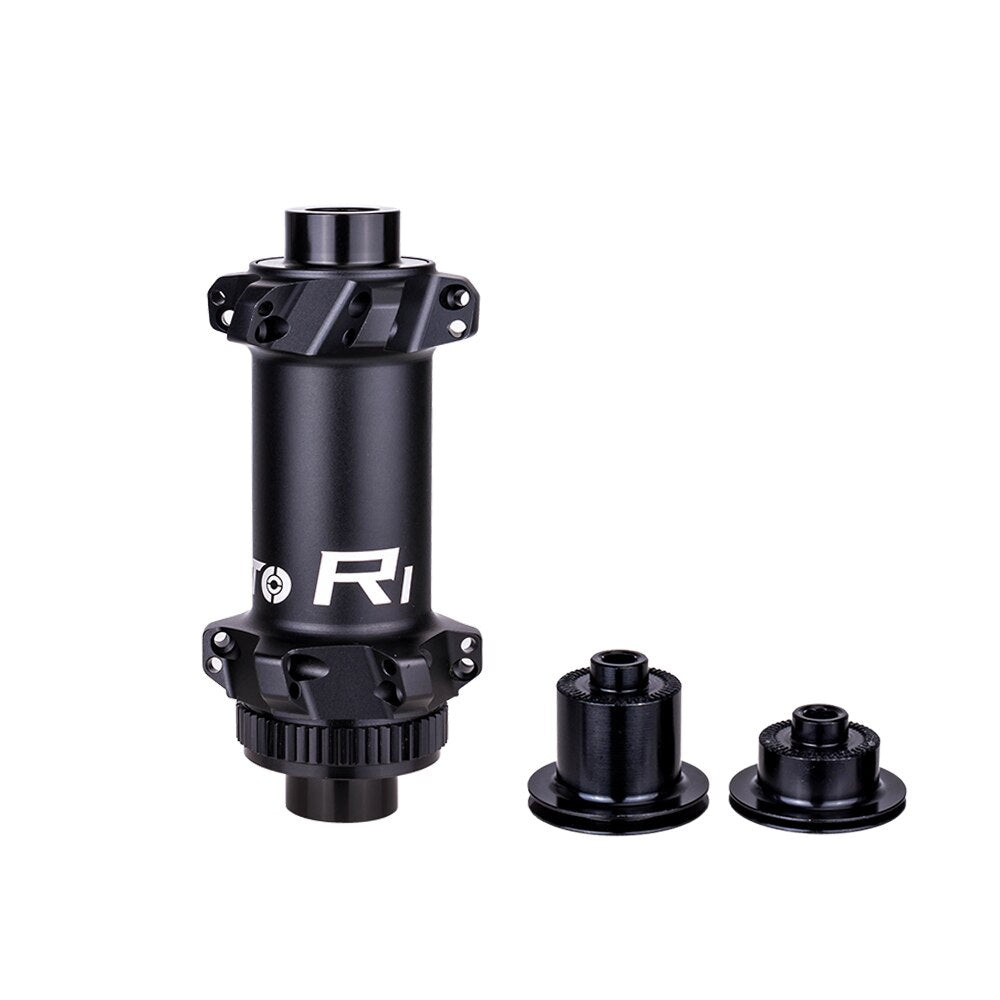

Front-Hub with 12x100 end caps about 107g ;
Rear-Hub with 142x12 end caps :
about 212g(XDR )/ 226g(HG-11)/220g(CP) /

Ultralight

about 335g for pair. Alloy rotor bodies Lightweight and anodized. Super smooth surface finish of the contact area for the high precision, low friction rotary seal.
