ZTTO Ratchet 54T Disc Brake MTB Hub 32H 32 Hole Thru Axle Maza Quick Release XD HG MS Núcleo Eccentric 142x12 135 Sealed Bearing

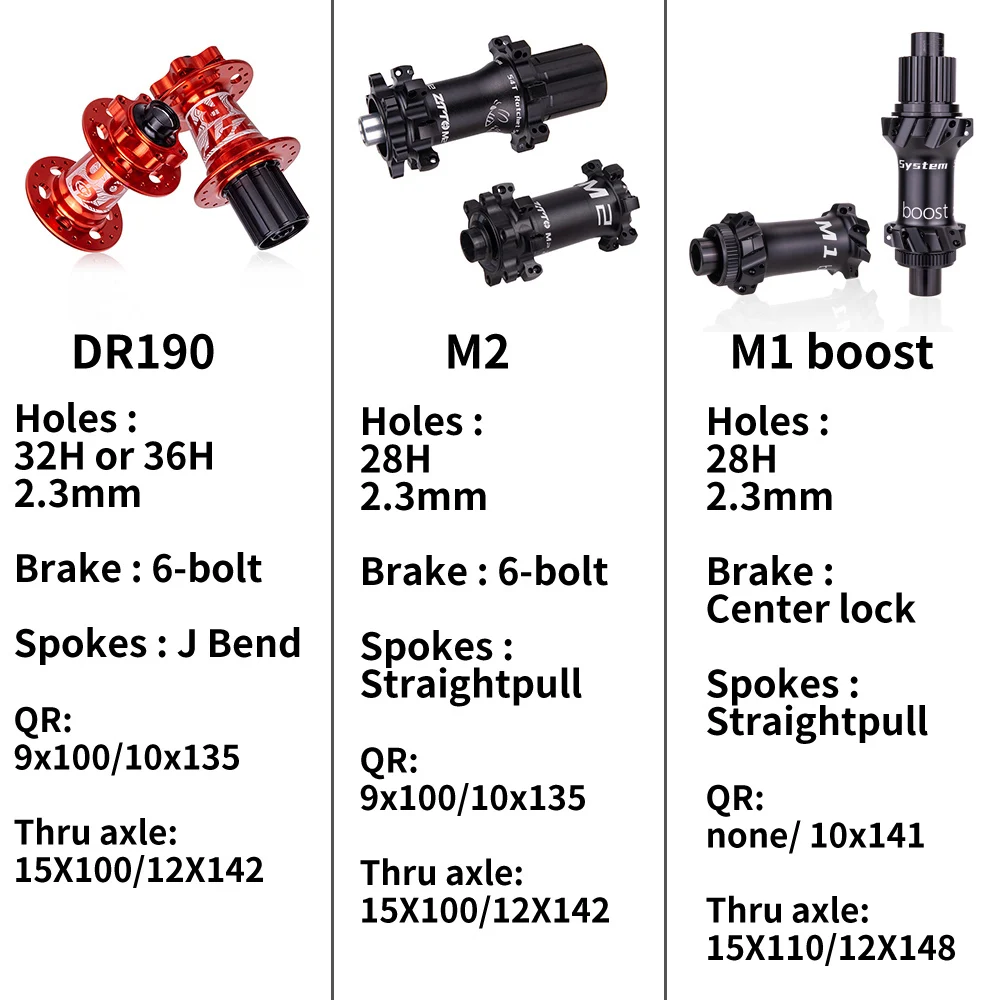

ZTTO MTB Ratchet 32 Holes Sealed Bearing Disc Brake Hub - DR190

54T system

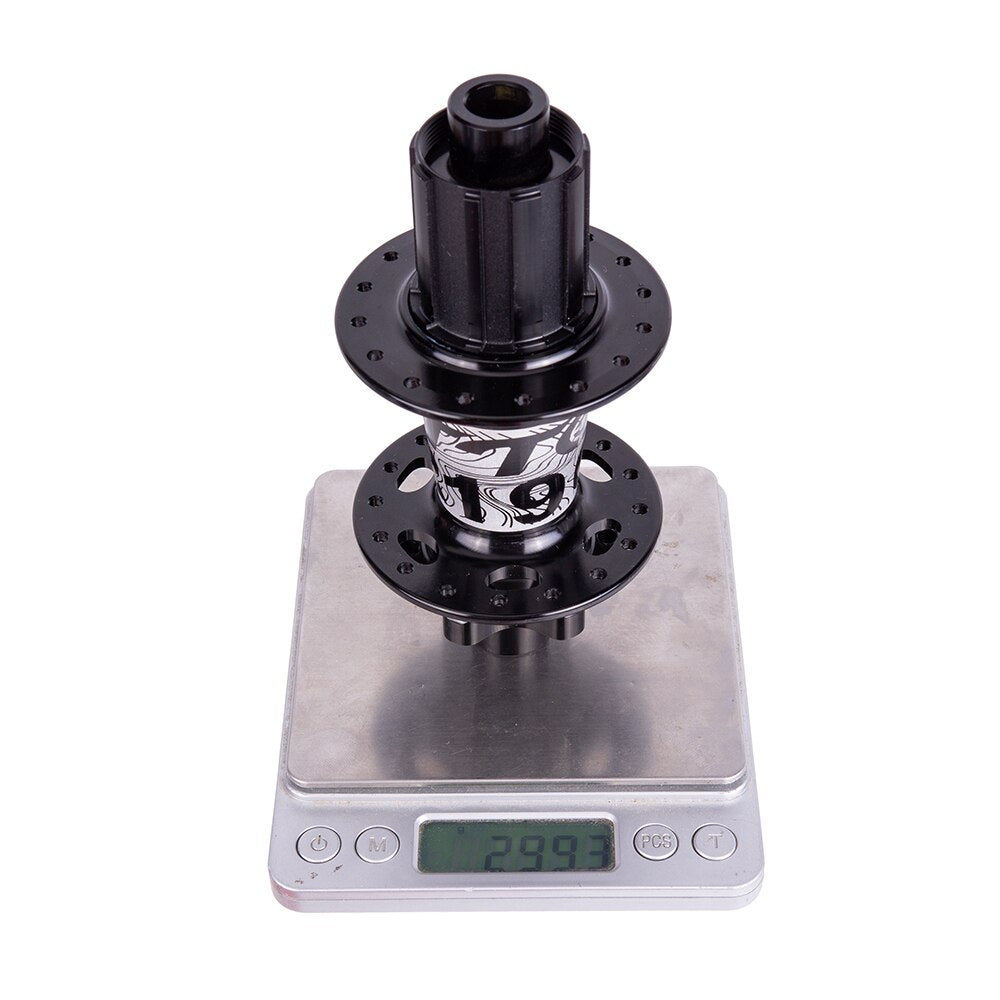

weight:Front-Hub about 190g ; Rear-Hub 290g/270g(XD)

Bearings: Front Hub - 18307  Sealed Bearings*2 ;

Rear-Hub - 6902 Sealed Bearings *4

Material :6082 Aluminum Alloy

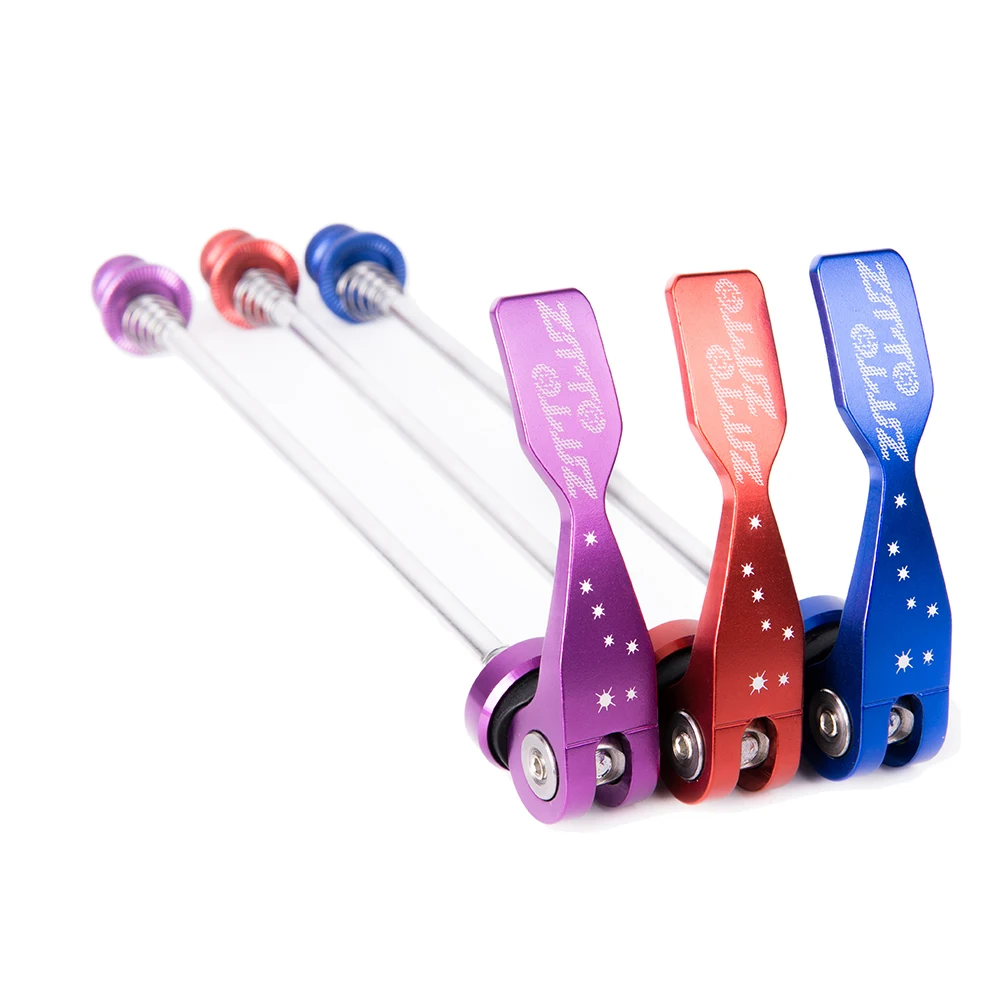

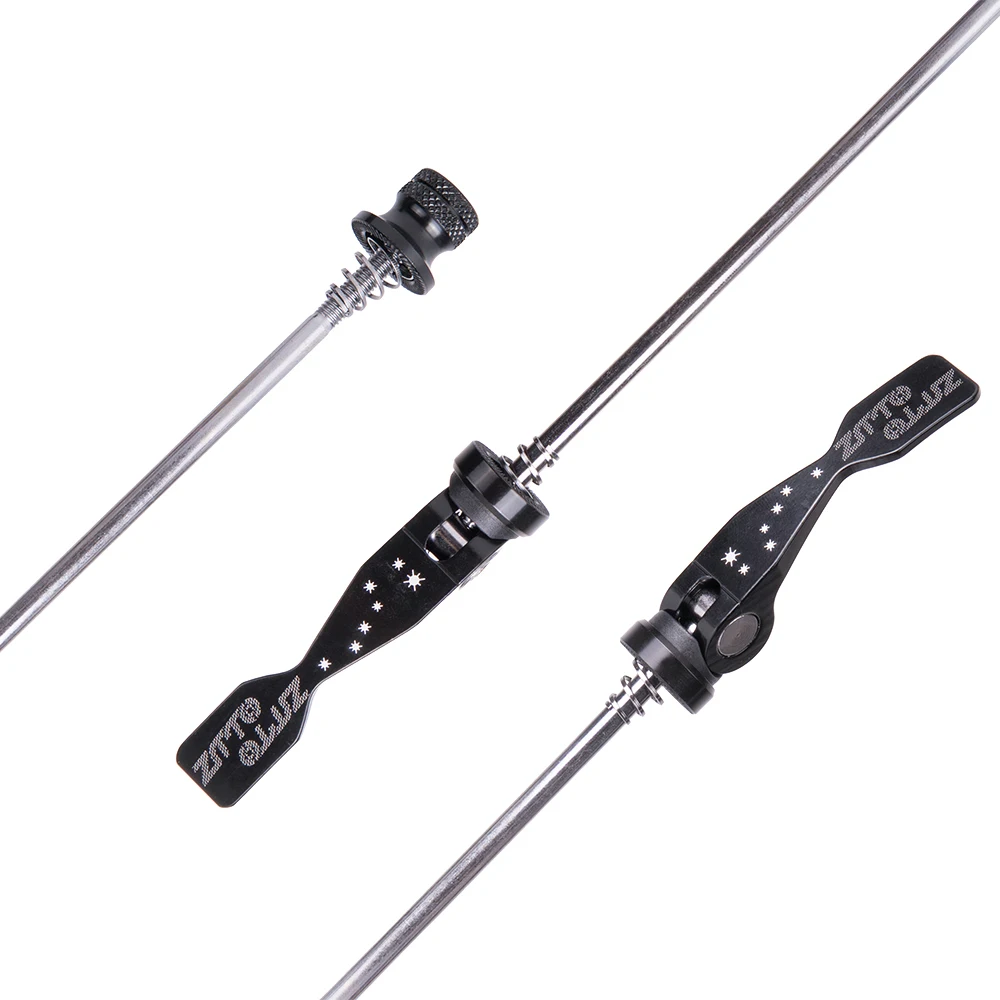

Quick Release Included

Ratchet - 2 Years Warranty !

damage within two years can be replaced by order records. This warranty policy is only valid for our official store order .

Good compatibility.

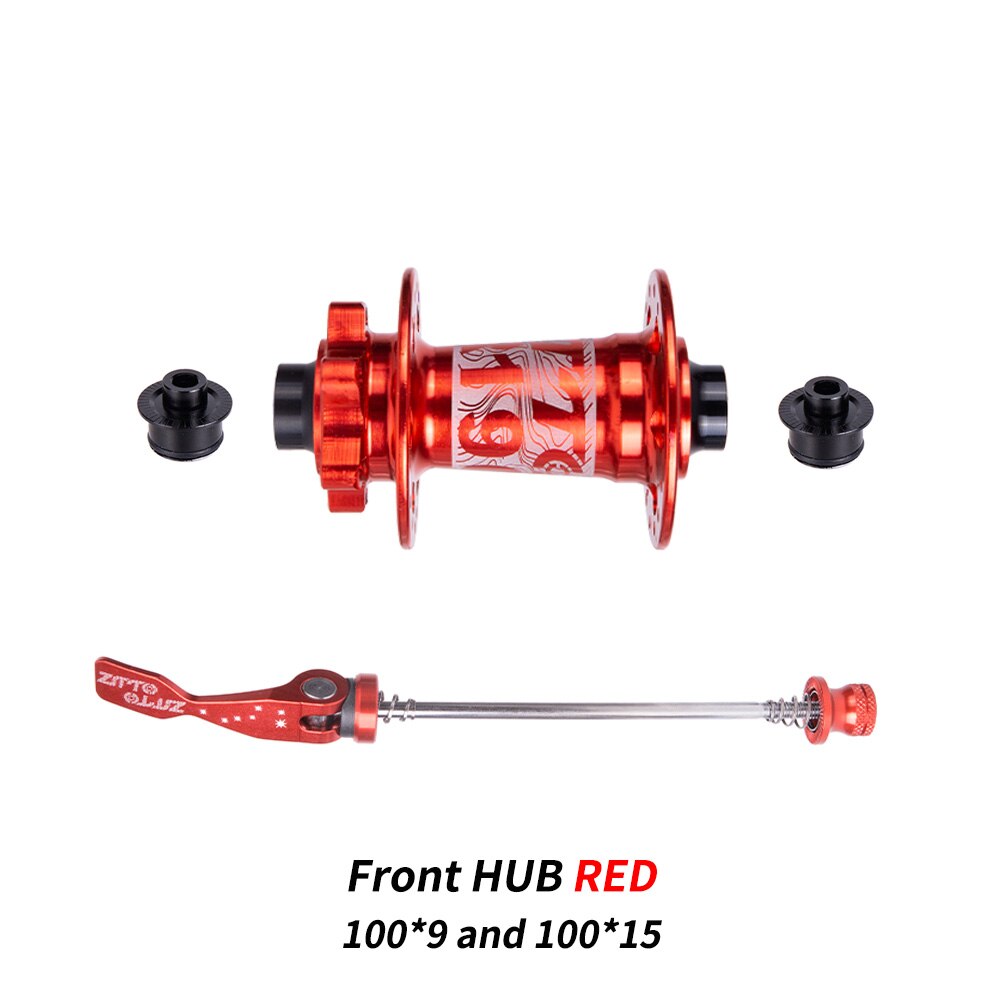

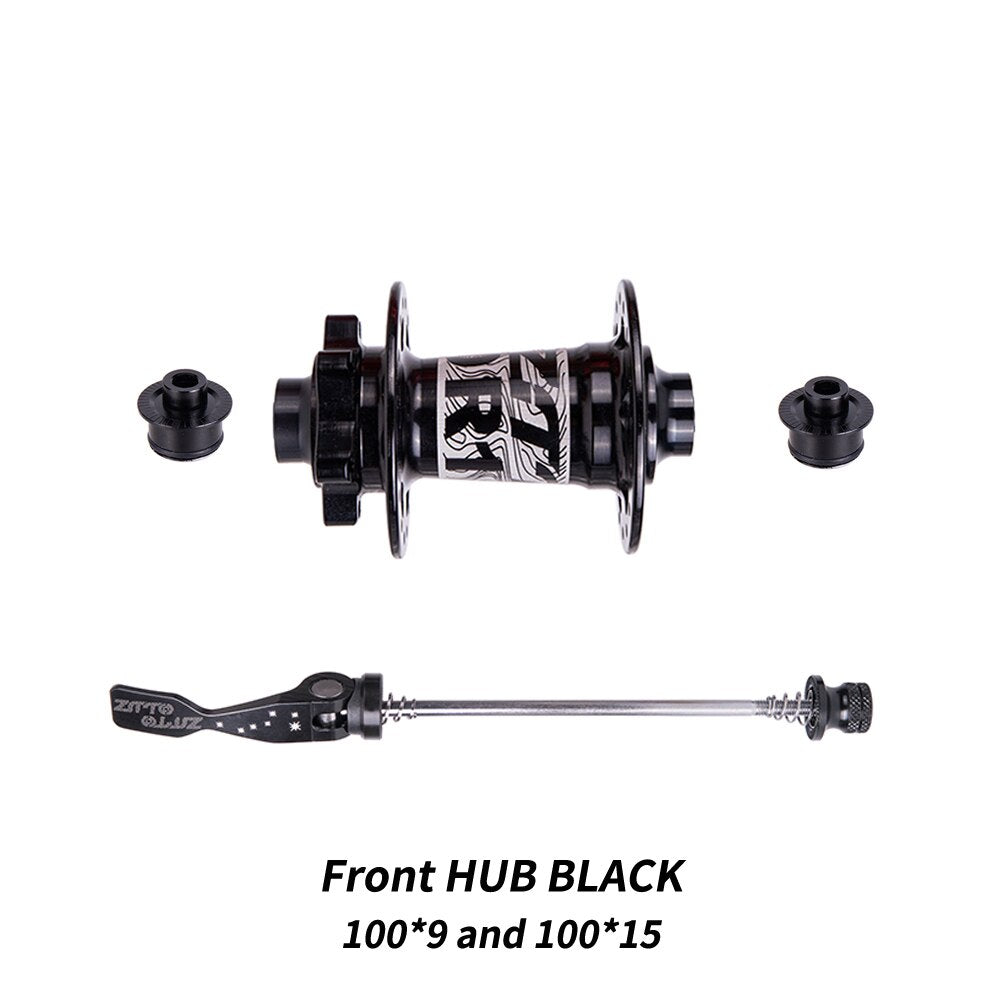

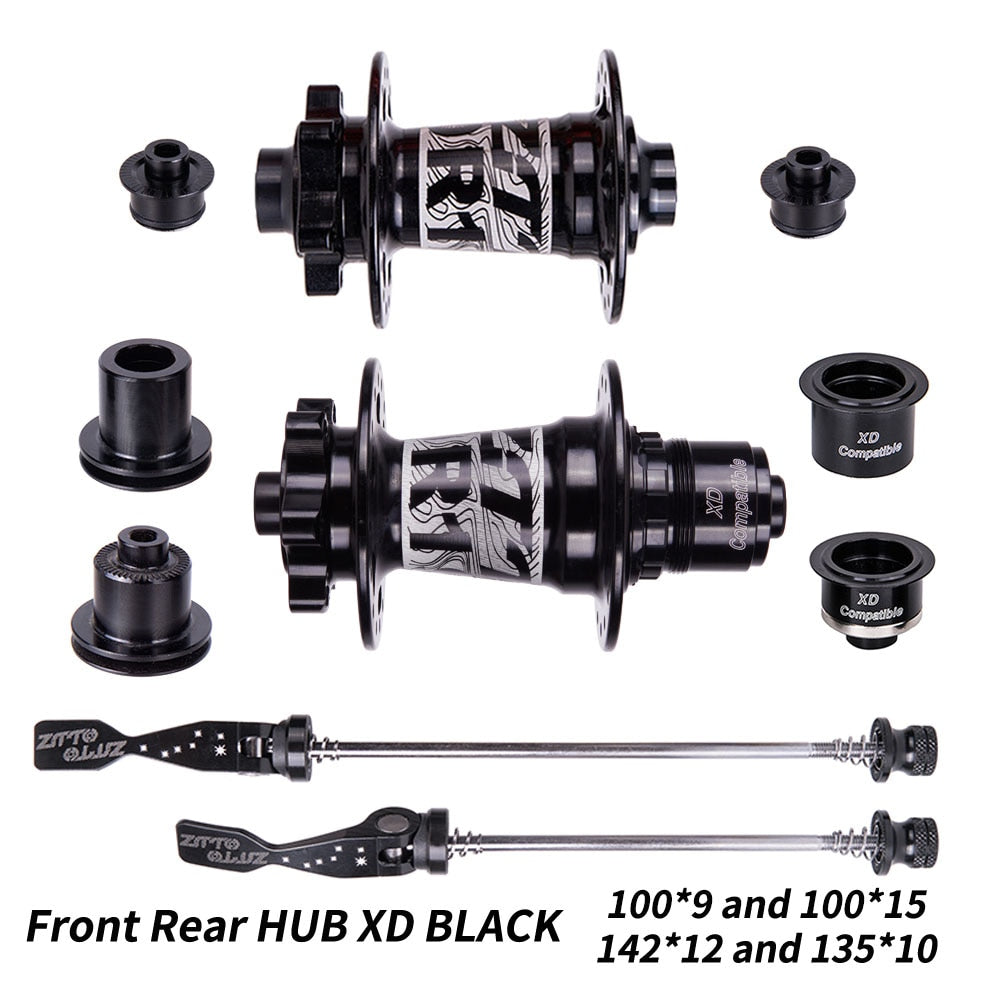

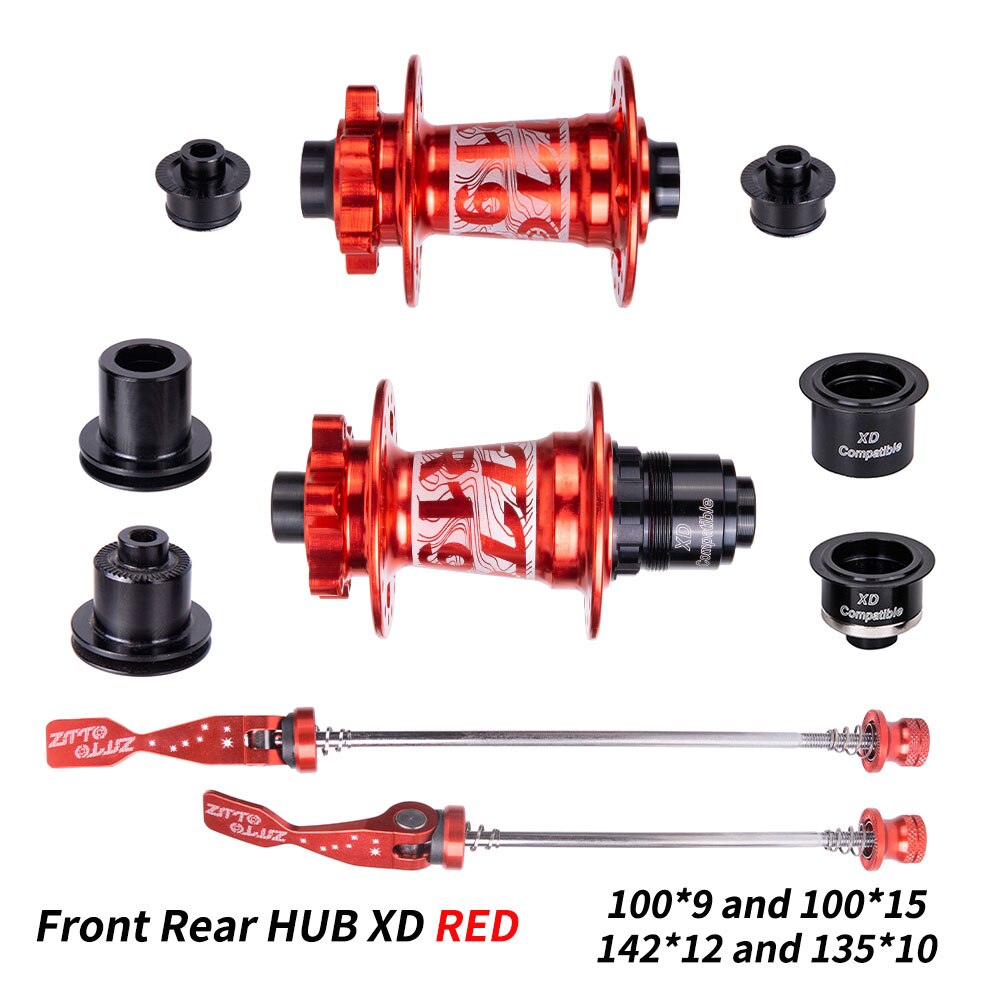

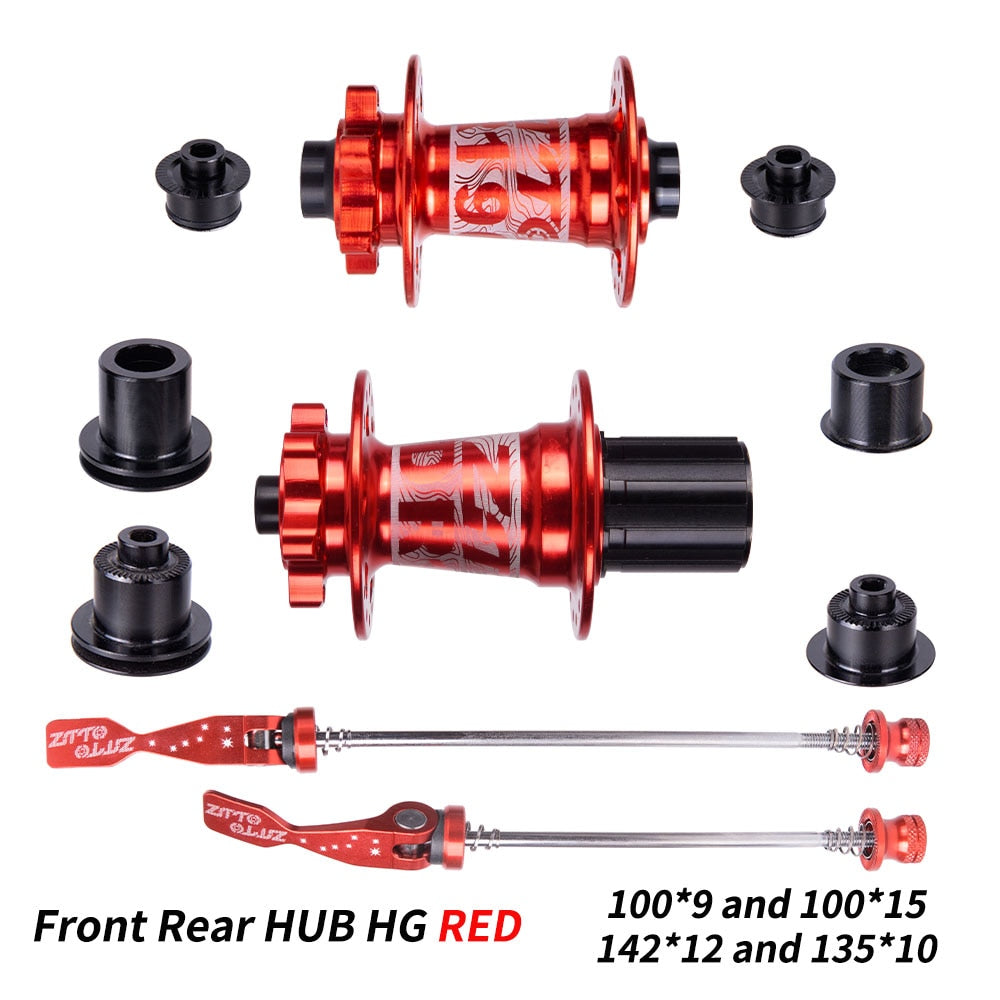

Front Hub for 9x100mm / 15x100mm (you will get 1 hub and 4 plugs, 2 plugs for 9mm; 2 plugs for 15mm)

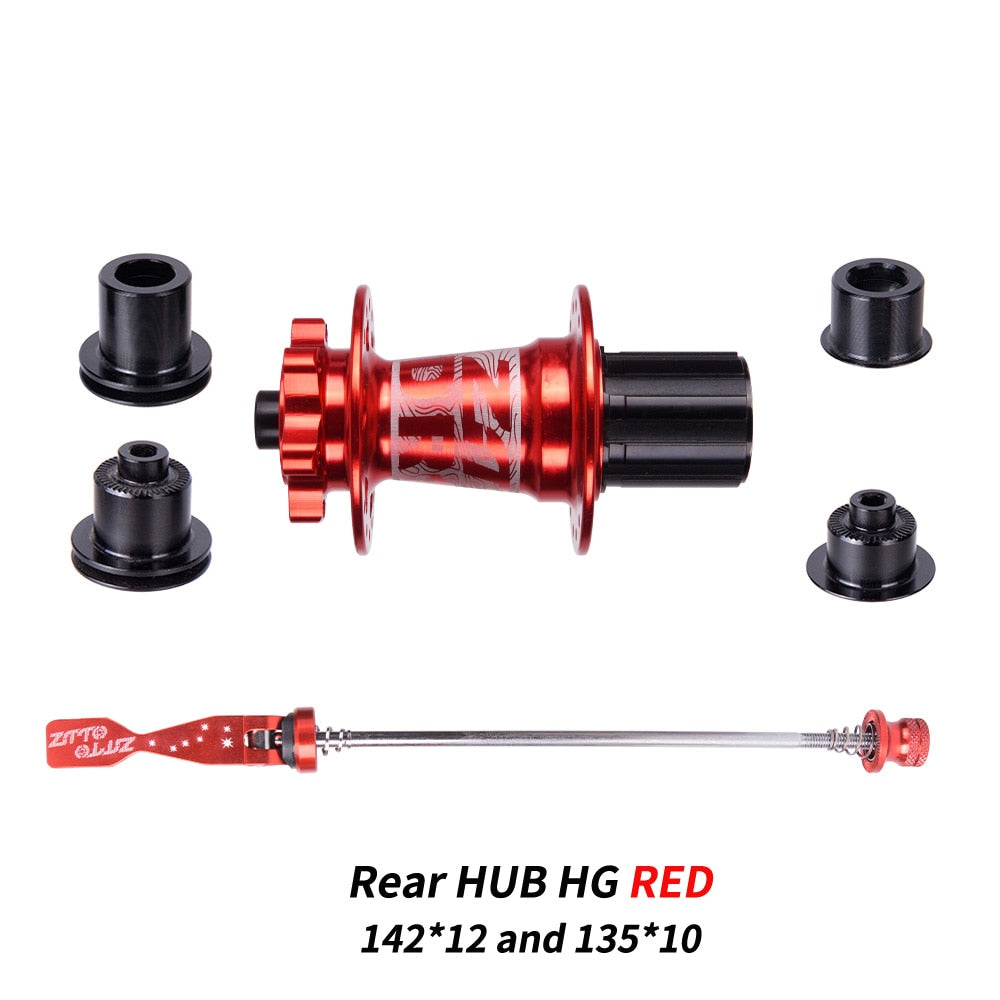

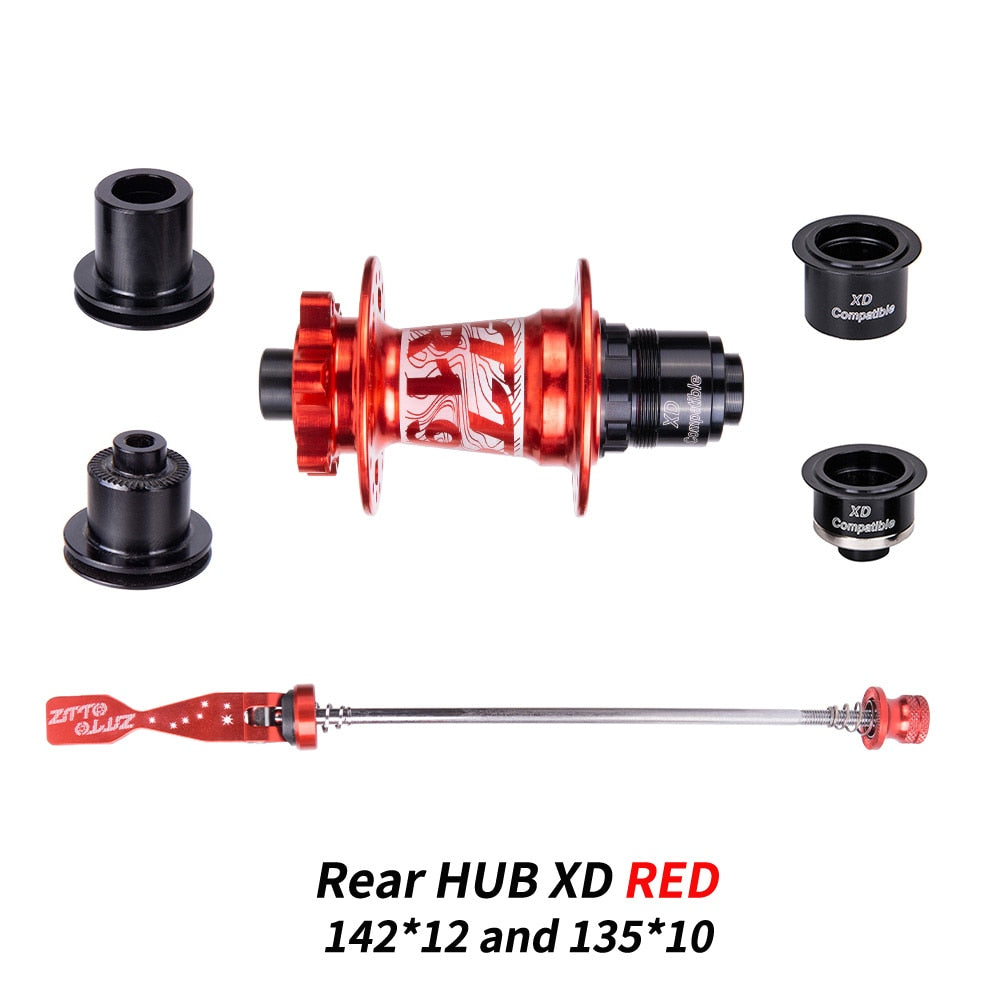

Rear Hub for 10x135mm / 12x142mm (you will get 1 hub and 4 plugs, 2 plugs for 10mm; 2 plugs for 12mm)

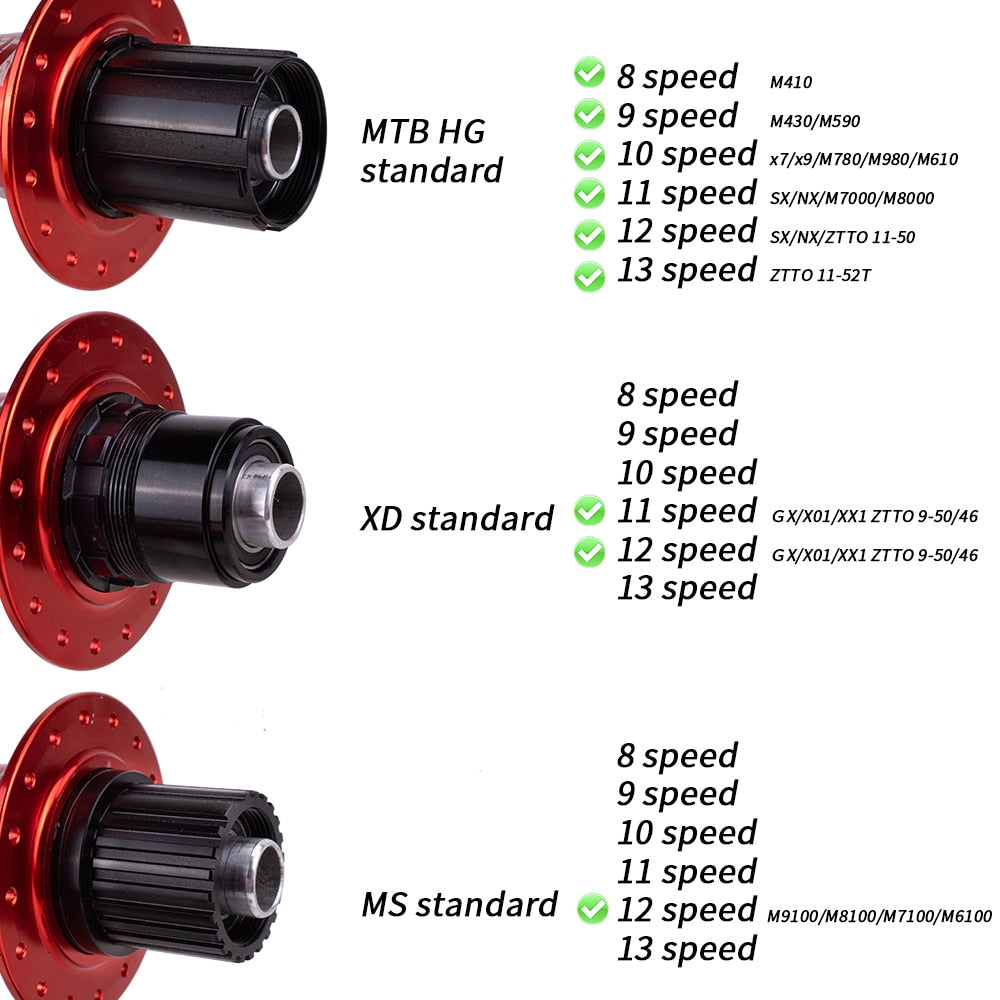

All cassette compatible

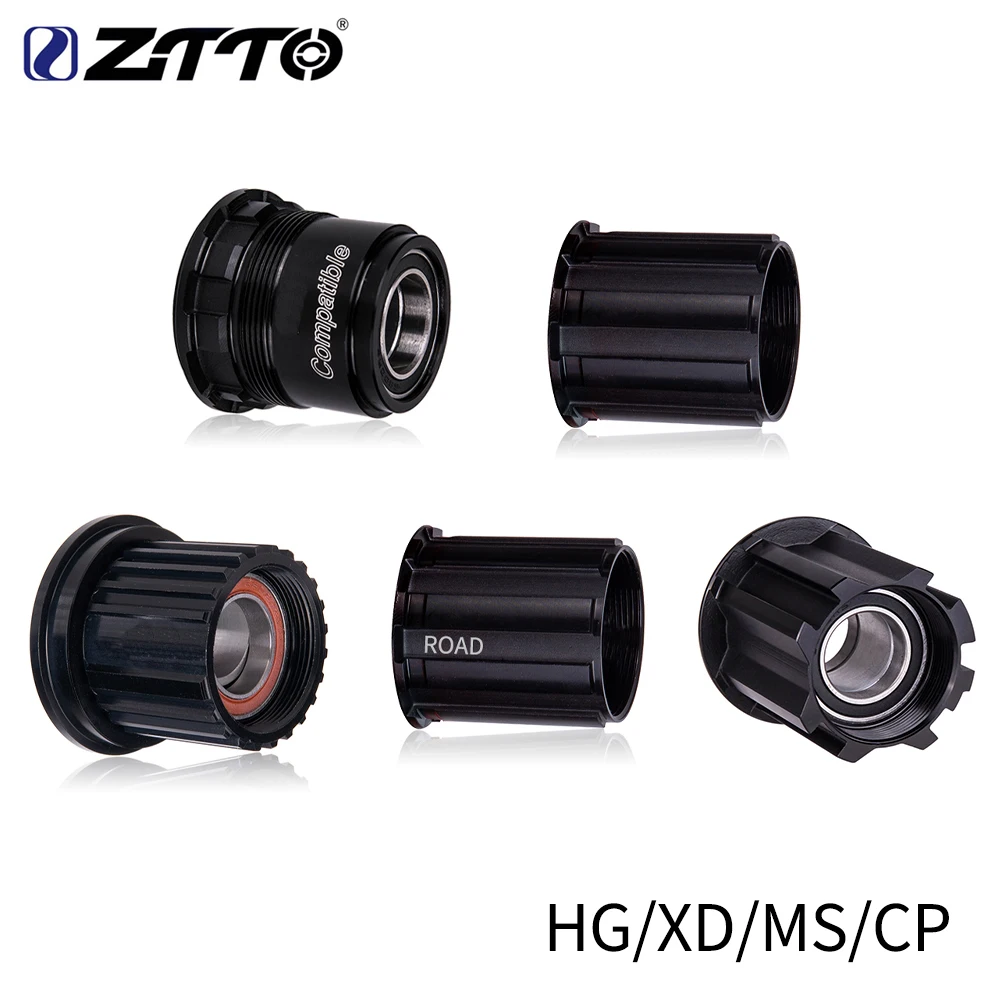

The rear hub has XD/HG/MS optional . if you need road bike 11speed HG or CP hub body, please contact us and mark on your order.

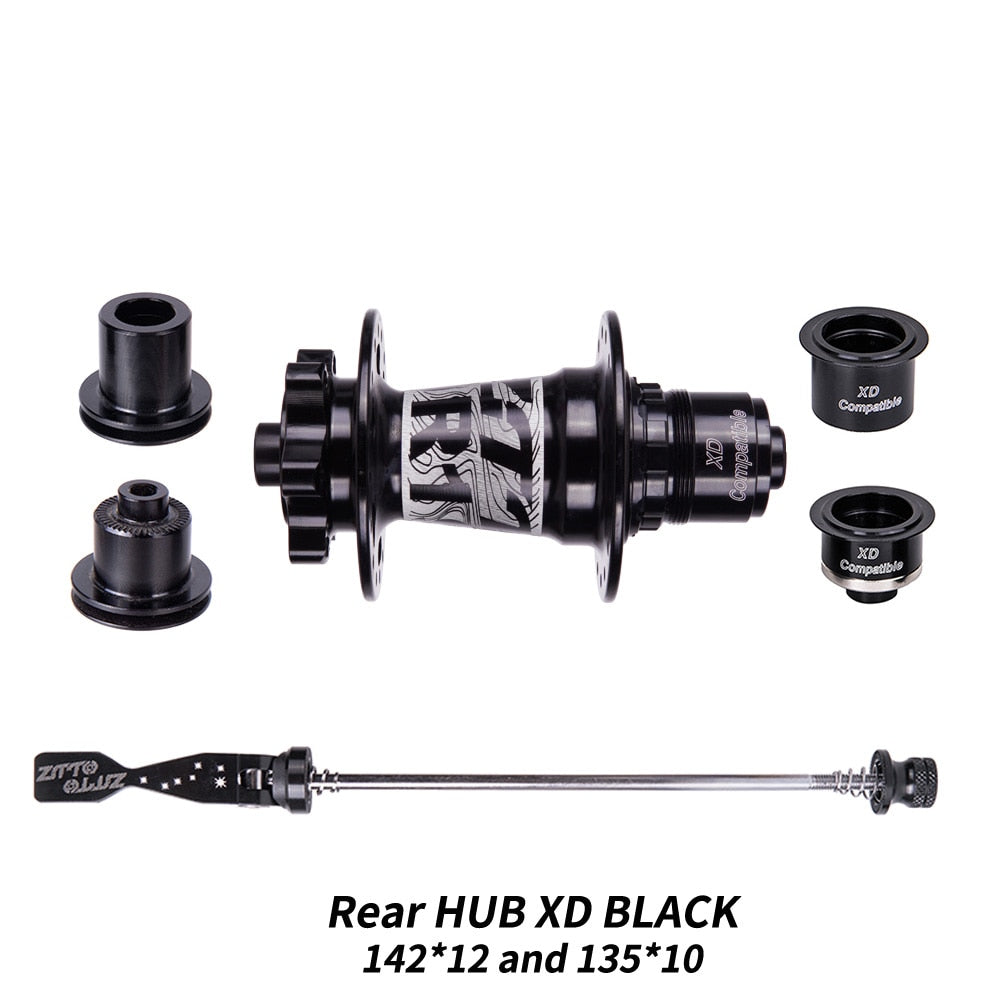

XD for 11 and 12s GX/XO1/XX1

Cassettes: CS-XG-1150-A1 / CS-XG-795-A1 / CS-XG-795-A1 / CS-XG-1195-A1 / CS-XG-1175-A1 / CS-XG-1295-A / CS-XG-1299-A1 / CS-XG-1199-A1 / CS-XG-1275-A1 / CS-XG-1295-A2 / CS-XG-1299-A2 / ZTTO 9-50T

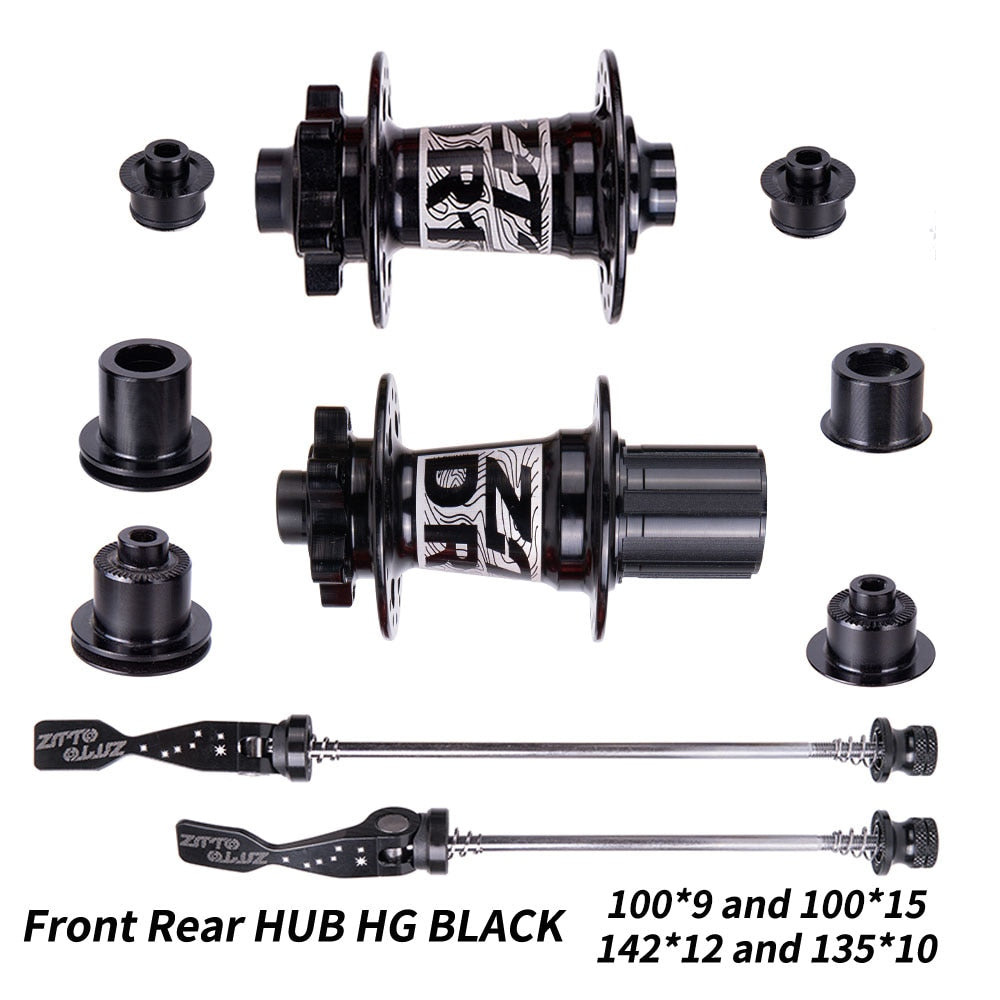

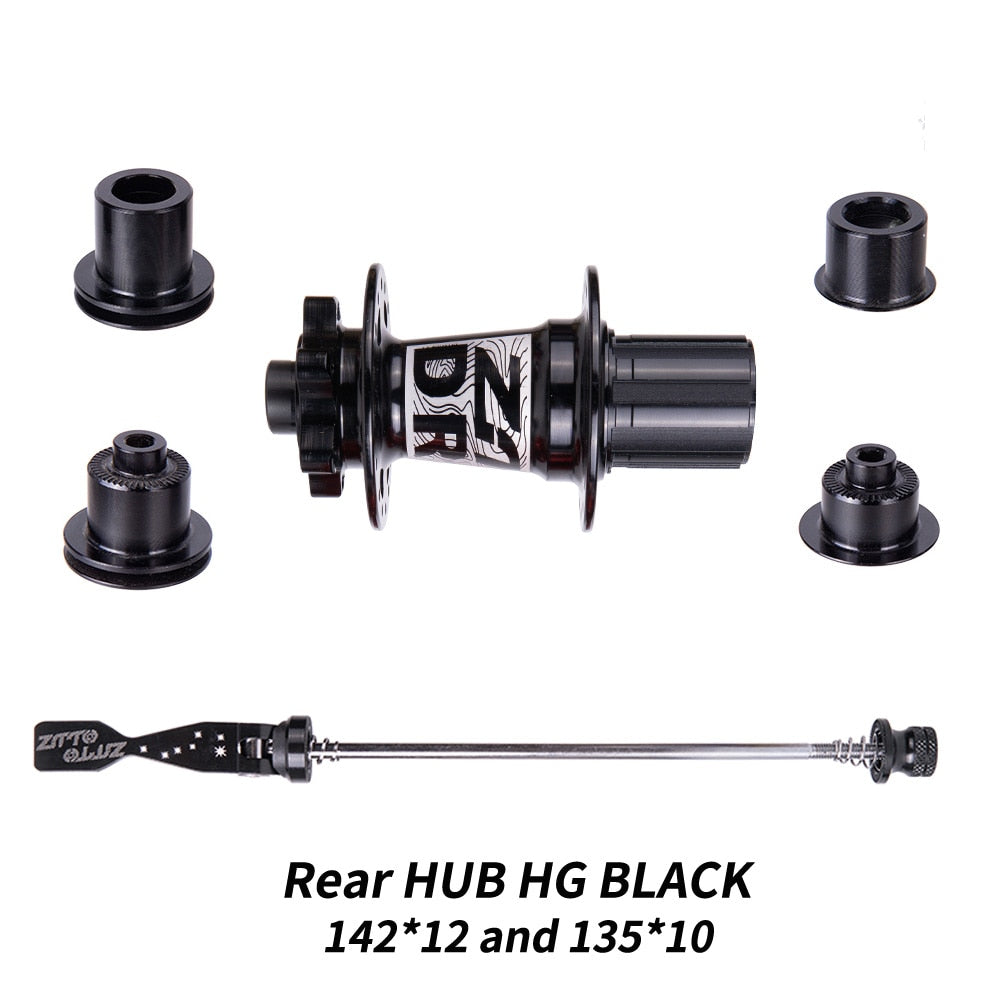

HG for M6000/M7000/M8000/SX/NX

Most of MTB cassettes 7-11 speeds cassette.
11 speed cassettes : M6000~9000 series. CS-PG-1130-A1,
12 speed cassettes: CS-PG-1210-A1 / CS-PG-1230-A1.
(When using a 7-speed cassette, a 4.5mm spacer is required.)

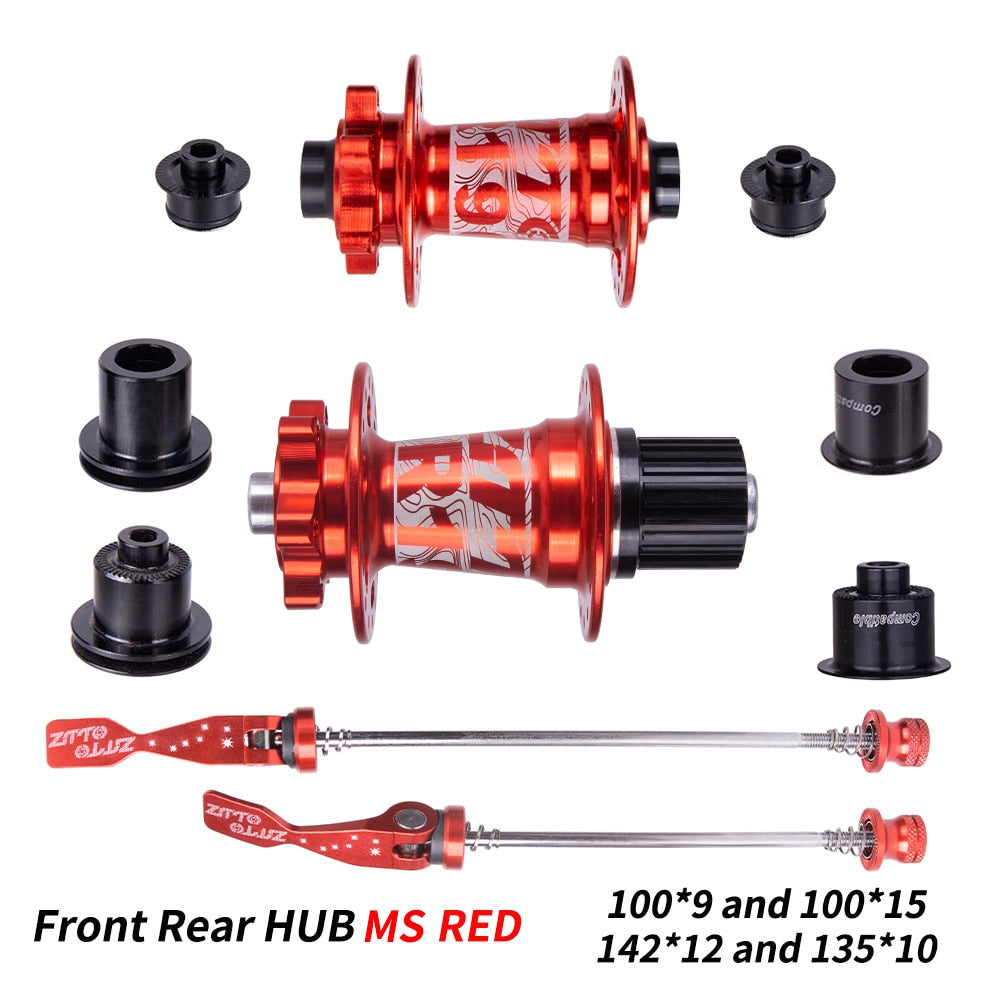

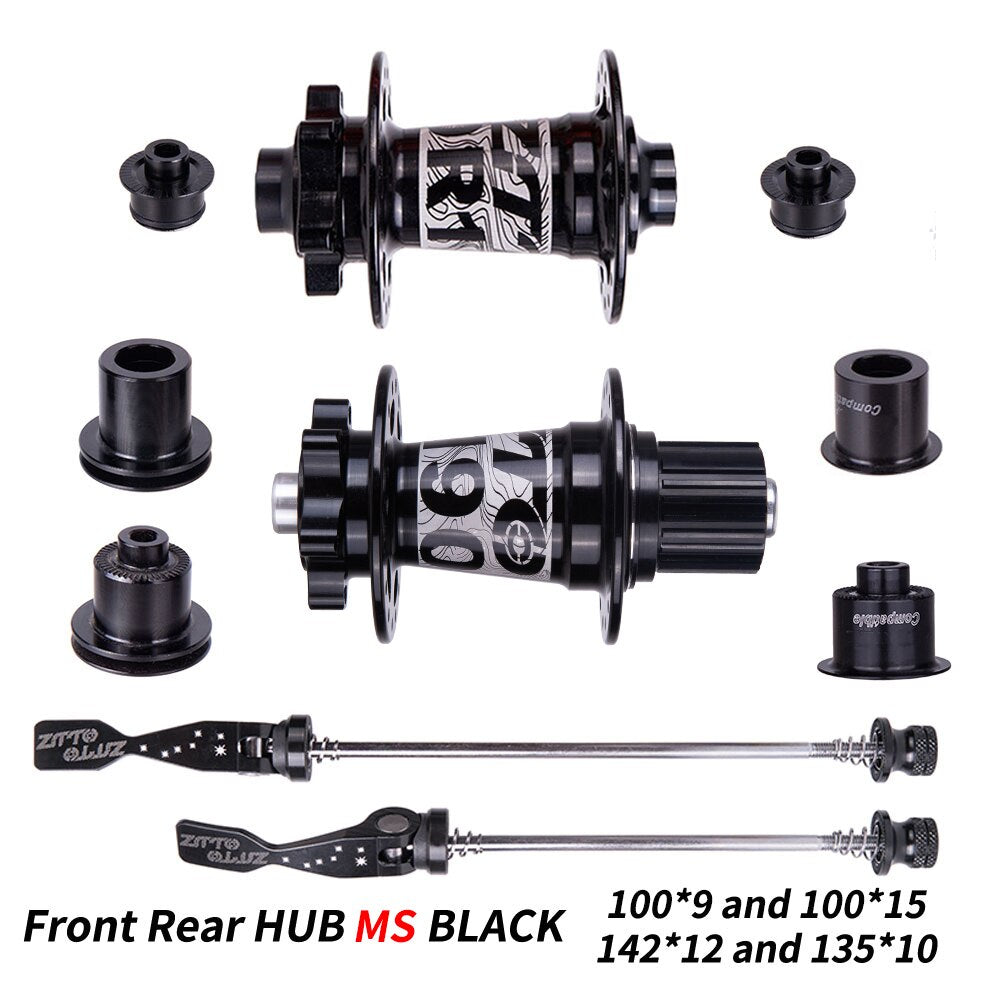

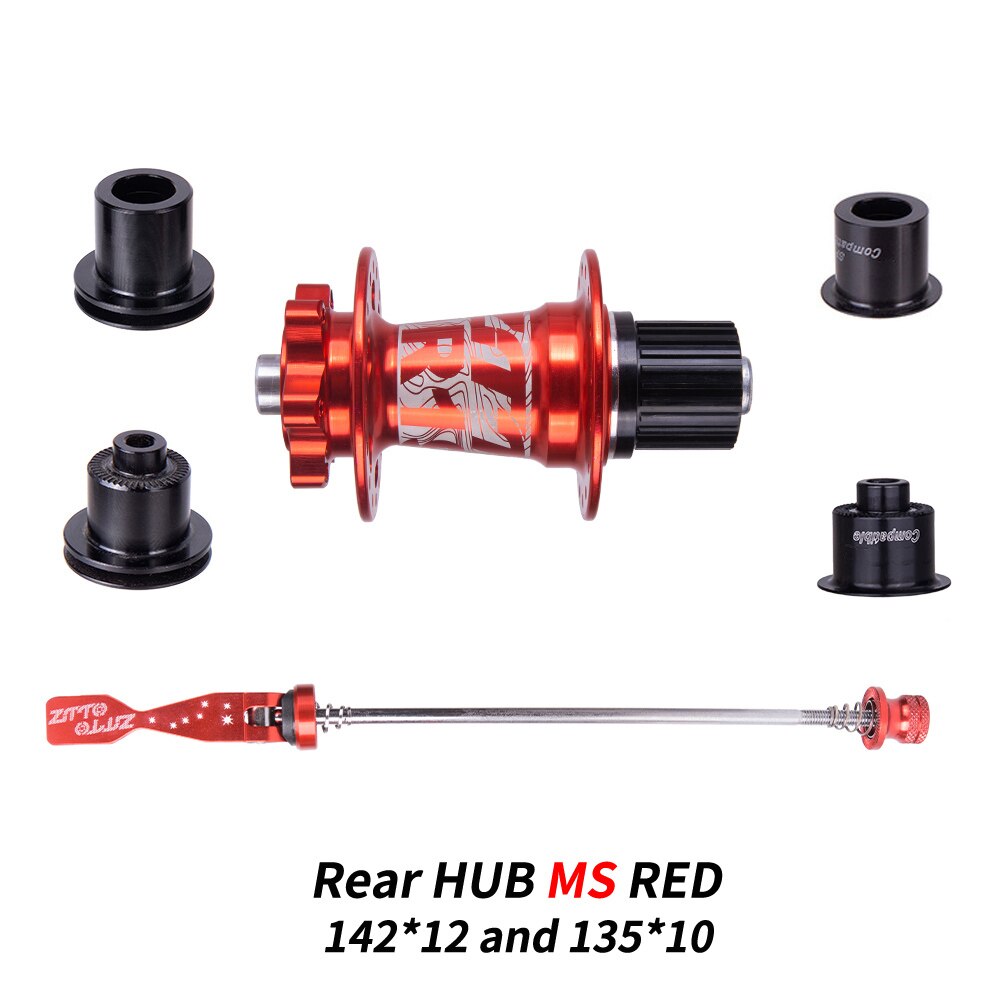

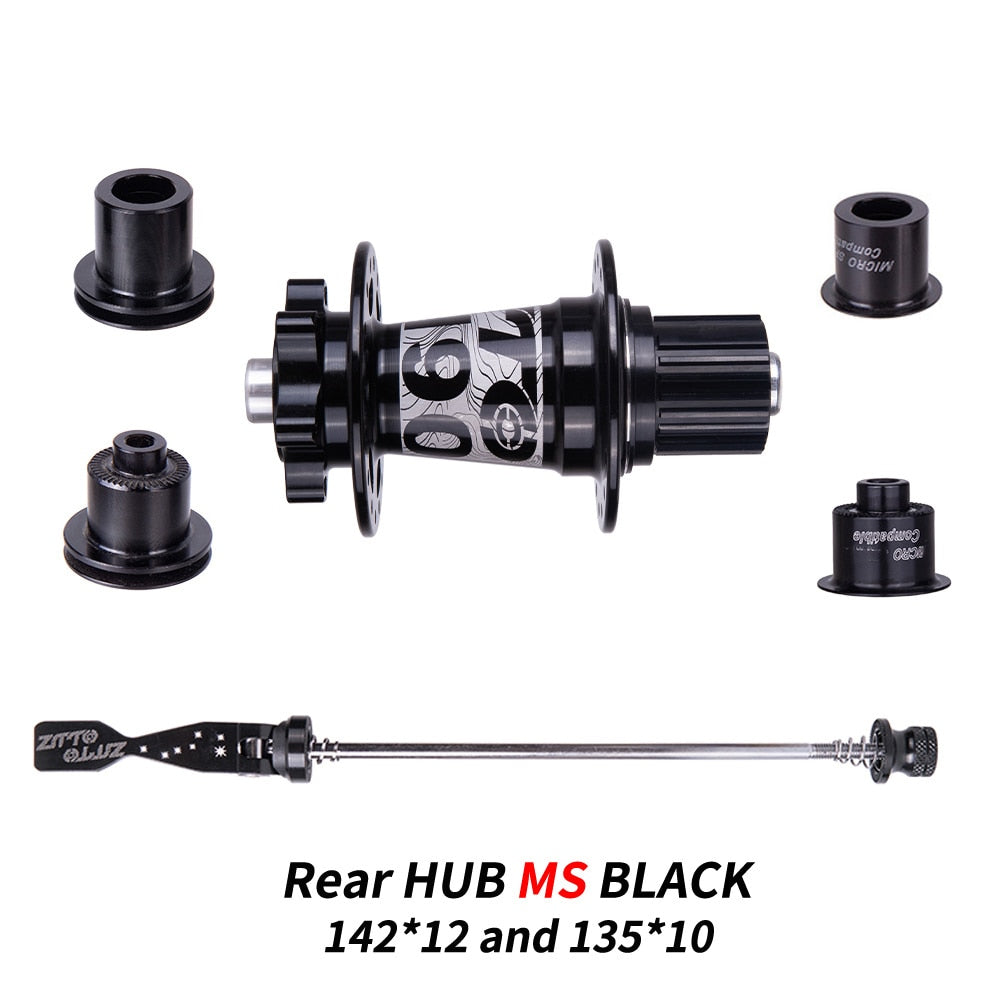

MS for M9100/M8100/M7100/M6100

Cassettes: CS-M9100-12 / CS-M8100-12 / CS-M7100-12

54T System

The best system to transfer torque at the lowest weight.

54 T / 6.6° engagement

Excellent workmanship

Alloy rotor bodies Lightweight and anodized. Super smooth surface finish of the contact area for the high precision, low friction rotary seal.

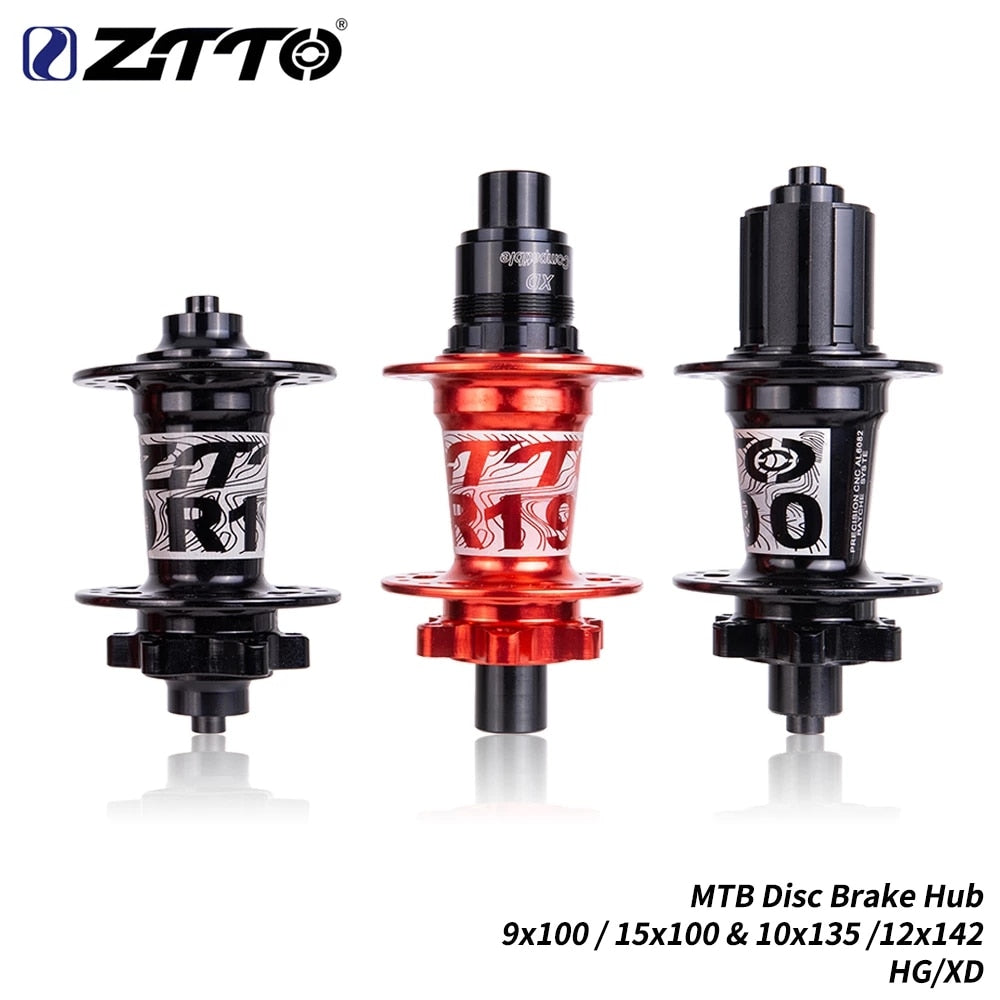

QR and Thru axle compatible

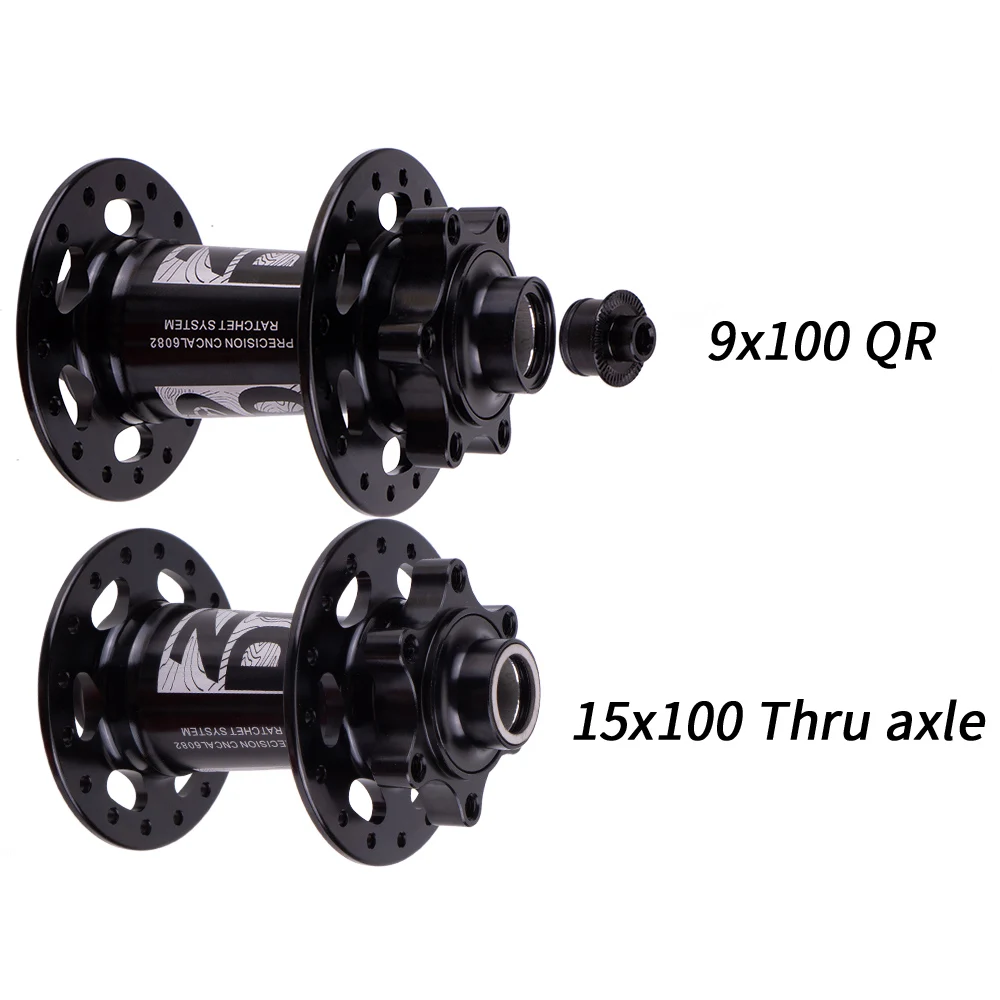

9x100 / 15x100
10x135 / 12x142
we are making a boost 148 and 110 hub, it will be coming soon. for now you can use boost adapter to fit your frame.
